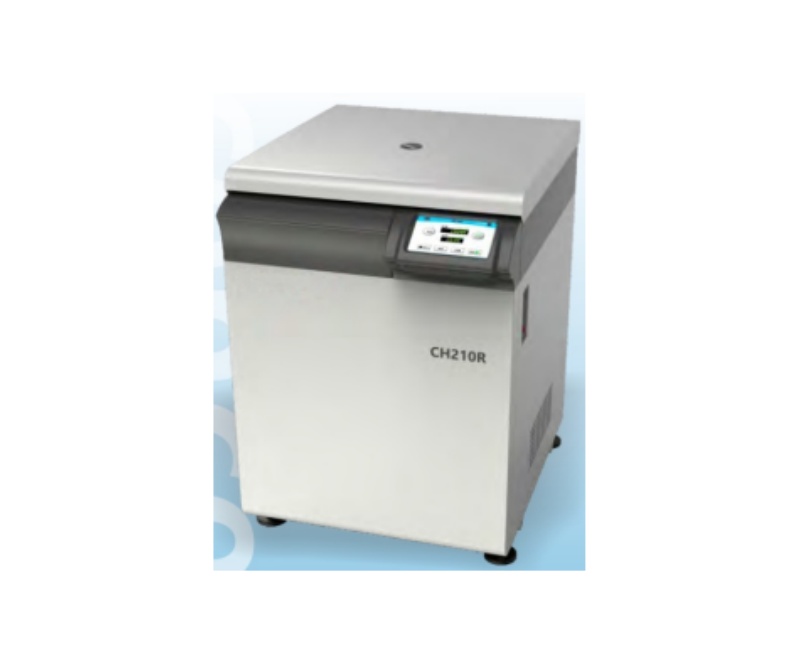

WME CH210R Large Capacity High Speed Refrigerated Centrifuge
CH210R adopt the latest VF compressor with PID dynamic intelligent temperature control technology (Patent No:zl201922274761.7) and dual channel frequency conversion refrigeration system (Patent NO.zl201922269242.1). It's top level in the world,meet customers’ high-precision temperature control experiments and protect temperature sensitive samples.It is the first choice for molecular biology, protein, DNA.RNA, cell separation and clinical medicine.
PRODUCT DETAILS
Product advantages
* 7-inch HD touch screen, Setting parameters and running parameters at a glance.
* Input the value directly by touch screen for parameter setting , which is fast and convenient.
* According to the time interval of the experiment, the sleep time of the instrument cabe set (user-defined, which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
* Pre-cooling function available. pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance, so the experiment can be carried out once entering the laboratory to save time.
*100 user-defined program groups can be set and named easily. which is more convenient to call and distinguish different experiments in use, so as to realize the repeatability of the experiment.
* Up to 5 groups of programs can be selected to realize step centrifugation, so that the experiment can be carried out in multiple steps at one time.
* 11 Acceleration and 12 Deceleration rates, to achieve best centrifugal effect.
* The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
Technical parameter
Order NO | 0202253015 | |||
Max Speed | Angle Rotor | 21000r/min | Swing Rotor | 4200r/min |
Max RCF | Angle Rotor | 32752xg | Swing Rotor | 3860xg |
Max Capacity | Angle Rotor | 6x100ml | Swing Rotor | 4x750ml |
Speed Accuracy | ±10r/min | |||
Time Setting Range | 1s~99min59s/1min~99h59min/1s~99h59min59s | |||
Timing mode | Start timing,speed timing,continuous timing | |||
Temperature Setting Range | -20~40℃ | |||
Temperature Accuracy | Max speed temperature controlled to 4℃,+0.5℃ | |||
Pre-cooling function | Yes | |||
Compressor Unit | VF compressor unit(R134a) | |||
Noise | ≤65dB(A) | |||
Short Spinning | Yes | |||
Rotor Identification | Yes | |||
Power Supply | AC 220+22V 50/60Hz | |||
Power Consumption | 1.6kW | |||
Dimension(W*D*H) | 590x740x850(mm) | |||
Packing Dimension(W*D*H) | 750x880x1200(mm) | |||
Net Weight | 180kg | |||
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 12x1.5/2.2ml Max Speed:21000r/min Max RCF: 30642xg Order No:0301805020 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x15ml((conical) Max Speed:14000r/min Max RCF:21913xg Order No:0301891142 Adapter:5ml(conical) |
| Rotor Type: Angle Rotor Max Capacity: 20x10ml Max Speed:14000r/min Max RCF: 21480xg Order No: 0301891296 Adapter:1.5ml、5ml |
| Rotor Type: Angle Rotor Max Capacity: 6x30ml Max Speed:15000r/min Max RCF: 23120xg Order No:0301891095 Adapter:5ml、10ml |
| Rotor Type: Angle Rotor Max Capacity: 6x50ml Max Speed:13500r/min Max RCF: 19354xg Order No:0301805420 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 6x50ml(conical) 50ml round bottom adapter as gift Max Speed: 13000r/min Max RCF: 17947xgOrder No:0301805930Adapter: 15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity:12x5ml Max Speed:16500r/min Max RCF: 19166xg Order No:0301891235 Adapter: 0.5ml、1.5ml |
| Rotor Type: Angle Rotor Max Capacity: 30x1.5/2.2ml Max Speed:16000r/min Max RCF: 28918xg Order No:0301812510 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 48x1.5/2.2ml Max Speed:15000r/min Max RCF: 24663xg Order No:0301812830 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity:6x100ml Max Speed: 10000r/min Max RCF: 11960xg Order No: 0301891099 Adapter:5ml、10ml、25ml. 15ml(conical/round)、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity: 24x1.5/2.2ml Max Speed:18500r/min Max RCF:32752xg Order No:0301891236 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml(conical) 50ml round bottom adapter as gift Max Speed: 11000r/min Max RCF: 14100xg Order No:0301891237 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity:8x50ml Max Speed: 12000r/min Max RCF: 15615xg Order No:0301891253 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml | / | |
| Rotor Type: Swing Rotor Max Capacity: 4xTLDA Max Speed: 2000r/min Max RCF: 926xg Order No:0302891036 |
| Bucket Order No:0303891114 |
| Adapter Order No:0304891279 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF: 3610x9 Max Capacity: 4x500ml Order No:0302850110 (Bucket not included) |
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order No: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml(conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7ml Vaccum blood collection Tube 0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 | | 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 |
| 4x12x15ml (conical/round) 0304891582(conical) 0304891779(round) | ||
| 4x20x10ml 0304891077 |
| 4x31x5/7ml Vaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
Microplate bucket Order No: 0303891110 | 4x1x96 Deep-well plate | 4x2x96 Microplate | |||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF:3860xg Max Capacity: 4x750ml Order No:0302891036 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight round bucket Order No: 0303891006 |
| 4x1x500ml(conical/flat) 0304891035(conical) 0304891036(flat) |
| 4x1x250ml(conical/flat) 0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml(conical/round) 0304891003(conical) 0304891004(round) |
| 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml (RIA tube) 0304891166 |
| 4x56x1.5ml 0304891025 | ||
Rectangular Bucket Order No: 0303891002 |
| 4x9x50ml(conical/round) 0304891015(conical) 0304891016(round) |
| 4x19x15ml (conical/round) 0304891012(conical) 0304891704(round) | |
| 4x30x10ml 0304891709 |
| 4x38x5/7ml Vaccum blood Collection tube 0304891017 | ||
Microplate bucket Order No: 0303891147 | 4x2x96 Deep-well plate 4x4x96 Microplate Plate height in totals ≤67mm | ||||
