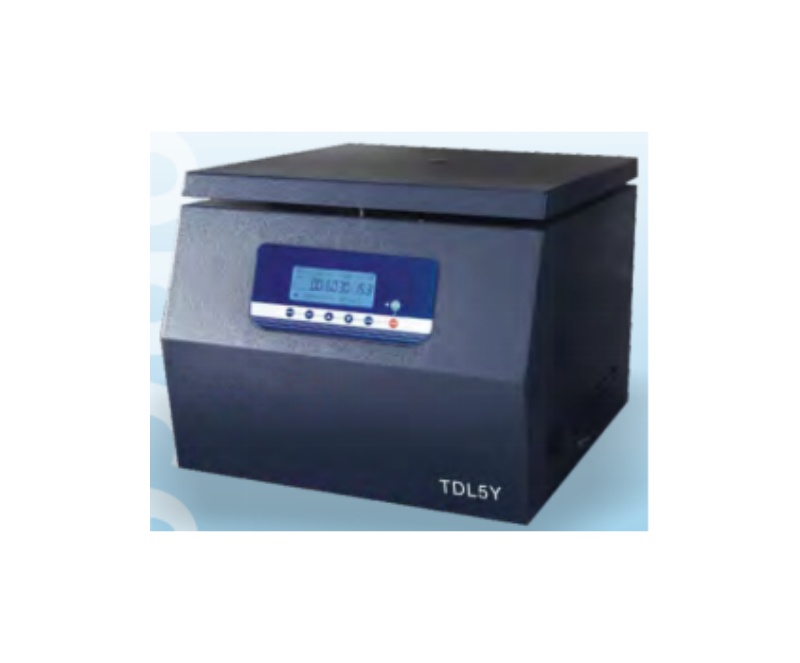

WME TDL5Y Oil Testing Centrifuge
TDL5Y is our stand alone oil testing centrifuge for conical ASTM oil testing tubes. It meets the requirements of GB/T6533-86 standard,and makes use of centrifugal separation to determine the water content of your crude oil
sample. It is an ideal separation equipment for water determination in oil exploitation Industry and scientific research institutions.
PRODUCT DETAILS
Product advantages
* LCD display to show rotor No., speed, time, temperature, RCF, ACC/Dec rate and trouble information/error code.
* Circular heater for fast heating and temperature uniformity realizes the functions of temperature controlling and temperature holding,which meet the temperature requirements for oil industry.
* The tube is manufactured by special process, which won't be broken so easily during operation , and it's widely used in Daqing Oilfield.
* Self-diagnosis system can automatically detect the faults of over-speed, over temperature and display the error code on the display screen to improve the safety performance.
*Simple operation:Microprocessor control and touch panel. Speed, RCF, temperature, time and ACC/Dec rates can be set freely.The parameters can be revised during a run for convenient use.
Technical parameter
Order NO | 0205205000 |
Max Speed | 4000r/min |
Max RCF | 3150xg |
Max Capacity | 4x100ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1~99min |
Temperature Setting Range | room temperature +10℃~70℃ |
Noise | ≤65dB(A) |
Power supply | AC 220+22V 50Hz |
Power Consumption | 1500W |
Dimension(W*D*H) | 520x550x400(mm) |
Packing Dimension (W*D*H) | 772x772x582(mm) |
Net Weight | 85kg |
Rotor parameters
| Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3150xg Max Capacity: 36x10ml Order No:0302851400 | Bucket Order NO:030385301010ml oil tube Order NO:0305540120 |
| Rotor Type: Swing Rotor Max Speed: 1700r/min Max RCF: 691xg Max Capacity: 4x100ml Order No:0302852950 | Bucket Order NO:0303852910100ml oil tube Order NO:0305540110 |
