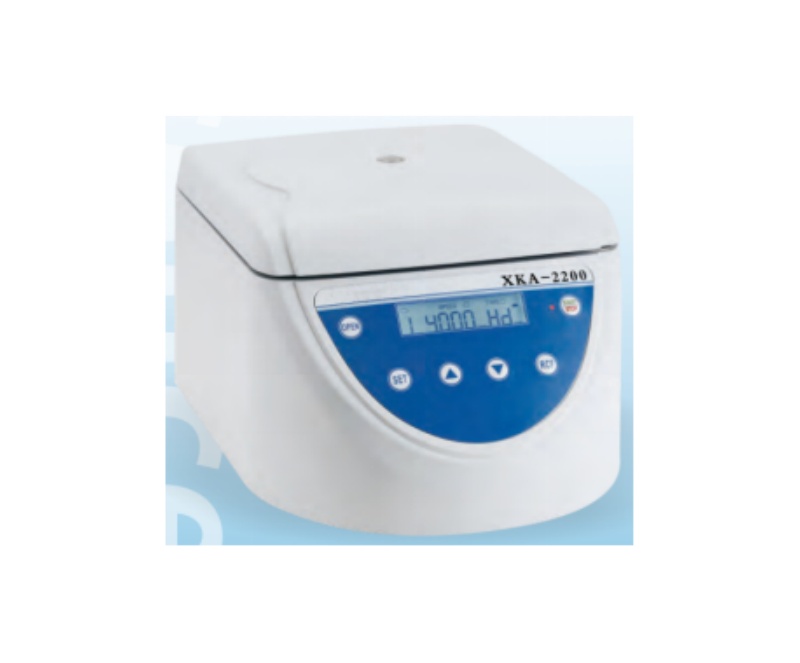

WME XKA-2200 Cell Washing Centrifuge
The SERO rotor for erythrocyte washing and the HLA rotor for lymphocyte washing are both easy to install and remove. Microprocessor control and DC brush-less motor. All operations are programmed and require no Debugging.
PRODUCT DETAILS
Product advantages
* Microprocessor control, DC brush-less motor.
* Touch panel and LCD display.
* Special damping structure to reduce vibration.
* Integrated molding of housing.
* Electronic door lock, centrifuge cannot work if the door is open and the door cannot be opened when it is working.
* Countdown time displayed by seconds if the centrifugation time is less than 1min.
Technical parameter
Order NO | 0205202000 |
Max Speed | 4500/min |
Max RCF | 2000xg |
Max Capacity | (0.25~1ml)x12 |
Speed Accuracy | ±30r/min |
Time Setting Range | 1min~99min |
Noise | ≤ 60dB(A) |
Power supply | AC220+22V 50/60Hz |
Power Consumption | 100W |
Dimension(W*D*H) | 456x330x266mm |
Packing Dimension(W*D*H) | 568x423x300mm |
Net Weight | 12kg |
Rotor parameters
| Swing Rotor HLA Max RCF:2000xg Max Capacity: (0.25~1ml)x12 Order No:0302891025 |
| Angle Rotor SERO Max RCF: 1000xg Max Capacity:7mlx12、(10~13x65~100mm) Order No:0301808900 |
Rotor | Rotor NO | RCF(xg) | Time (s) | Usage |
HLA | 1 | 2000xg | 180s | Lymphocyte separation and cultured cell separation |
2 | 1000xg | 3s | Platelet removal(thrombin processing) | |
3 | 1000xg | 60s | Lymphocyte washing | |
SERO | 4 | 500xg | 60s | Blood type determination and observation of hemagglutination reaction |
5 | 1000xg | 15s | The testing ofintersectant aptness and antistaphyoloysin | |
6 | 1000xg | 60s | Hematocyte washing, the extraction of the serum and plasma |
