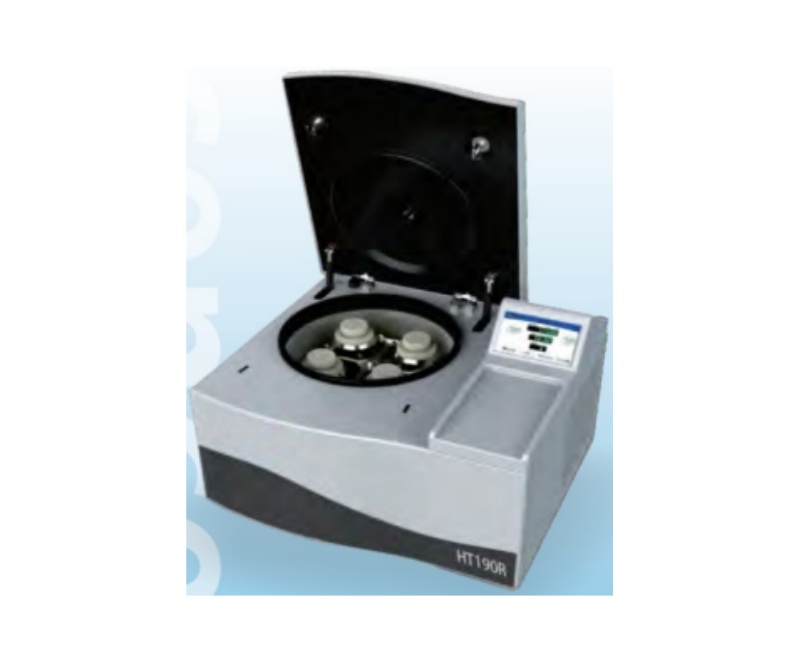

WME HT190R Benchtop High Speed Refrigerated Centrifuge
Benchtop High Speed Refrigerated CentrifugeHT190R provides you with the most cost-effective solution. With EP tube, centrifugal force up to25100xg (19000rpm).Multiple rotors and adapters are available,with excellent Performance. Equipped with 0.2ml tube to 250ml bottle, MTP, PCR and deep-well plate.
PRODUCT DETAILS
Product advantages
* 7 inch HD touch screen, setting and running parameters at a glance.
* Super large capacity data storage can store months of operation data, fault records, etc, which is convenient for tracking operation information.
* Directly input the setting value like speed, time, RCF, ACC and DEC and so on. It's more convenient and accurate compared with traditional knob operation.
* Automated lid locking system adds to user's safety, Automatic rotor identification for over-speed protection.
* Multiple programs can be saved for fast operation.It can support 5-steps centrifugation to meet the diversified experimental needs.
* The running records and diagnostic records can be checked directly on the screen.
* Featuring 10 acceleration profiles and 11 deceleration profiles to prevent second emulsion or turbid and achieve the best centrifugal effect
* Providing multiple self-diagnostic protection functions against door interlock malfunction, over-speed operation, motor overheating, misoperation and communication fault etc. to ensure user's safety.
*12 angle rotors, 4 horizontal rotors available, accomodate to 0.2 ~ 250ml tubes/bottle and micro plate. it can separate at high speed or large capacity .
Technical parameter
Order NO | 0202223000 |
Max Speed | 19000r/min |
Max RCF | 31006xg |
Max Capacity | 4x250ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min-99h59min |
Temperature Setting Range | -20~40℃C |
Temperature Accuracy | ±1℃ |
Compressor Unit | High performance compressor unit ,Environment-friendly refrigerant |
Noise | ≤65dB(A) |
Power Supply | AC220V+22V 50Hz |
Power Consumption | 1500W |
Dimension(W*D*H) | 710x560x450(mm) |
Packing Dimension (W*D*H) | 1022x712x630(mm) |
Net Weight | 95kg |
Rotor parameters
| Rotor Type: Angle rotor Max Capacity: 12x1.5/2.2ml Max Speed: 19000r/min Max RCF: 25100xg Order No:0301805020 Adapter:0.2ml、0.5m |
| Rotor Type: Angle rotor Max Capacity: 12x15ml(conical) Max Speed: 14000r/min Max RCF: 21912xg Order No:0301891142 Adapter: 5ml |
| Rotor Type: Angle rotor Max Capacity: 12x10ml Max Speed:16000r/min Max RCF:26310xg Order No:0301805310 Adapter:1.5ml、5ml |
| Rotor Type: Angle rotor Max Capacity:6x50ml Max Speed: 13000r/min Max RCF: 17938xg Order No:0301805420 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle rotor Max Capacity: 6x50ml(conical) 50ml round bottom adapter as gift Max Speed: 12500r/min Max RCF: 16585xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle rotor Max Capacity: 4x100ml Max Speed:12000r/min Max RCF: 15471xg Order No:0301805710 Adapter:5ml、10ml、15ml(round/conical) 25ml、50ml(round/conical) |
| Rotor Type: Angle rotor Max Capacity: 30x1.5/2.0ml Max Speed: 16000r/min Max RCF:28917xg Order No:0301812510 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity: 48x1.5/2.0ml Max Speed:16000r/min Max RCF: 28061xg Order NO:0301812830 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity: 6x85ml Max Speed: 12000r/min Max RCF: 15805xg Order No: 0301891097 Adapter:5ml、10ml、15ml(round/conical) 25ml、50ml(round/conical) |
| Rotor Type: Angle rotor Max Capacity: 40x15m Max Speed: 5500 r/min Max RCF: 4904xg Order No:0301891144 |
| Rotor Type: Swing Rotor Max Capacity: 60x1.5m Max Speed:15000r/min Max RCF: 18826xg Order No: 0301855600 |
| Rotor Type: Angle rotor Max Capacity: 24x1.5/2.0ml Max Speed:18000r/min Max RCF: 31006xg Order No:0301805520 Adapter:0.2ml、0.5ml |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF: 3450xgMax Capacity: 4x250ml Order No:0302891099 | Oval bucket Order No:0303891081 |
| 4x26x1.5ml 0304891454 |
| 4x10x5ml 0304891456 |
| 4x14x5/7ml 0304891459 |
| 4x13x10ml 0304891461 | ||
| 4x9x15ml(conical) 0304891463 |
| 4x9x15ml 0304891465 | ||
| 4x6x20ml 0304891467 |
| 4x4x50ml(conical) 0304891469 | ||
| 4x4x50ml 0304891471 |
| 4x2x100ml 0304891473 | ||
| 4x1x250ml 0304891475 | / | |||
can be customized | |||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: swing Rotor Max Speed: 4500r/min Max RCF: 3917xg Max Capacity:4x250ml Order No: 0302891099 |
Rectangular bucket Order No:0303891082 |
| 4x16x1.5ml 0304891477 |
| 4x17x5/7ml 0304891479 |
| 4x12x10ml 0304891481 |
| 4x9x15ml(conical) 0304891483 | ||
| 4x4x50ml(conical) 0304891485 |
| 4x1x100ml 0304891487 | ||
| 4x1x250ml 0304891489 | / | |||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Capacity:4x100ml Max Speed: 5000r/min Max RCF: 3773xg Order No:0302891038 |
Bucket Order No:0303891029 |
| 4x3x10ml Blood collection tube 0304852409 |
| 4x1x15ml 0304891119 |
| 4x1x15ml(conical) 0304891118 |
| 4x1x50ml(conical) 0304891114 | ||
| 4x1x50ml 0304891116 | / | |||
Max Speed: 4500r/min Max RCF: 2784xg Max Capacity:2x2x96well Order No:0302852310 |
Microplate bucket Order No:0303852351 | 2x6 ELISA microplate | 2x6x96 | can be customized |
2x2 Deep-well plate | 2x2x96 | |||
2x1 Filter plate reagent kit | 2x1x96 |
