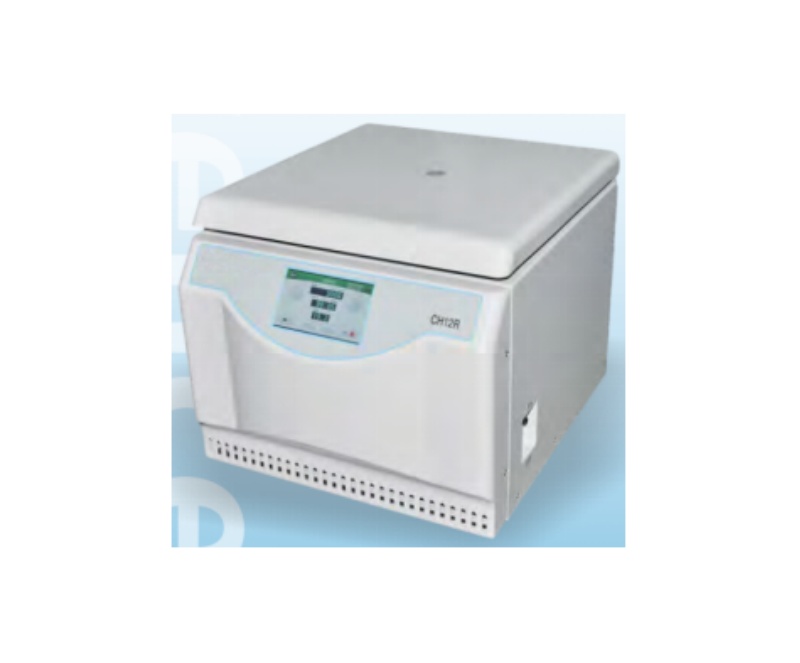

WME CH12R Benchtop Low Speed Refrigerated Centrifuge (Specially for Blood Collection Vehicle)
CH12R refrigerated centrifuge designed for blood collection vehicle,accommodate to vacuum blood collection tube, nucleic acid centrifuge tube and so on.It's specially suitable for nucleic acid centrifugation detection.With unique sucker type foot,it can sucked on the table tightly.Even when driving,there is no need to worry about the movement of the centrifuge. The compressor is fully enclosed type and rotary type.CH12R is really a good choice for Blood collection vehicle.
PRODUCT DETAILS
Product advantages
* It adopts double-layer structure. And compact footprint( 400x470x350mm) saves valuable bench space.
* With 5 inch HD touch screen control, easy- operate and intuitive. The setting parameters and running parameters at a glance.
* Multiple adapters available, accommodate to 2- 5ml vacuum blood collection tube, 8 - 10ml nucleic acid centrifuge tube as well as other 10ml tubes.
* Multiple protection,include over-speed, over-temperature, lock and so on, to ensure user's safety.
Technical parameter
Order NO | 0204173000 |
Max Speed | 5000r/min |
Max RCF | 3354xg |
Max Capacity | 8x10ml |
Speed Accuracy | ±30 r/min |
Time Setting Range | 1min~99min |
Temperature Setting Range | -20℃~40℃ |
Temperature Accuracy | ±2.0℃ |
Compressor Unit | High Performance Environment-friendly Refrigerant (R134a) |
Noise | ≤60dB(A) |
Power Supply | AC 220+22V 50Hz |
Power Consumption | 450W |
Dimension(W*D*H) | 400x470x350(mm) |
Packing Dimension (W*D*H) | 720x520x550(mm) |
Net Weight | 30kg |
Rotor parameters
|
|
|
Rotor Type: Swing Rotor Max Speed: 5000r/min Max RCF:3354xg Order No:0307855751 | Brackets Max Speed:5000r/min Max RCF: 3354xg Max Capacity: 8x8/10m Order No:0303855755 | Brackets Max Speed:5000r/min Max RCF: 3354xg Max Capacity: 12x5/7ml Order No:0303855752 |
