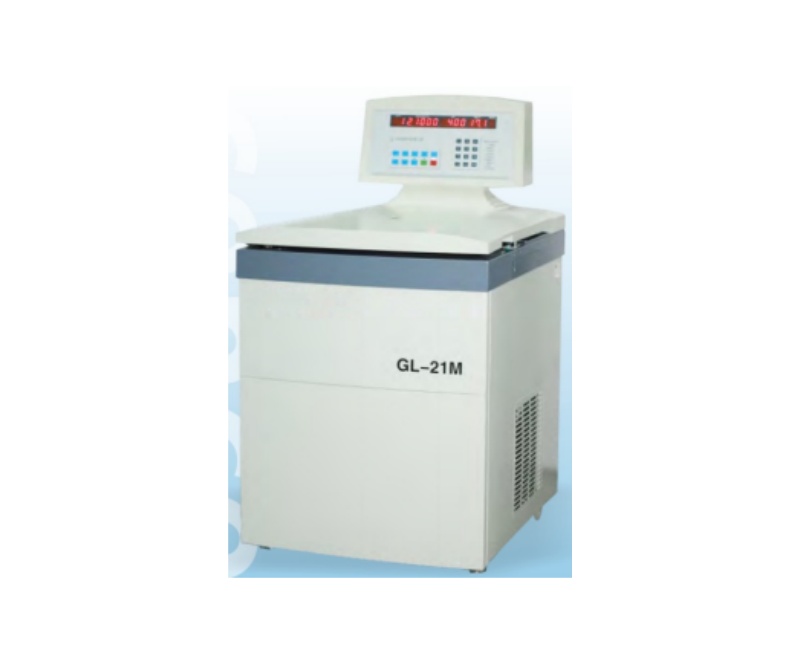

WME GL-21M Large Capacity High Speed Refrigerated Centrifuge
17 rotors are available for classical centrifuge GL-21M.There are continuous flow rotor, titanium alloy rotor and aluminum alloy rotor.Its mature technology, stable performance, excellent quality,rotor diversity and many other elements make this classic high-speed machine deeply trusted by users.
PRODUCT DETAILS
Product advantages
* 17 rotors are available, including 4 continuous flow rotors , to meet user's requirement.
* Max Speed up to 21000r/min, Max RCF 47400xg.
* The compressor unit is environmental and efficient.
* Microprocessor control, AC brush-less motor without carbon dust pollution,low noise and service life is long*Touch panel,LED display,programmable.
* Dual temperature control to achieve best centrifugal effect
* Acceleration and deceleration time can be set freely by users, and RCF value will calculated automatically.
* Multiple protection against over-speed, over-temperature and imbalance,with electronic door interlock, to ensure user's safety as well as instrument.
Technical parameter
Order NO | 0202110000 |
Max Speed | 21000r/min |
Max RCF | 47400xg |
Max Capacity | 4x750ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min~99h59min |
Temperature Setting Range | -20℃~40℃ |
Temperature Accuracy | ±1℃ |
Compressor Unit | Non-CFC unit (R404a) |
Noise | ≤65dB(A) |
Power supply | AC 220+22V50Hz |
Power Consumption | 5kW |
Dimension(W*D*H) | 710x820x1200(mm) |
Packing Dimension(W*D*H) | 920x1040x1520(mm) |
Net Weight | 310kg |
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 16x10ml Max Speed:21000r/min Max RCF: 47400xg Order No:0301800000 Adapter:1.5ml、5ml、7ml |
| Rotor Type: Angle Rotor Max Capacity:6x50ml Max Speed:20000r/min Max RCF: 43000xg Order No:0301800100 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 6x50ml (conical) 50ml round bottom adapter as gift Max Speed: 20000r/min Max RCF: 43000xg Order No:0301800200 Adapter:50ml,15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity: 12x15ml (conical/round) Max Speed:16000r/min Max RCF:28618xg Order No:0301812600 Adapter: 5ml |
| Rotor Type: Angle Rotor Max Capacity: 4x250ml Max Speed: 14000r/min Max RCF:29440xg Order No:0301800400 Adapter:1.5ml、10ml、15ml(conical)、50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity:10x100m Max Speed:12000r/min Max RCF:21280xg Order No:0301809610 Adapter:5ml、10ml、15ml(conical/round)25ml、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity:6x250ml Max Speed: 12000r/min Max RCF:22470xg Order No:0301800600 Adapter:1.5ml、10ml、15ml(conical)、50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity:6x500ml Max Speed: 9000r/min Max RCF: 14400xg Order No:0301800700 Adapter:1.5m、5ml、10ml、15ml(conical)30ml、50ml (conical/round)、100m、250ml |
| Rotor Type: Angle Rotor Max Capacity:6x250ml Max Speed: 12000r/min Max RCF:22470xg Order No:0301800600 Adapter:1.5ml、10ml、15ml(conical)、50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity:6x500ml Max Speed: 9000r/min Max RCF: 14400xg Order No:0301800700 Adapter:1.5m、5ml、10ml、15ml(conical)30ml、50ml (conical/round)、100m、250ml |
Continuous Rotor
|
|
|
|
continuous Rotor Max Speed: 14000r/min Max RCF:21500xg Standard Flow:200~600 Max Capacity: 1000ml Order No:0301890000 | Continuous Rotor Max Speed:8000r/min Max RCF:9500xg Standard Flow:200~800 Max Capacity: 3000ml Order No:0301890100 | Continuous Rotor(Titanium Alloy) Max Speed: 16000r/min Max RCF: 28100xg Standard Flow:200~600 Max Capacity: 1000ml Order No:0301890200 | Continuous Rotor(Titanium Alloy) Max Speed: 10000r/min Max RCF: 14800xg Standard Flow:200~800 Max Capacity:3000m Order No:0301890300 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: swing Rotor Max Speed: 4000 r/min Max RCF: 3500xg Max Capacity: 4x750ml Order No:0302891022 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight round bucket Order No: 0303891006 |
| 4x1x500ml(conical/flat 0304891035(conical) 0304891036(flat) |
| 4x1x250ml(conical/flat) 0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml (conical/round) 0304891003(conical) 0304891004(round) | | 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml(RIA tube) 0304891166 |
| 4x56x1.5ml 0304891025 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3040xg Max Capacity: 4x500ml Order No:0302891084 (Bucket not included)
|
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order No: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml(conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7ml Vaccum blood collection tube 0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 |
| 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 |
| 4x12x15ml (conical/round) 0304891582(conical) 0304891779(round) | ||
| 4x20x10ml 0304891077 |
| 4x31x5/7ml Vaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
Microplate bucket Order No: 0303891110 | 4x1x96 Deep-well plate | 4x2x96 Microplate | |||
