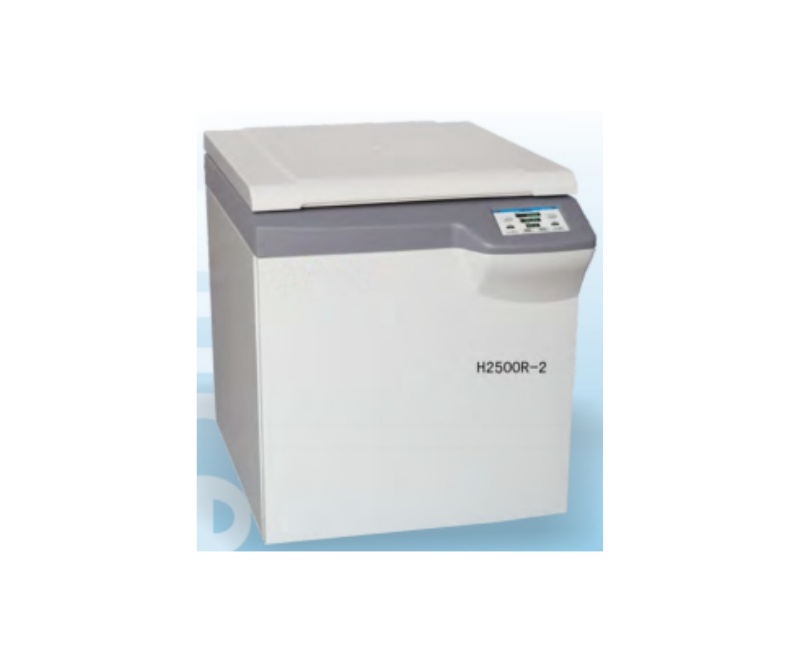

WME H2500R-2 Large Capacity High Speed Refrigerated Centrifuge
H2500R-2 high speed refrigerated centrifuge.Enhanced ergonomics design and easy to operate.The breakthrough of high-speed operation technology makes the max speed up to25000r/min with RCF at 64800xg. It is widely used in academic research,scientific research and bioengineering etc.
PRODUCT DETAILS
Product advantages
* Max speed up to 25000r/min,Max RCF up to 64800xg (with N0.1 Rotor.choose from 13 optional rotors to find the ideal fit for your application.
* Automatic rotor identification, automatic over-speed protection for added safety.
* 7-inch touchscreen interface with bright, highly visible , and durable display simplifies run set-up.The setting parameters and running parameters can be displayed simultaneously.
* Automatic storage of main machine and rotor operating parameters, automatic calculation of rotor service life, and alarm.
* Directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time.
* Equipped with multiple protection against imbalance ,over-temperature, over-speed,to ensure user's safety as well as instrument.
* Data records: Data traceability management running history records,diagnosis records can be checked on the screen or exported by USB port and saved to the relevant storage device, which can ensure the data integrity.
* Super powerful control system,offering step centrifugation,scheduled start, sample ID, curve mode, program mode, multi-language selection and other functions.
* All aluminum alloy rotors are forged with 7075-T6 aviation grade aluminum alloy, the surface is hard oxidation,with thick oxide layer and strong corrosion resistance.
Technical parameter
Order NO | 0202124000 | |||
Max Speed | Angle Rotor | 25000r/min | Swing Rotor | 4000r/min |
Max RCF | Angle Rotor | 64800xg | Swing Rotor | 3500xg |
Max Capacity | Angle Rotor | 4x1000ml | Swing Rotor | 4x750ml |
Speed Accuracy | ±10r/min | |||
Time Setting Range | 1min~99h59min | |||
Timing mode | Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time | |||
Temperature Setting Range | -20~40℃(1°Cadjustable) | |||
Pre-cooling function | Yes | |||
Temperature Accuracy | ±1°℃ | |||
Steps Centrifugation | Yes(1 00 programs, each programs with 5 steps, More programs can be saved by adding external memory card) | |||
Compressor Unit | Environment-friendly refrigerant (R404a) | |||
Noise | ≤65dB(A) | |||
Power Supply | AC220+22V 50Hz | |||
Power Consumption | 5kw | |||
Dimension(W*D*H) | 730x930x960(mm) | |||
Packing Dimension(W*D*H) | 880x1120x1180(mm) | |||
Net Weight | 260kg | |||
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 24x1.5ml Max Speed:25000r/min Max RCF:64800xg Order No:0301801400 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity:18x10mlMax Speed: 23000r/min Max RCF: 60460xg Order No:0301801500 Adapter:1.5ml、5ml、7ml |
| Rotor Type: Angle Rotor (Titanium Alloy) Max Capacity:8x50ml Max Speed:21000r/min Max RCF:52356xg Order No:0301800910 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity:8x50ml Max Speed:21000r/min Max RCF:52356xg Order No:0301800820 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor(Carbon Fibre) Max Capacity: 8x50ml Max Speed:21000r/min Max RCF:52356xg Order No:0301802400 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 4x250ml Max Speed: 15000r/min Max RCF: 33800xg Order No:0301801100 Adapter:1.5ml、10ml、15ml(conical)50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor(Carbon Fibre) Max Capacity:6x250ml Max Speed: 14000r/min Max RCF: 30070xg Order No: 0301802300 Adapter:1.5m、10ml、15ml(conical)50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity:6x250ml Max Speed:14000r/min Max RCF: 30070xg Order No:0301801200 Adapter:1.5m、10ml、15ml(conical)50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity: 6x500ml Max Speed:10000r/min Max RCF:17700xg Order No:0301801300 Adapter:1.5ml、5ml、10ml、15ml(conical)30ml、50ml (conical/round)、100m、250m |
| Rotor Type: Angle Rotor (Carbon Fibre) Max Capacity:6x500ml Max Speed: 10000r/min Max RCF: 17700xg Order No:0301802600 Adapter:1.5ml、5ml、10ml、15ml(conical)30ml、50ml (conical/round)、100m、250ml |
| Rotor Type: Angle Rotor Max Capacity: 4x1000ml Max Speed:8000r/min Max RCF: 12040xg Order No:0301801600 Adapter:50ml(conical/round) 250ml、500ml |
| Rotor Type: Angle Rotor Max Capacity: 30x1.5ml Max Speed:22000r/min Max RCF: 54706xg Order No:0301812500 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x15ml(conical) Max Speed:18000r/min Max RCF:36220xg Order No:0301812600 Adapter:5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x50ml(conical) Max Speed:14000r/min Max RCF:30070xg Order No:0301801700 Adapter:15ml(conical) |
| Rotor Type: Swing Rotor Max Capacity:6x50ml with windshield Max Speed:10000r/min Max RCF: 15680xg Order No:0302851700 | / | |
Rotor Type: Swing Rotor Max Speed: 4000 r/min Max RCF: 3500xg Max Capacity: 4x750m Order No: 0302891022 (Bucket not included) | Bucket Order NO: 0303891025 Aerosol-tight bucket Order No: 0303891006 | | 4x1x500ml(conical/flat)0304891035(conical) 0304891036(flat) | | 4x1x250ml(conical/flat)0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml(conical/round) 0304891003(conical) 0304891004(round) |
| 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml(RIA tube)0304891166 |
| 4x56x1.5ml 0304891025 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3345xg Max Capacity: 4x500ml Order No: 0302850100 (Bucket not included) |
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order No: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml (conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7ml Vaccum blood collection tube 0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 |
| 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 |
| 4x12x15ml(conical/round)0304891582 (conical)0304891779 (round) | ||
| 4x20x10ml 0304891077 |
| 4x31x5/7ml Vaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
Microplate bucket Order No: 0303891110 | 4x1x96Deep-well plate 4x2x96Microplate | ||||
