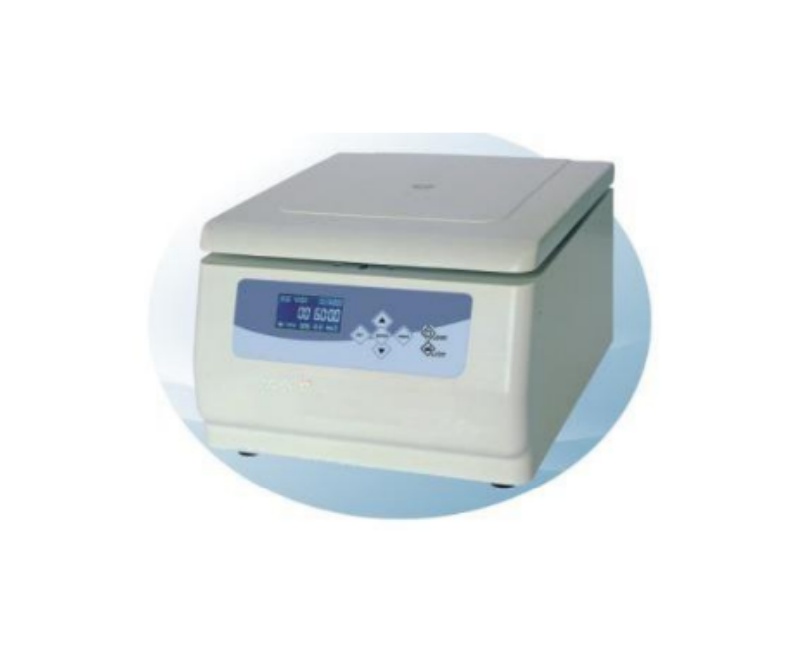

Tabletop Low Speed Centrifuge WML420/WML500/WML600
L420/L500/L600 Tabletop Low Speed Centrifuge is designed for the clinical research with our years of experience.
Stainless rotors with variety of capacity for convenient operation.
PRODUCT DETAILS
Features
Microprocessor control and DC brushless motor.
Touch panel and LCD display.
RCF value can be calculated automatically.
Special damping structure to reduce vibration.
Electrical door interlock, with which centrifuge
cannot work if the door is open and the door cannot be
opened when it is working.
Variety of brackets for users to convenient choice.
12months warranty
Specification
Model | L420 | L500 | L600 |
Order No. | 186000 | 211000 | 213000 |
Max. Speed | 4200rpm | 5000rpm | 6000rpm |
Max. RCF | 2760xg | 4030xg | 5120xg |
Max. Capacity | 12x20ml | 16x15ml | 16x15ml |
Speed Accuracy | ±30rpm | ±30rpm | ±30rpm |
Time Setting Range | 1min to 99min | 1min to 99min | 1min to 99min |
Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
Power Supply | AC220V±22V 50/60Hz 5A | AC220V±22V 50/60Hz 5A | AC220V±22V 50/60Hz 5A |
Total Power | 250W | 250W | 250W |
Dimension (W x D x H) | 370x432x250mm | 370x432x250mm | 370x432x250mm |
Package Dimension (W x D x H) | 435x580x312mm
| 435x580x312mm
| 435x580x312mm |
Net Weight | 14kg | 15kg | 15kg |
L420 Rotor Parameters
Order No.: 808400 Max. Speed :4000rpm Max. RCF: 2200xg Capacity: 18 x 10ml Adaptor: 808409(7ml) |
| Order No.:808500 Max. Speed :4000rpm Max. RCF: 2200xg Capacity: 12 x 20ml Adaptor:808512(5ml evacuated tube) |
|
|
Max. Speed: 4200rpm Max. RCF: 2760xg Max. Capacity: 4x50ml
|
| Name: Bracket Order No.: 854720 Rotor Capacity: 4x50ml Adaptor: 854708(15ml falcon) |
| Max. Speed: 4200rpm Max. RCF: 2760xg Max.Capacity: 12x15ml | | Name: Bracket Order No.: 854820 Rotor Capacity:12x15ml Adaptor:854806(1.5ml), 853532(5ml),853531(7ml) |
| Max. Speed: 4200rpm Max. RCF: 2760xg Max. Capacity: 8x10ml/16x5ml | | Name: Bracket Order No.: 854830 Rotor Capacity: 12x2x5ml Adaptor:854807(1.5ml), 854813(0.5ml) |
| Name: Bracket Order No.: 854920 Rotor Capacity: 8x10ml | | Name: Bracket Order No.: 854930 Rotor Capacity: 8x2x5ml |
L500 Rotor Parameters:
| Order No.: 808700 Max. Speed: 6000rpm Max. RCF: 5120xg Rotor Capacity: 12x15ml
| | Order No.: 855201 Max. Speed: 4200rpm Max. RCF: 2760xg
|
| Name:Bracket Order No.: 855210 Capacity: 4x50m/ Adaptor:854708(15ml falcon) | | Name:Bracket Order No.: 855220 Capacity:4x4x15ml Adaptor:854806(1.5ml) 854808(5ml) |
| Name:Bracket Order No.: 855230 Capacity:4x6x5ml Adaptor:854813(0.5ml) 854807(1.5ml) | Adaptors can be customized | |
L600 Rotor Parameters:
 | Order No.: 808700 Max. Speed: 6000rpm Max. RCF: 5120xg Rotor Capacity: 12x15ml
|
| Order No.: 855201 Max. Speed: 4200rpm Max. RCF: 2760xg
|
| Name:Bracket Order No.: 855210 Capacity: 4x50m/ Adaptor:854708(15ml falcon) | | Name:Bracket Order No.: 855220 Capacity:4x4x15ml Adaptor:854806(1.5ml) 854808(5ml) |
| Name:Bracket Order No.: 855230 Capacity:4x6x5ml Adaptor:854813(0.5ml) 854807(1.5ml) | Adaptors can be customized | |
