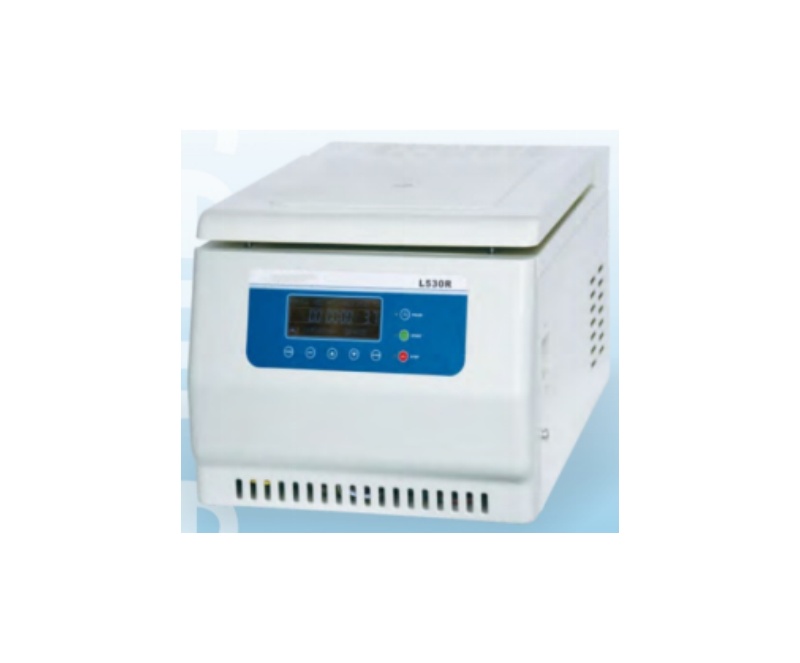

WME L530R Benchtop Low Speed Refrigerated Centrifuge
L530R refrigerated centrifuge is widely used in clinical medicine,genetics biology,cytology and other fields.A variety of rotors,brackets and adapters are available for users to choose from.Providing multiple self-diagnostic protection functions,safe and reliable.Super silent refrigeration compressor is adopted,maximum speed temperature can be controlled below -4'C.
PRODUCT DETAILS
Product advantages
* Non-CFC refrigerant, good refrigeration effect, Compressor with PID dynamic intelligent temperature control technology (Patent NO: ZL201922274761.7 ),The temperature accuracy can be +0.5'c when temperature controlled at 4'c.
* Various rotors ,brackets and adapters are available.
* Microprocessor control, directly driven by high torque and frequency-conversion motor without carbon pollution which can prolong the service life.
* Programmable, multiple user-defined programs can be saved.
* RCF value can be calculated automatically.
* 9 ACC and 10 DEC rates to keep high centrifugation efficiency, to protect the sample in good condition.
* Providing, multiple self-diagnostic protection functions against door interlock malfunction, over-speed operation, motor overheating etc. To ensure user as well as instrument's safety.
Technical parameter
Order NO | 0204141000 |
Max Speed | 5300r/min |
Max RCF | 5010xg |
Max Capacity | 4x250ml |
Speed Accuracy | ±30r/min |
Time Setting Range | 1min~99min |
Temperature Setting Range | -20℃~40℃ |
Temperature Accuracy | ±1℃ |
Compressor Unit | Convertible frequency refrigeration system |
Noise | ≤65dB(A) |
Power supply | AC 220+22V 50/60Hz |
Power Consumption | 1200W |
Dimension(W*D*H) | 470x730x380(mm) |
Packing Dimension (W*D*H) | 547x960x422(mm) |
Net Weight | 70kg |
Rotor parameters
Max Capacity: 4x100ml Max Speed: 5300r/min Max RCF:5010xg Order No:0307853591 |
Brackets Order NO:0303853580 Capacity: 4x100ml | Adapter Capacity:4x50ml Order No:0304891064 | Adapter Capacity:4x15ml(conical) Order No:0304891127 |
Adapter Capacity:4x50ml(conical) Order No:0304891126 | Adapter Capacity:4x3x5ml Vacuum tube Order No:0304853510 | ||
Adapter Capacity:4x30ml Order No:0304891125 | Adapter Capacity:4x2x10ml Order No:0304853511 | ||
Adapter Capacity:4x20ml Order No:0304853507 | Adapter Capacity:4x4Accretion tube Order No:0304853512 | ||
Adapter Capacity:4x15ml Order No:0304891128 | Adapter Capacity: 4x3x1.5ml Order No:0304853533 |
Max Capacity: 4x200m Max Speed: 4500r/min Max RCF:3560xg Order No:0307853591 |
Brackets Order No:0303853517 Capacity:4x2x100ml | Adapter Capacity:4x2x50ml Order No:0304891064 | Adapter Capacity:4x2x15ml(conical) Order No:0304891127 |
Adapter Capacity:4x2x50ml(conical) Order No:0304891126 | Adapter Capacity:4x6x5mlVacuum tube Order No:0304853510 | ||
Adapter Capacity:4x2x30ml Order No:0304891125 | Adapter Capacity:4x4x10ml Order No:0304853511 | ||
Adapter Capacity:4x2x20ml Order No:0304853507 | Adapter Capacity:8x4Accretiontube Order No:0304853512 | ||
Adapter Capacity:4x2x15ml Order No:0304891128 | Adapter Capacity:8x3x1.5ml Order No:0304853533 | ||
Brackets Capacity:4x8x15ml Order No:0303853585 | Adapter Capacity:10ml Order No:0304855729 | Adapter Capacity:5ml Order No:0304854622 | |
Adapter Capacity:7ml Order No:0304855727 | can be customized | ||
Brackets Capacity: 4x2x50ml Order NO:0303853540 | can be customized | ||
Max Speed: 4000r/min Max RCF:2200xg Max Capacity: 2x2x96wel Order NO:0302853800 |
Microplate rotor Order No:0303853810 | 2x6 ELISA microplate | 2x6x96 | Can be customized |
2x2 Deep-well plate | 2x2x96 | |||
2x1 Filter plate reagent kit | 2x2x96 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: swing Rotor Max Capacity: 4x250ml Max Speed: 4500r/min Max RCF: 4080xg Order No:0302853600 |
Round Bucket Order No: 0303891028 |
| 4x1x100ml 0304891098 |
| 4x1x50ml(conical/round) 0304891109(conical) 0304891095(round) |
| 4x4x20ml 0304891101 |
| 4x4x15ml(conical) 0304891108 | ||
| 4x6x15ml 0304891106 |
| 4x7x10ml 0304853604 | ||
| 4x10x5ml 0304853605 |
| 4x8x1.5ml 0304891124 | ||
Can be customized | |||||
Rectangular Bucket Order No: 0303853615 |
| 4x1x250ml 0304891113 |
| 4x4x50ml(conical) 0304891121 | |
| 4x7x15ml(conical) 0304891117 |
| 4x9x10ml 0304891122 | ||
| 4x9x5ml 0304891196 |
| 4x15x1.5ml 0304853622 | ||
