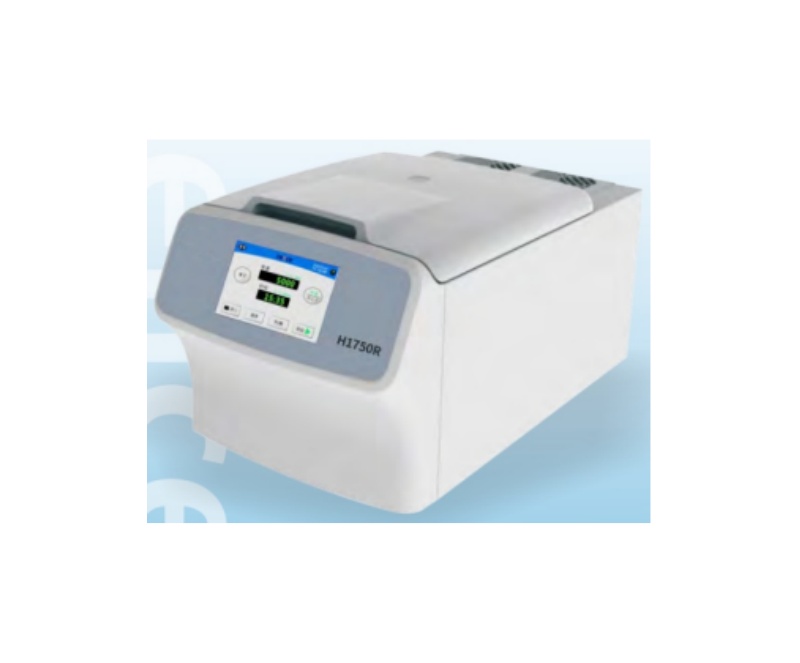

WME H1750R/HT185R Benchtop High Speed Refrigerated Centrifuge
H1750R/HT185R high speed refrigerated centrifuge is a compact unit with suitable height. 15 kinds of rotors available.The centrifuge rotors compatible with micro tubes, PCR strip,microplate,15/50mlconical tube and blood collection tube.(Angle rotor24x1.5ml max speed up to 17500rpm). which has the same performance like the big type centrifuge.
PRODUCT DETAILS
Product advantages
* Equipped with 7-inch touch screen, intuitive interface and all parameters at a glance.
* VF Compressor with PID dynamic intelligent temperature control technology.
* Multiple program memories. User can simply name each programs, which is more convenient to call programs when using.
* Automatic rotor identification system against over-speed.
* 11 acceleration and 12 deceleration rates, and free parking time can be set.
* Providing multiple self-diagnostic protection functions against door interlock malfunction, over-speed operation,motor overheating, misoperation and communication fault etc. To ensure user's safety.
* Built in condensation water tank can avoid the condensation water gathering and prevent corrosion, which can improve the service life of the instrument.
Technical parameter
Model | H1750R | HT185R(cooling and heating dual system) |
Order NO | 0202253000 | 0202253001 |
Max Speed | 18500r/min | 18500r/min |
Max RCF | 29302xg | 29302xg |
Max Capacity | 4x100ml | 4x100ml |
Speed Accuracy | ±10r/min | ±10r/min |
Time Setting Range | 1s-99min59s/1min-99h59min | 1s-99min59s/1min-99h59min |
Timing mode | Start timing ,Speed timing, Continuous timing | Start timing ,Speed timing, continuous timing |
Temperature Setting Range | -20~40℃ | -20~40℃ |
Temperature Control Range | 0~25℃ | 0~40℃ |
Temperature Accuracy | ±1℃ | ±1℃ |
Pre-cooling function | yes | yes |
Compressor Unit | VF compressor unit | VF compressor unit |
Noise | ≤62dB(A) | ≤62dB(A) |
Short Spinning | yes | yes |
Rotor Identification | yes | yes |
Power Supply | AC220V+22V 50/60Hz | AC220V+22V 50/60Hz |
Power Consumption | 1kW | 1kW |
Dimension (W*D*H) | 380x660x330(mm) | 380x660x330(mm) |
Packing Dimension (W*D*H) | 480x940x460(mm) | 480x940x460(mm) |
Net Weight | 62kg | 62kg |
Rotor parameters
| Rotor Type: Angle rotor Max Capacity: 24x1.5/2.0ml Max Speed: 17500r/min Max RCF:29302xg Order No:0301805520 |
| Rotor Type: Angle rotor Max Capacity: 12x5ml Max Speed: 15000r/min Max RCF: 15840xg Order No:0301806110 Adapter:0.5ml、1.5ml |
| Rotor Type: Angle rotor Max Capacity: 12x10ml Max Speed:13000r/min Max RCF:17370xg Order No:0301805310 Adapter: 1.5ml、5ml |
| Rotor Type: Angle rotor Max Capacity:6x50ml Max Speed: 13000r/min Max RCF: 17947xg Order No:0301805420 Adapter:1.5ml、5m、10m、15m、20m1、25ml、30ml |
| Rotor Type: Angle rotor Max Capacity:6x50ml(conical) 50ml round bottom adapter as gift Max Speed: 12000r/min Max RCF: 15292xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle rotor Max Capacity: 4x100ml Max Speed:10000r/min Max RCF: 10744xg Order No:0301805710 Adapter:5ml、10ml、15ml(conical/round)25m、50m(conical/round) |
| Rotor Type: Angle rotor Max Capacity: 30x1.5/2.0ml Max Speed: 14000r/min Max RCF:22140xg Order No:0301812510 |
| Rotor Type: Angle rotor Max Capacity: 48x1.5/2.0ml Max Speed: 13000r/min Max RCF: 18525xg Order No:0301812830 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity: 6x8x0.2ml(PCR tube) Max Speed:13000r/min Max RCF:16020xg Order No:0301812210 | | Rotor Type: Hematocrit rotor Max Capacity:24Hematocrit Max Speed: 13000r/min Max RCF:17369xg Order No:0301856310 |
| Rotor Type: Swing Rotor Max Capacity: 24x1.5/2.2ml Max Speed: 13000r/min Max RCF: 16816xg Order No:0302857500 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity:8x15ml(conical) Max Speed: 12000r/min Max RCF: 13200xg Order No: 0301806220 Adapter: 5ml |
| Rotor Type: Angle rotor Max Capacity: 12x1.5/2.2ml Max Speed: 18500r/min Max RCF:23797xg Order No:0301805020 Adapter:0.2ml、0.5ml | / | |
Rotor | Bucket | Adaptor | Capacity/Order No | Adaptor | Capacity/Order No |
Rotor Type: Swing Rotor Max Capacity: 4x100ml Max Speed: 5000r/min Max RCF:3773xg Order No:0302891038 |
Bucket Order No:0303891029 |
| 4x3x10ml Blood collection tube 0304852409 | | 4x1x15ml 0304891119 |
| 4x1x15ml(conical) 0304891118 |
| 4x1x50(conical) 0304891114 | ||
| 4x1x50ml 0304891116 | / | |||
Max Speed: 4000r/min Max RCF:2200xg Max Capacity: 2x2x96well Order No:0302852310 |
Microplate bucket Order NO: 0303852351 | 2x6 ELISA microplate | 2x6x96 | can be customized |
2x2 Deep-well plate | 2x2x96 | |||
2x1 Filter plate reagent kit | 2x1x96 |
