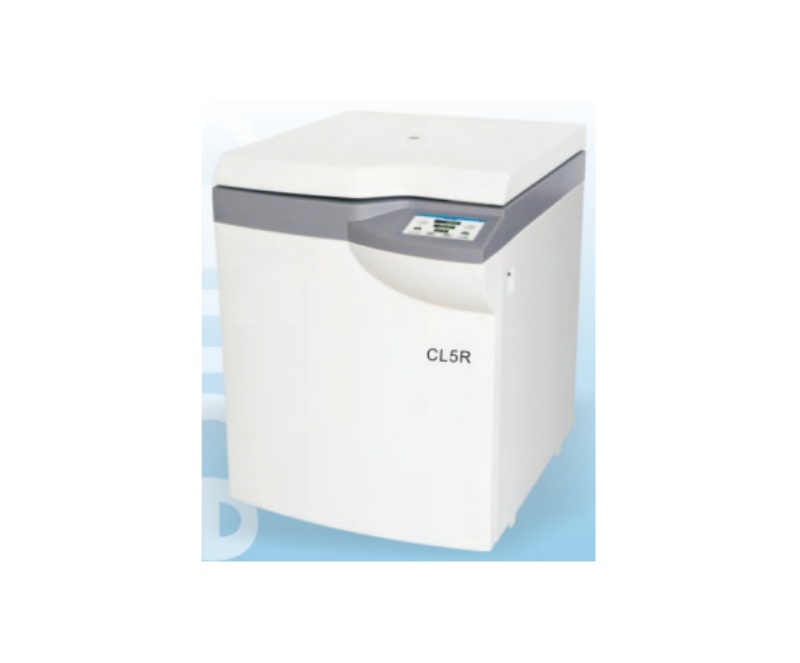

WME CL5R/CL5 Large Capacity Low Speed Refrigerated/Ventilated Centrifuge
CL5R(refrigerated)CL5(ventilated)are a new generation of smart centrifuges with new UI interface design to meet the new demand of customers. Featuring small footprint and cost-effective. It can quicken separation with 6x500ml or 4x1000ml swing rotor. Enhanced ergonomics combined with the quick set-up of traceable,reproducible runs makes the centrifuge CL5R/CL5 the choice for simplified blood processing productivity.
PRODUCT DETAILS
Product advantages
* The sturdy rotor adopt 7075-T6 alloy aluminum, hard oxidation,corrosion resistance.
* Blood components separation: It can separate 4x450ml triple blood bags or 8x200ml triple blood bags with quick centrifugation programs ,compact design as well as ideal cost-effectiveness
* Multiple adapters available, accommodate to almost all the tubes used in hospitals, Swing rotor 6x500ml, it can spin up to 168pcvacuum blood collection tube in one cycle, meet the requirement of high-volume mass centrifugation in hospital.
* It can handle the samples with large capacity or with multiple tubes.
* Equipped with triple protection structure of inner chamber, jacket and housing. Non-contact imbalance protection and multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid, ensure safety of samples, centrifuge and operator.
* IS09001,1s013485 quality system have been effectively running for 15 years, ensure the stability and consistency of the product quality.
* Featuring 10 ACC and 11 DEC rate to prevent second emulsion or turbid, to achieve best centrifugation result.
* In Manual mode, parameters can be set quickly. RCF and speed be shifted by just touch the key. The stability of temperature and speed during spinning can be viewed through the curve.
* Running data, error code record and operation record can be stored through the system setting. Chinese / English / German French / Spanish operation language optional. And user authority management and other characteristic functions can be managed as well.
Technical parameter
| Rotor Type: Angle Rotor Max Speed:5000r/min Max RCF:4640xg Max Capacity:6x500ml Order No:0301801900 Adapter: 6x250ml、6x100ml、6x2x50ml(conical)、6x50ml(conical/round)、6x3x50ml、6x7x15ml(conical)、6x7x10ml、6x10x5ml、6x13x1.5ml |
Rotor parameters
Model | CL5R | CL5 | |||
Order NO | 0204256000 | 0205255000 | |||
Max Speed | Angle Rotor | 5000r/min | Swing Rotor | 5000r/min | |
Max RCF | Angle Rotor | 4640xg | Swing Rotor | 6100xg | |
Max Capacity | Angle Rotor | 6x500ml | Swing Rotor | 4x1000ml | |
Speed Accuracy | ±10r/min | ||||
Time Setting Range | 1min~99h59min | ||||
Time Setting Range | Start Timing after Spinning,Start Timing after Reach Setting speed, Continuous Timing, Operation at an appointed Time | ||||
Temperature Setting Range | -20~40C | / | |||
Temperature Accuracy | ±1°C | / | |||
Pre-cooling function | Yes | / | |||
Pre-cooling function | Environment friendly refrigerant(R404a) | / | |||
Noise | ≤65dB(A) | ||||
Power Supply | AC220+22V 50Hz | AC220+22V 50Hz | |||
Power Consumption | 3.0kW | 2.0kw | |||
Dimension(W*D*H) | 700x880x930(mm) | ||||
Packing Dimension (W*D*H) | 820x1000x1080(mm) | ||||
Net Weight | 260kg | 220kg | |||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: swing Rotor Max Speed: 5000r/min Max RCF: 6100x9 Max Capacity: 4x1000ml Order No:0302857100(rotor, round bucket and windshield included) Order No:0302891097(rotor, rectangular bucket and windshield included) |
Round Bucket Max Capacity: 4x1000ml Order NO: 0303891027 |
| 4x1x500ml(conical/round) 0304891533(conical)0304891040(round) |
| 4x1x300ml 0304891048 |
| 4x1x250ml(conical) 0304891049 |
| 4x1x200ml Blood bag 0304850527 | ||
| 4x3x100ml 0304891042 |
| 4x5x50ml(conical/round) 0304891043(conical)0304891044(round) | ||
| 4x14x15ml(conical/round) 0304891045(conical)0304891047(round) |
| 4x37x7ml 0304850522 | ||
| 4x24x5ml 0304850525 |
| 4x28x1.5ml 0304850526 | ||
Rectangular Bucket Max Capacity: 4x1000ml Order NO: 0303857106 |
| 4x1x1000ml Blood bag adaptor 0304850602 | / | ||
Microplate Order No: 0303891127 | 4x1x96 Deep-well plate 4x2x96 Microplate Deep-well plate Height<72mm | ||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 55000r/min Max RCF:5980xg Max Capacity: 6x500ml Order No:0302857200(rotor, round bucket and windshield included) Order No:0302891096(rotor, rectangular bucket and windshield included) Max speed 4000r/min without windshield |
Round Bucket Max Capacity: 6x500ml Order No: 0303891022 |
| 6x1x250ml 0304891142 |
| 6x2x100ml 0304891009 |
| 6x4x50ml (conical/round) 0304891008 |
| 6x7x20ml 0304851485 | ||
| 6x9x15ml (conical/round) 0304891083 |
| 6x14x10ml 0304891705 | ||
| 6x19x5/7mlVaccum blood collection tube 0304851450 |
| 6x36x1.5ml 0304891677 | ||
Rectangular Bucket Max Capacity: 6x500ml Order No: 0303851421 |
| 6x1x250ml 0304891041 |
| 6x2x100ml 0304891542 | |
| 6x4x50ml(conical/round) 0304891075(conical)0304891107(round) |
| 6x10x15ml(conical/round) 0304891074(conical)0304891104(round) | ||
| 6x20x10ml 0304891077 |
| 6x28x5/7mlVaccum blood collection tube 0304891081 | ||
| 6x56x1.5ml 0304891603 | / | |||
