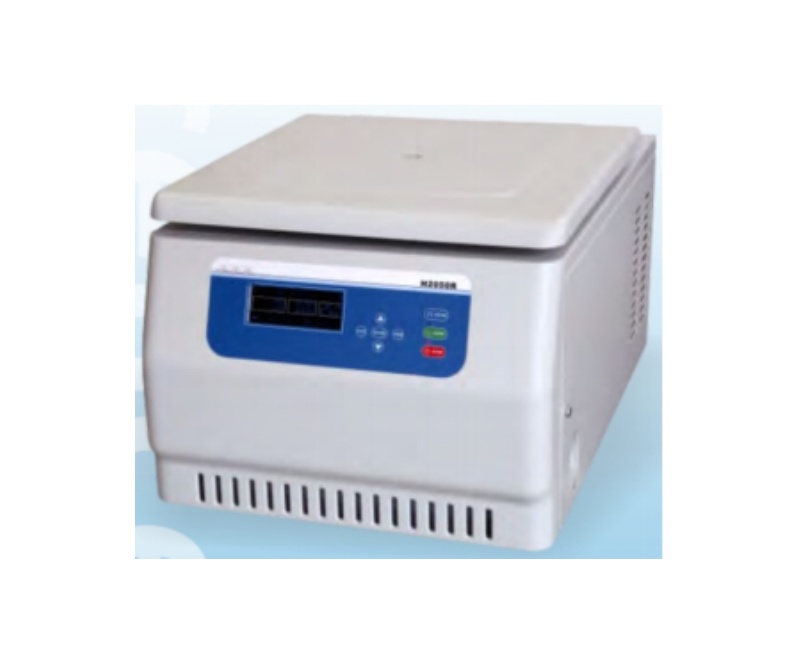

WME H2050R Benchtop Large-Capacity High Speed Refrigerated Centrifuge
12 kinds of rotors are available for H2050R.Not only 4x750ml large capacity rotor,but also small rotor with high speed 20500rpm. it's a powerful and versatile universal centrifuges for virtually every lab application.
PRODUCT DETAILS
Product advantages
* 12 kinds rotors to choose, Large capacity and High speed.
* Microprocessor control,AC brush-less motor,without carbon dust pollution and service life is long.
* Touch panel,LCD display,programmable.
* 9 Acceleration and 10 Deceleration rates (N0.0 is free to stop), 3 levels damping, to achieve best centrifugal result
* Over-speed, Over-temperature protection and door lid self-locked, stainless steel chamber for safe operation.
* The automatic rotor identification system against over-speed.
* The environmentally friendly refrigerant can keep the temperature below -4'℃ at max. Speed.
Technical parameter
Order NO | 0202123000 |
Max Speed | 20500r/min |
Max RCF | 29200xg |
Max Capacity | 4x750ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min~99min59secor1min~99h59min |
Temperature Setting Range | -20℃~40℃ |
Temperature Accuracy | ±1℃ |
Compressor Unit | Non-CFC unit(R134a) |
Noise | ≤65dB(A) |
Power supply | AC 220+22V 50Hz |
Power Consumption | 1.5kW |
Dimension (W*D*H) | 560x800x440(mm) |
Packing Dimension (W*D*H) | 680x1080x580(mm) |
Net Weight | 95kg |
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 12x1.5ml Max Speed: 20500r/min Max RCF:29200xg Order No:0301805020 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x5ml Max Speed:16500r/min Max RCF: 19175xg Order No:0301806110 Adapter: 0.5ml、1.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x10ml Max Speed: 15000r/min Max RCF:23120xg Order No:0301805310 Adapter:1.5ml、5ml | | Rotor Type: Angle Rotor Max Capacity: 6x30ml Max Speed: 15000r/min Max RCF:23120xg Order No: 0301891095 Adapter:5ml、10ml |
| Rotor Type: Angle Rotor Max Capacity: 6x50ml(conical) 50ml round bottom adapter as gift Max Speed:13000r/min Max RCF:17940xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity:6x50ml Max Speed:13000r/min Max RCF: 17940xg Order No:0301805420 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity:24x1.5/2.2ml Max Speed: 16500r/min Max RCF:26050xg Order No:0301805520 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity:6x85ml Max Speed: 12000r/min Max RCF:15805xg Order No:0301891097 Adapter:5ml、10ml、15ml(conical/round) 25ml、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity:6x100ml Max Speed: 10000r/min Max RCF: 11960xg Order No:0301891099 Adapter:5ml、10ml、15ml(conical/round) 25ml、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity:8x15ml(conical) Max Speed: 15000r/min Max RCF:24036xg Order No:0301806220 Adapter: 5ml |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3345xg Max Capacity: 4x500ml Order No:0302850110 (Bucket not included) |
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order No: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml(conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7mlVaccum blood collection tube 0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 |
| 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 | | 4x12x15ml(conical/round)0304891582(conical) 0304891779(round) | ||
| 4x20x10ml 0304891077 | | 4x31x5/7ml Vaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
Microplate bucket Order No: 0303891110 | 4x1x96Deep-well plate 4x2x96Microplate | ||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: swing Rotor Max Speed: 4000r/min Max RCF: 3500xg Max Capacity:4x750ml Order No:0302891036 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight bucket Order No: 0303891006 |
| 4x1x500ml (conical/round) 0304891035(conical) 0304891036(flat) |
| 4x1x250ml(conical/flat) 0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml (conical/round) 0304891003(conical) 0304891004(round) |
| 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml(RIA tube) 0304891166 |
| 4x56x1.5ml 0304891025 | ||
can be customized | |||||
