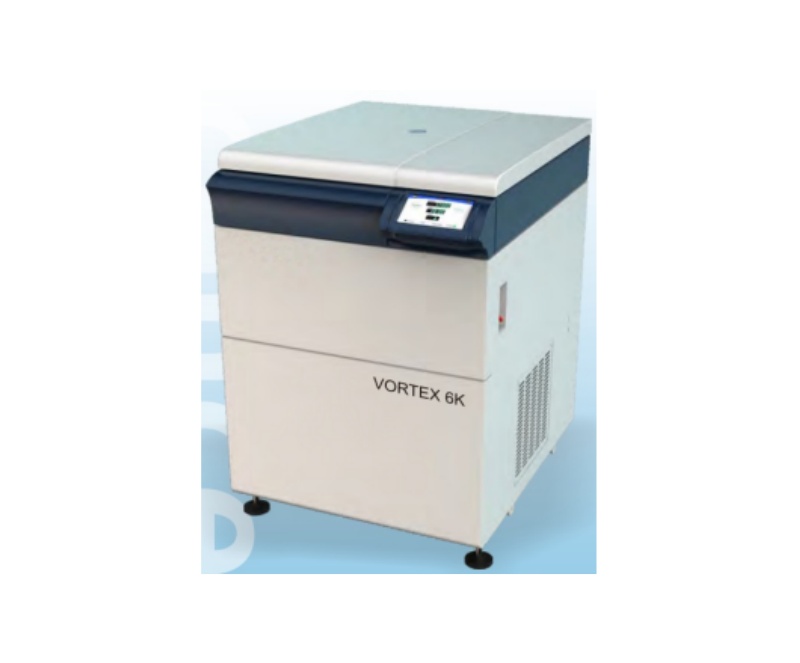

WME VORTEX 6K Large Capacity Low Speed Refrigerated Centrifuge
VORTEX 6K It can monitor 1 to 100 centrifuges through intelligent terminal (computer), monitor the operation status of centrifuges, and save relevant records of centrifuge operation,Establish a safe connection with the centrifuge and remotely control the startup and stopping of the centrifuge, It meets the requirements for the integrity of operation information of biopharmaceutical GMP instruments.Come with standard network interface, user can control the centrifuge by Mobile APP
PRODUCT DETAILS
Product advantages
* Automatic door opening & closing by just touch the key on the screen.Door lid come with intelligent anti pinch device.
* Swing rotor 6x1000ml for biological product separation. It can also separate 6x400ml triple blood bags in one cycle, which greatly improves the production efficiency and separation effect.
* Multiple protective functions, including the protection of over-speed, over-temperature, motor over-heating as well as door lid.
* The rotor adopt 7075-T6 aviation grade alloy aluminum , hard oxidation, corrosion resistance. from raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report, chemical composition test report and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel),Containment (15mm Q235 steel ), Diaphragm in door lid (3mm Q235 steel )
* The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring.
* Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps (set speed, time, temperature ), to meet the diversified experimental needs.
* 11 acceleration and 12 deceleration rate ( N0.10 rate can be self-defined), to prevent second emulsion or turbid, to achieve best centrifugation result.
* In Manual mode, parameters can be set quickly. RCF and speed be shifted by just touch the key.
* Powerful control system allows easy data capture, storage, and processing
* (Optional) It can monitor 1 to 100 centrifuges through intelligent terminal (computer);Provide real-time connection with centrifuge with mobile APP, Built in help information in each interface; Make the centrifuge intelligent.
Technical parameter
| Rotor Type: Angle Rotor Max Speed:6000r/min Max RCF:6680xg Max Capacity:6x500ml Order No:0301801900 Adapter: 6x250ml、6x100ml、12x50ml(conical)、18x50ml、42x15ml(conical)、42x10ml.60x5ml、78x1.5ml |
Rotor parameters
Order NO | 0204260031 | |||
Max Speed | Angle Rotor | 6000r/min | Swing Rotor | 4200r/min |
Max RCF | Angle Rotor | 6680xg | Swing Rotor | 5100xg |
Max Capacity | Angle Rotor | 6x500ml | Swing Rotor | 6x1000ml |
Time Setting Range | two mode 1min-99h59min,1s-99min59s optional, default mode 1min-99h59min | |||
Timing mode | Start Timing after Spinning, Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time | |||
Temperature Setting Range | -20℃~40℃,Setp 1'cajustable | |||
Temperature Accuracy | ±2℃ | |||
Speed Accuracy | ±10r/min | |||
Power Supply | AC220+22V 50Hz | |||
Power Consumption | 4kW | |||
Noise | ≤65dB(A) | |||
Rotor Identification | Yes | |||
Imbalance Protection | Yes | |||
Pre-cooling function | Yes | |||
Computer Control | RS485 or RS232 | |||
Protection Function | Imbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection,Motor Overheating Protection,Over-speed Protection,Over-temperature Protection | |||
Dimension(W*D*H) | 728x935x943(mm) | |||
Packing Dimension (W*D*H) | 920x1040x1200(mm) | |||
Net Weight | 330kg | |||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF:5100xg Max Capacity:6x1000ml Order No:0302850500 (rotor, round bucket and windshield included)
Order No:0302891100 (rotor, rectangular bucket and windshield included) |
Round Bucket Max Capacity: 6x1000ml Order No: 0303891021
|
| 6x1x500ml (conical/round) 0304891533(conical)0304891040(round) |
| 6x1x300ml 0304891048 |
| 6x1x250ml(conical) 0304891049 |
| 6x1x200ml Blood bag 0304850527 | ||
| 6x3x100ml 0304891042 |
| 6x5x50ml (conical/round) 0304891043 (conical) 0304891044(round) | ||
| 6x14x15ml (conical/round) 0304891045(conical)0304891047(round) |
| 6x37x7ml(RIA tube) 0304850522 | ||
| 6x24x5/7ml Vaccum blood collection tube 0304850525 |
| 6x28x1.5ml 0304850526 | ||
Rectangular Bucket Max Capacity: 6x1000ml Order No: 0303850601 |
| 6x1x1000ml Blood bag adaptor 0304850602 | / | ||
Can be customized | |||||
