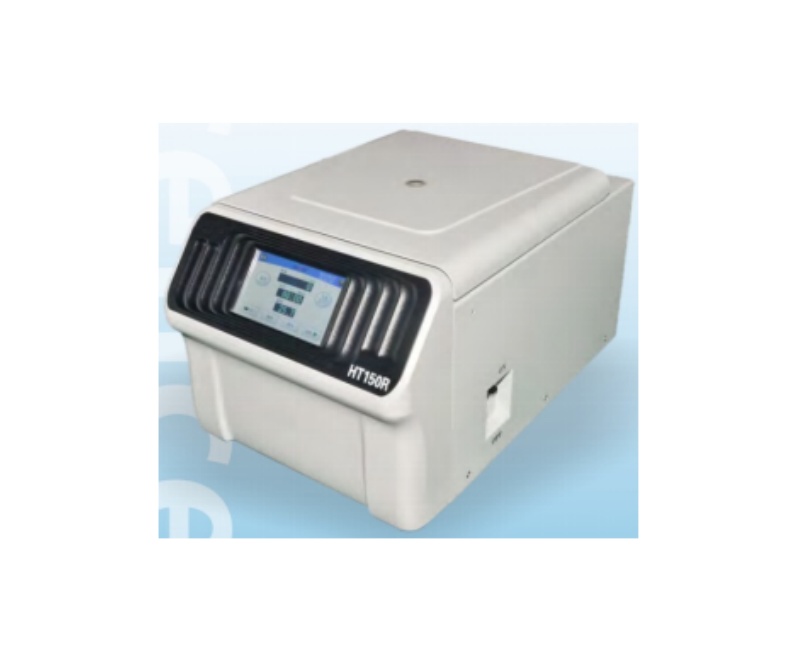

WME HT150R Benchtop High Speed Refrigerated Centrifuge
HT150R is the smallest refrigerated centrifuge in the world with compact design. Frequency conversion compressor technology is adopted.Meanwhile,according to the time interval of the experiment, the sleep time of the instrument can be set (user-defined), which can ensure the good refrigeration effect as well as Save energy and increase the service life of the instrument.
PRODUCT DETAILS
Product advantages
* 5-inch HD touch screen for super-fast parameter setting. setting parameters and running parameters at a glance.
* Multiple user-defined programs can be saved.
* Up to 5 programs groups can be selected to realize step centrifugation, diversify the experiment and complete multiple centrifugation steps at one time
* 11 acceleration and 12 deceleration rates . Among of them , one ACC and DEC rate can be user-defined base on the experiment requirements
* The pre-cooling function can be started just by touch the button on the screen.
* The running records and diagnostic records can be saved automatically, through which can effectively check the operation of the instrument and the centrifugation of each batch sample.
* Low noise and maintenance-free brushless motor with long-service life.
Technical parameter
Order NO | 0202253010 |
Max Speed | 15000r/min |
Max RCF | 21532xg |
Max Capacity | 12x5ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1s-99min/59sec或1min-99h59min |
Temperature Setting Range | -20°~40°C |
Temperature Accuracy | ±1°C |
Compressor Unit | VF compressor unit ,Environment-friendly refrigerant(R134a) |
Noise | ≤65dB(A) |
Power supply | AC220+22V 50Hz |
Power Consumption | 700W |
Dimension(W*D*H) | 300x460x260(mm) |
Net Weight | 32kg |
Rotor parameters
|
|
|
Rotor Type: Angle rotor Max Capacity: 24x1.5/2.2m Max Speed:15000r/min Max RCF:21532xg Order No:0301805510 Adapter:0.2ml、0.5ml | Rotor Type: Angle rotor Max Capacity: 12x5ml Max Speed: 15000r/min Max RCF: 15846xg Order No:0301891075 Adapter: 0.5ml、1.5ml | Rotor Type: Angle rotor Max Capacity: 6x8x0.2 PCR Max Speed: 15000r/min Max RCF:15722xg Order No: 0301891223 |
