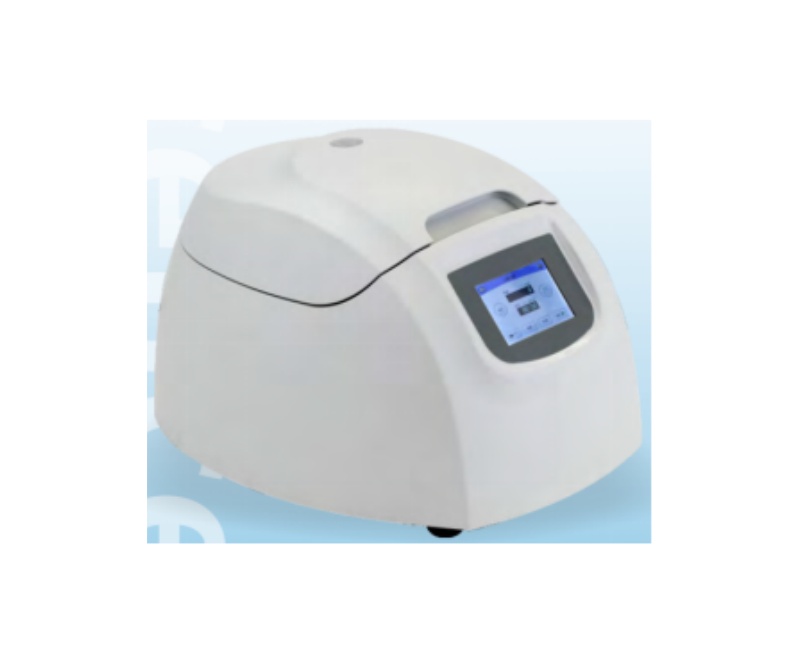

WME TG12M Hematocrit Centrifuge
The TG12M Hematocrit Centrifuge is used for determination of volume fractions of erythrocytes in blood and also for separation of micro blood and solutions.
PRODUCT DETAILS
Product advantages
* Microprocessor control, DC brushless motor for stable and low noise operation.
* Parameters can be set freely during a run.
* G-force can be calculated automatically.
* Countdown time displayed by seconds if the centrifugation time is less than 1 min.
* 5 inch HD touch screen, simple interface , setting parameters and running parameters at a glance.
* Self-diagnosis system can automatically detect the faults of over-speed and no speed signal, door lid interlock to improve the safety performance.
Technical parameter
Order NO | 0203160000 |
Max Speed | 12000r/min |
Max RCF | 14800xg |
Max Capacity | 36 capillaries |
Speed Accuracy | ±30r/min |
Time Setting Range | 1min~99min |
Noise | ≤65dB(A) |
Power supply | AC220V+22V 50Hz |
Power Consumption | 300W |
Dimension(W*D*H) | 320x370x235(mm) |
Packing Dimension(W*D*H) | 530x410x290(mm) |
Net Weight | 11kg |
Rotor parameters
| 36 capillaries rotor Max Speed: 12000r/min Max RCF:14800xg Order No:0301854200 |
| 24 capillaries rotor Max Speed: 12000r/min Max RCF: 14800xg Order No:0301852700 |
| 12 capillaries rotor Max Speed:12000r/min Max RCF:14800xg Order No:0301856400 | / | |
