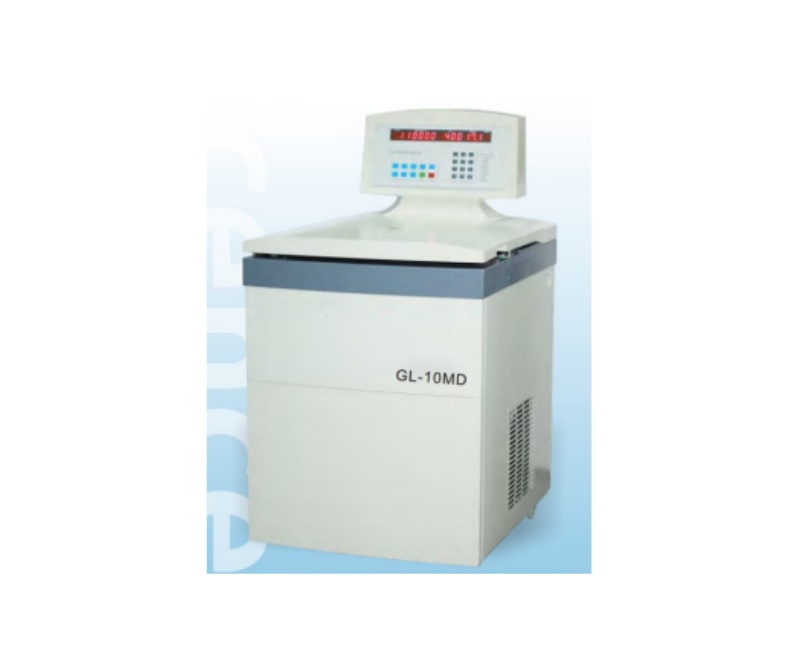

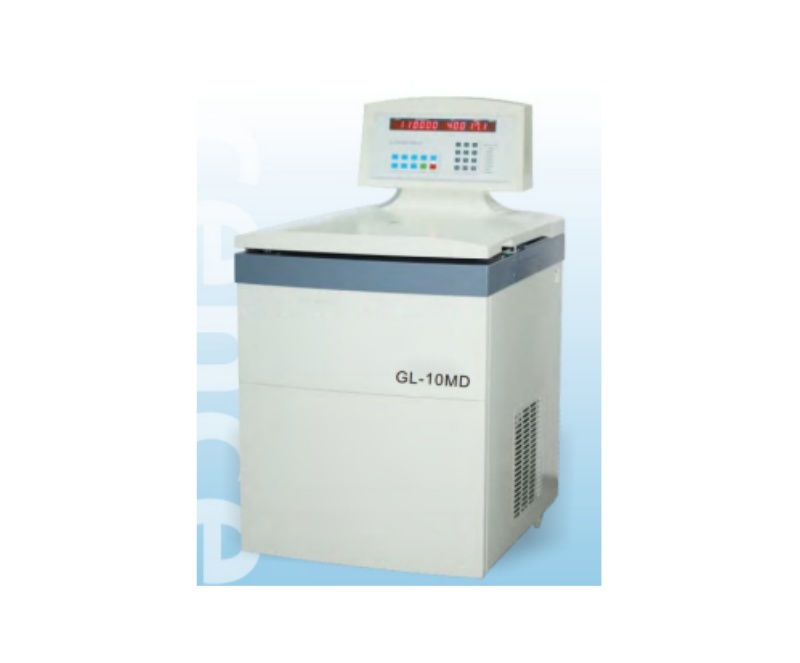

WME GL-10MD Large Capacity Refrigerated Centrifuge
GL-10MD is specially designed for users who require both high capacity and high speed. It is widely used in bioengineering, genetic engineering ,biopharmacy and other fields.
PRODUCT DETAILS
Product advantages
* Max Speed up to 10000r/min, Max RCF up to 18300xg
* Many adapters are available for 4x1000ml swing rotor.
* Microprocessor control,Ac brush-less motor,without carbon dust pollution,low noise, less vibration and service life is long.
* Touch panel,LED display,programmable.It can store many routine programs.
* Providing multiple protection against imbalance, over-temperature and over-speed, and door interlock for safe operation
* The imported refrigerant is environmental and efficient.
* ACC and Dec time can be set freely by users,and RCF value will be calculated automatically.
* The rotor and bucket adopt 7075-T6 aviation grade aluminum alloy, which is hard anodized and corrosion-resistant, Each process from raw materials, processing to finished products is strictly controlled; the material certificate,flaw detection report, tensile test report , chemical composition inspection report have original records.
Technical parameter
Order NO | 0202115000 |
Max Speed | 10000r/min |
Max RCF | 18300xg |
Max Capacity | 6x1000ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1min ~23h59min |
Temperature Setting Range | -20~40°C |
Temperature Accuracy | ±2℃ |
Compressor Unit | Non-CFC unit(R404a) |
Noise | ≤65dB(A) |
Power supply | AC 220+22V 50Hz |
Power Consumption | 5.5kW |
Dimension(W*D*H) | 710x820x1200(mm) |
Packing Dimension (W*D*H) | 920x1040x1520(mm) |
Net Weight | 310kg |
Rotor parameters
 | Rotor Type: Angle rotor Max Capacity: 6x250ml Max Speed:10000r/min Max RCF: 18300xg Order No:0301802200 Adapter:54x1.5ml、30x10ml、30x15ml(conical) 6x50m(conical/round),6x100ml |  | Rotor Type: Angle rotor Max Capacity:6x1000ml Max Speed: 7000r/min Max RCF: 11500xg Order No:0301891091 Adapter:24x50ml(conical/round)、6x250ml、6x500ml |
 | Rotor Type: Angle rotor Max Capacity:6x500m Max Speed: 8000r/min Max RCF: 11620xg Order No:0301802000Adapter:78x1.5ml、60x5ml、42x10ml、42x15ml(conical)、18x30ml、12x50ml (conical/round)6x100ml、6x250ml | ||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type:Swing Rotor Max Speed: 4000r/min Max RCF: 4050xg Max Capacity: 4x1000m Order No:0302850700 (Bucket not included) |
Bucket Max Capacity: 4x1000ml Order No: 0303891027 |
| 4x1x500ml (conical/round) 0304891533(conical)0304891040(round) |
| 4x1x300ml 0304891048 |
| 4x1x250ml(conical) 0304891049 |
| 4x1x200ml Blood bag 0304850527 | ||
| 4x3x100ml 0304891042 |
| 4x5x50ml(conical/round)0304891043(conical)0304891044(round) | ||
| 4x14x15ml(conical/round)0304891045(conical)0304891047 (round) | | 4x37x7ml 0304850522 | ||
| 4x24x5ml 0304850525 |
| 4x28x1.5ml 0304850526 | ||
Rectangular Bucket Max Capacity: 4x1000ml Order No: 0303857106 |
| 4x1x1000ml Blood bag adaptor 0304850602 | / | ||
Microplate Order No: 0303891127 | 4x1x96 Deep-well plate 4x2x96 Microplate Deep-well plate Height<72mm | ||||
