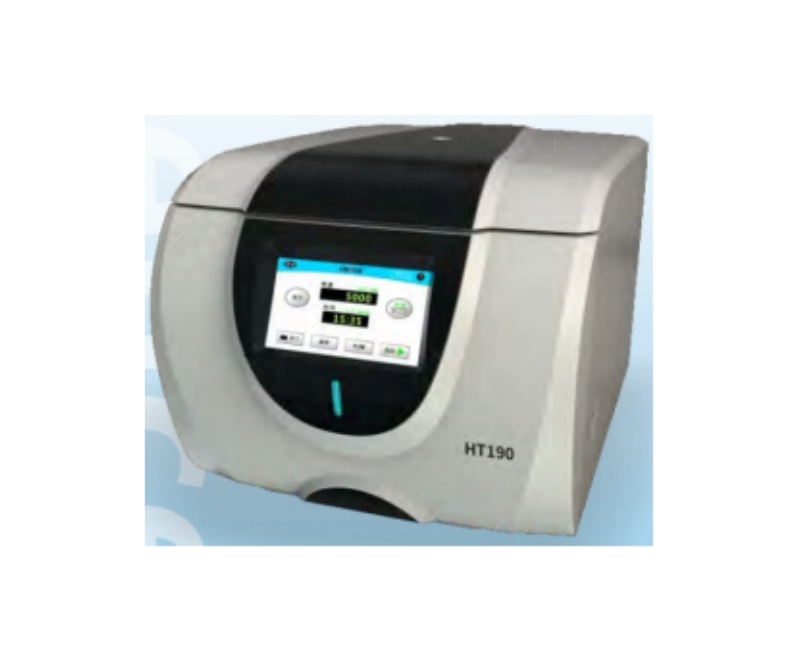

WME HT190 Benchtop High Speed Centrifuge
Benchtop High Speed Centrifuge HT190 provides you with the most cost-effective solution . With EP tube centrifugal force up to 25100xg(19000rpm).
Multiple rotors and adapters are available,with excellent Performance.
Equipped with 0.2ml tube to 250mlbottle, MTP、PCR and deep-well plate.
PRODUCT DETAILS
Product advantages
* 7inches high sensitivity (can be directly operated with gloves) and HD touch screen, easy operation with easy readout. The setting and running parameters can be displayed simultaneously.
* Directly input the setting value like speed, time, RCF, ACC and DEC and so on. it's more convenient and accurate compared with traditional knob operation.
* Automated lid locking system adds to user's safety.
* Multiple programs can be saved for fast operation.t can support 5-steps centrifugation to meet the diversified experimental needs.
* The running records and diagnostic records can be checked directly on the screen.
* Featuring 11 acceleration profiles and 12 deceleration profiles to prevent second emulsion or turbid and achieve the best centrifugal effect (the time on 10th ACC and DEC profile can be customer-designed based on the experiment requirements)
* The fastest acceleration only takes 10 seconds.
* Automatic rotor identification for over-speed protection.
* Providing multiple self-diagnostic protection functions against door interlock malfunction, over-speed operation, motor overheating, misoperation and communication fault etc. to ensure user's safety.
* Front panel and door lid are moulded at one time and streamline designed with ergonomics, which is simple and elegant
* Aerodynamic oval bucket can reduce resistance, noise and energy consumption.
Technical parameter
Order NO | 0203270004 |
Max Speed | 19000r/min |
Max RCF | 25100xg |
Max Capacity | 4x250ml |
Speed Accuracy | ±20r/min |
Timer Range | 1s-99min59sor1min-99h59min |
Timing mode | start timing after reach the set speed, Start timing when spinning, short spinning timing |
Noise | ≤65dB(A) |
Power Supply | AC220V+22V 50/60Hz |
Power Consumption | 650W |
Dimension(W*D*H) | 436x560x380(mm) |
Packing Dimension (W*D*H) | 547x727x432(mm) |
Net Weight | 48kg |
Rotor parameters
| Rotor Type: Angle rotor Max Capacity: 12x1.5/2.2ml Max Speed: 19000r/min Max RCF: 25100xg Order No:0301805020 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity:12x15ml(conical) Max Speed: 12000r/min Max RCF:16098xg Order No:0301891142 Adapter:5ml |
| Rotor Type: Angle rotor Max Capacity: 24x1.5/2.2ml Max Speed: 15500r/min Max RCF:22991xg Order No:0301805520 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity: 6x50ml Max Speed: 12000r/min Max RCF:15285xg Order No:0301805420 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml |
| Rotor Type: Angle rotor Max Capacity: 6x50ml(conical) Max Speed:11000r/min Max RCF: 12843xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle rotor Max Capacity: 4x100m Max Speed: 11000r/min Max RCF: 13000xg Order No:0301805710 Adapter:5ml、10ml、15ml(round/conical) 25ml、50ml(round/conical) |
| Rotor Type: Angle rotor Max Capacity: 30x1.5/2.2mlMax Speed:13000r/min Max RCF: 19090xg Order No: 0301812510 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity:48x1.5/2.2ml Max Speed: 13000r/min Max RCF: 18525xg Order No:0301891144 Adapter: 0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity:6x85ml Max Speed: 11000r/min Max RCF: 13280xg Order No:0301891097 Adapter: 5ml、10ml、15ml(round/conical)25ml、50ml(round/conical) |
| Rotor Type: Angle rotor Max Capacity:40x15ml Max Speed: 5000 r/min Max RCF: 4053xg Order NO:0301891144 |
| Rotor Type: Swing Rotor Max Capacity: 60x1.5ml Max Speed: 14000r/min Max RCF:16400x9 Order No:0301855600 | / | |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF: 3450xg Max Capacity: 4x250ml Order No:0302891099 |
Oval bucket Order No: 0303891081 |
| 4x26x1.5ml 0304891454 |
| 4x10x5ml 0304891456 |
| 4x14x5/7ml 0304891459 |
| 4x13x10ml 0304891461 | ||
| 4x8x15ml(conical) 0304891463 |
| 4x8x15ml 0304891465 | ||
| 4x6x20ml 0304891467 |
| 4x4x50ml(conical) 0304891469 | ||
| 4x4x50ml 0304891471 |
| 4x2x100ml 0304891473 | ||
| 4x1x250ml 0304891475 | ||||
can be customized | |||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4500r/min Max RCF: 3917xg Max Capacity: 4x250ml Order No:0302891099 |
Rectangular bucket Order No: 0303891082 |
| 4x16x1.5ml 0304891477 |
| 4x17x5/7ml 0304891479 |
| 4x12x10ml 0304891481 |
| 4x9x15ml(conical) 0304891483 | ||
| 4x4x50ml(conical) 0304891485 |
| 4x1x100ml 0304891487 | ||
| 4x1x250ml 0304891489 | / | |||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4500r/min Max RCF: 3056xg Max Capacity: 4x100ml Order No:0302891038 |
Bucket Order No: 0303891029 |
| 4x3x10mlBlood collection tube0304852409 |
| 4x1x15ml 0304891119 |
| 4x1x15ml(conical) 0304891118 |
| 4x1x50ml(conical) 0304891114 | ||
| 4x1x50ml 0304891116 | / | |||
Max Speed: 4500r/min Max RCF: 2784xg Max Capacity: 2x2x96well Order No:0302852310 |
Microplate bucket Order NO:0303852351 | 2x6 ELISA microplate | 2x6x96 | can be customized |
2x2 Deep-well plate | 2x2x96 | |||
2x1 Filter plate reagent kit | 2x1x96 |
