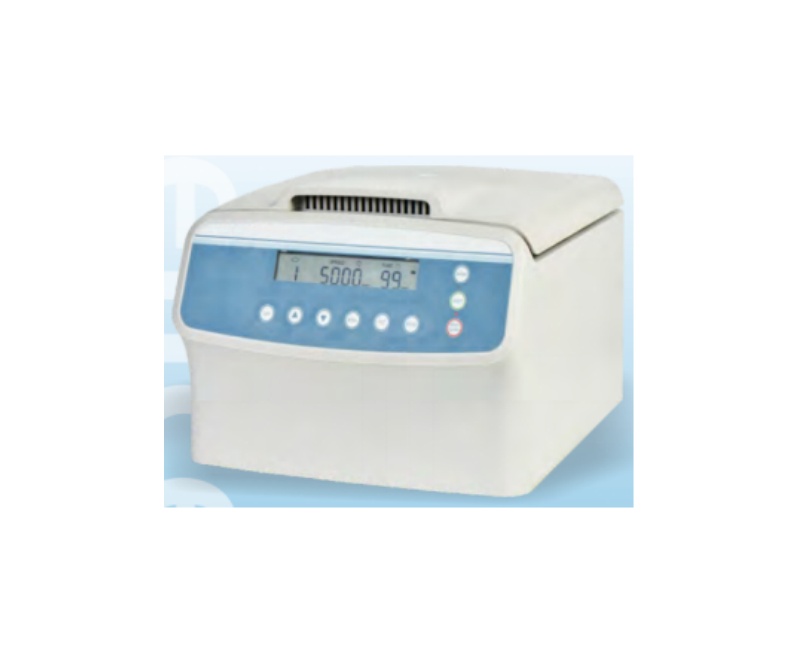

WME L420-A/L500-A/L600-A Benchtop Low Speed Centrifuge
L420-A/L500-A/L600-A Benchtop Low Speed Centrifuge is Specially designed for the clinical research with our years of experience. Very compact footprint to fit on every lab bench.different stainless rotor options to accommodate any type of tube.
PRODUCT DETAILS
Product advantages
* Microprocessor control and DC brushless motor.
* Touch panel and LCD display.
* RCF value can be calculated automatically.
* Save up to 25 user-defined programs.
* Special damping structure to reduce vibration.
* Centrifuge lid with soft-touch lid closure.centrifuge cannot work if the door is open.
* Variety of brackets accommodate different capacity tubes.
Technical parameter
Model | L420-A | L500-A | L600-A |
Order NO | 0205232000 | 0205209000 | 0205234000 |
Max Speed | 4200r/min | 5000r/min | 6000r/min |
Max RCF | 2760xg | 4030xg | 5120xg |
Max Capacity | 12x20ml | 16x15ml | 16x15ml |
Speed Accuracy | ±30r/min | ±30r/min | ±30r/min |
Time Setting Range | 1min~99min | 1min~99min | 1min~99min |
Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
Power Supply | AC 220+22V 50/60Hz | AC 220+22V 50/60Hz | AC 220+22V 50/60Hz |
Power Consumption | 250W | 250W | 250W |
Dimension (W*D*H) | 380x500x300(mm) | 380x500x300(mm) | 380x500x300(mm) |
Packing Dimension (W*D*H) | 465x660x350(mm) | 465x660x350(mm) | 465x660x350(mm) |
Net Weight | 19kg | 19kg | 19kg |
Rotor parameters
L420-A Rotor parameters
| Rotor Type: Angle rotor Max Speed: 4000r/min Max RCF:2200xg Max Capacity: 18x10ml Order No:0301808400 Adapter: 7ml |
| Rotor Type: Angle rotor Max Speed: 4000r/min Max RCF:2200xg Max Capacity:12x10ml Order No:0301808500 Adapter: 5mlBlood collection tube |
Max Speed:4200r/min Max RCF:2760xg Max Capacity: 4x50ml Order No:0302854700 |
Brackets Order No:0303854720 Max Capacity: 4x50ml Adapter:0304891103(15mlconical) | can be customized |
Max Speed:4200r/min Max RCF:2760xg Max Capacity:12x15ml Order No:0302854800 |
Brackets Order No:0303854820 Max Capacity:12x15ml Adapter:0304854806(1.5ml) 0304853532(5ml) 0304853530(10ml) |
Brackets Order No:0303854830 Max Capacity:12x2x5ml Adapter:0304854807(1.5ml) 0304854813(0.5ml) |
Max Speed:4200r/min Max RCF:2760xg Max Capacity:8x10ml16x5ml Order No:0302854900 |
Brackets Order No:0303854920 Max Capacity:8x10ml |
Brackets Order No:0303854930 Max Capacity:8x2x5ml |
L500-A Rotor parameters
| Order No:0301808350 Max Speed: 5000r/min Max RCF:4030xg Max Capacity: 24x10m Adapter:0304808308(1.5ml) |
Order No:0307855201 Max Speed: 4200r/min Max RCF:2760x9 |
Brackets Order No:0303855210 Capacity: 4x50ml 15ml 0304891103 |
Brackets Order No:0303891036 Capacity: 4x4x15ml 1.5ml 0304854806 5ml 0304853532 10ml 0304853530 |
Brackets Order NO:0303855230 Capacity:4x6x5ml 1.5ml0304854807 0.5ml0304854813 |
L600-A Rotor parameters
| Max Speed: 6000r/min Max RCF:5120x9 Max Capacity: 12x15ml Order No:0301808700 |
Order NO: 0307855201 Max Speed: 4200r/min Max RCF:2760xg |
Brackets Order No:0303855210 Capacity: 4x50ml 15ml 0304891103 |
Brackets Order No:0303891036 Capacity:4x4x15ml 1.5ml 0304854806 5ml 0304853532 10ml 0304853530 |
Brackets Order No:0303855230 Capacity: 4x6x5ml 1.5ml 0304854807 0.5ml 0304854813 |
