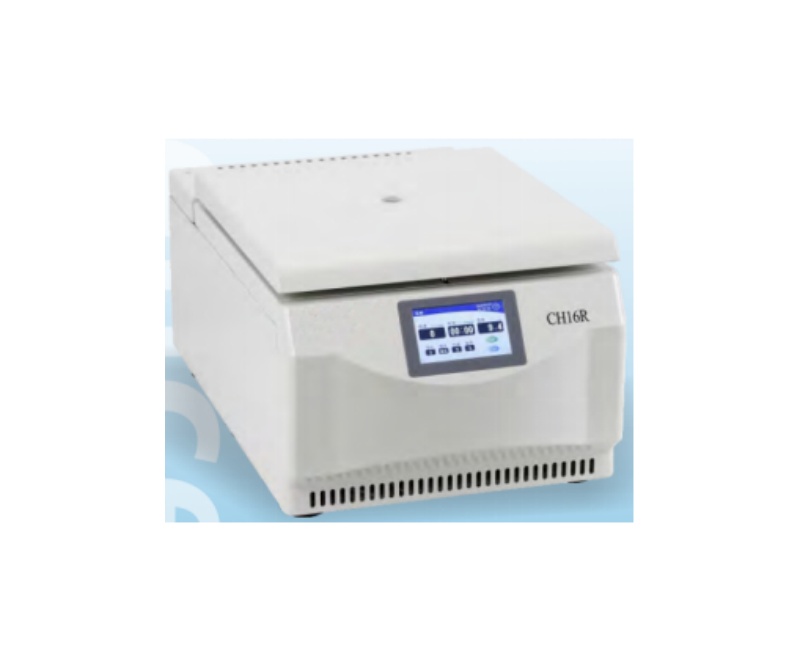

WME CH16R Benchtop Low Speed Refrigerated Centrifuge (Specially for Blood Collection Vehicle)
CH16R refrigerated centrifuge designed for blood collection vehicle.Swing rotor 16x15ml and adapters,accommodate to vacuum blood collection tube,nucleic acid centrifuge tube and10ml 15ml tubes. It's specially suitable for nucleic acid centrifugation detection.Stainless steel Chamber,multiple protection,safe and reliable.The compressor is fully enclosed type and rotary type.CH16Ris really a good choice for blood collection vehicle.
PRODUCT DETAILS
Product advantages
* With unique sucker type foot, it can sucked on the table tightly.
* With 5 inch HD touch screen control, easy- operate and intuitive. The setting parameters and running parameters at a glance.
* Multiple adapters available, it's a compact, versatile and indispensable general purpose centrifuge.
* Environmental friendly compressor is adopted,which has good refrigeration effect and no pollution.
* Multiple protection,include over-speed, over-temperature, lock and so on, to ensure user's safety.
Technical parameter
Order NO | 0204260000 |
Max Speed | 5000r/min |
Max RCF | 3555xg |
Max Capacity | 4x4x15ml or nucleic acid tube |
Speed Accuracy | ±30 r/min |
Time Setting Range | 1min~99min |
Temperature Setting Range | -20℃~40℃ |
Temperature Accuracy | ±1°℃ |
Compressor Unit | High performance compressor unit Environment-friendly refrigerant(134a) |
Noise | ≤65dB(A) |
Power supply | AC 220+22V 50Hz |
Power Consumption | 500W |
Dimension (W*D*H) | 415x625x320(mm) |
Packing Dimension (W*D*H) | 960x530x520(mm) |
Net Weight | 55kg |
Rotor parameters
| Rotor Type: Angle rotor Max Speed: 5000r/min Max RCF: 3555xg Max Capacity: 12x15ml Order NO:0301808740 |
Rotor Type: swing Rotor Max Speed: 4200r/min Max RCF:2958xg Max Capacity: 4x4x15ml Order NO:0302855740 (Brackets not included) |
| Brackets Capacity: 4x50ml Order No:0303855210 Adapter: 15ml(conical) Order NO:0304891103 |
| Brackets Capacity: 4x4x15ml Order No:0303855745 Adapter: 1.5/5/10ml 0304854806 1.5ml 0304854808 5m 0304855729 10ml | |
| Brackets Capacity: 4x6x5ml Order NO:0303855230 Adapter: 1.5/0.5ml 0304854807 1.5ml 0303854813 0.5m |
