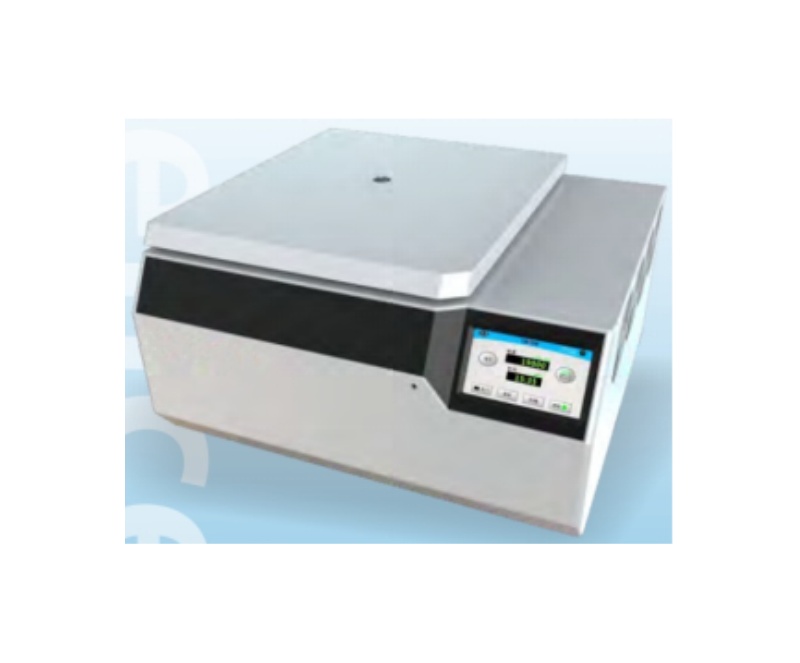

WME CHT210R Benchenp Large Capacity High Speed Refrigerated Centrifuge
CH210R adopt the latest VF compressor with PID dynamic intelligent temperature control technology(Patent NO.z1201922274761.7) and dual channel frequency conversion refrigeration system (Patent NO:zl201922269242.1). It's top level in the world, meet customers' high-precision temperature control experiments and protect temperature sensitive samples Equipped with a variety of aerosol-tight bucket,to ensure safety when separate dangerous samples. It is the first choice for molecular biology, protein, DNA, RNA, cell separation and clinical medicine.
PRODUCT DETAILS
Product advantages
* 7-inch HD touch screen, Setting parameters and running parameters at a glance.
* Input the value directly by touch screen for parameter setting , which is fast and convenient.
* According to the time interval of the experiment the sleep time of the instrument ca be set ( user-defined ), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
* Pre-cooling function available. pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance so the experiment can be carried out once entering the laboratory to save time.
* 100 user-defined program groups can be set and named easily. which is more convenient to call and distinguish different experiments in use so as to realize the repeatability of the experiment.
* 11 Acceleration and 12 Deceleration rates, to achieve best centrifugal effect.
* The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
* AC variable frequency motor, no carbon pollution, maintenance free, long service life and accurate speed control accuracy (less than 10r/min)
Technical parameter
Order No | 0202253006 |
Max Speed | 21000r/min |
Max RCF | 32752xg |
Max Capacity | 4x750ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1s~99min59s/1min~99h59min |
Timing mode | Start timing,Speed timing,Continuous timing |
Temperature Setting Range | -20~40°C |
Temperature Accuracy | Temperature controlled to 4℃+0.5'C at max speed |
Pre-cooling function | Yes |
Compressor Unit | VF compressor unit(R134a) |
Noise | ≤65dB(A) |
Short Spinning | Yes |
Rotor Identification | Yes |
Power Supply | AC220+22V 50/60Hz |
Power Consumption | 1.6kW |
Dimension(W*D*H) | 713x681x398(mm) |
Packing Dimension (W*D*H) | 860x810x620(mm) |
Net Weight | 95kg |
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 12x1.5/2.2ml Max Speed: 21000r/min Max RCF: 30642xg Order No:0301805020 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x15ml(conical) Max Speed: 14000r/min Max RCF: 21913xg Order No:0301891142 Adapter:5ml(conical) |
| Rotor Type: Angle Rotor Max Capacity:12x10ml Max Speed:15000r/min Max RCF:23120xg Order No:0301805310 Adapter:1.5ml、5ml |
| Rotor Type: Angle Rotor Max Capacity: 6x30ml Max Speed:15000r/min Max RCF: 23120xg Order No:0301891095 Adapter:5ml、10ml |
| Rotor Type: Angle Rotor Max Capacity: 6x50ml Max Speed:13500r/min Max RCF: 19354xg Order No:0301805420 Adapter:1.5ml、5ml、10ml、15ml、20ml.25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity:6x50ml (conical) 50ml round bottom adapter as gift Max Speed:13000r/min Max RCF: 17947xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity:12x5ml Max Speed: 16500r/min Max RCF: 19166xg Order No: 0301891235 Adapter:0.5ml、1.5ml |
| Rotor Type: Angle Rotor Max Capacity: 30x1.5/2.2ml Max Speed: 16000r/min Max RCF:28918xg Order No: 0301812510 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 48x1.5/2.2m Max Speed: 15000r/min Max RCF:24663xg Order No:0301812830 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity:6x100ml Max Speed: 10000r/min Max RCF: 11960xg Order No:0301891099 Adapter:5ml、10ml、25ml.15ml(conical/round)、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity: 24x1.5/2.2ml Max Speed:18500r/min Max RCF: 32752xg Order No:0301891236 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml(conical) 50ml round bottom adapter as gift Max Speed: 11000r/min Max RCF: 14100xg Order No:0301891237 Adapter:1.5ml、5ml、10ml、15m、20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml Max Speed:12000r/min Max RCF: 15615xg Order No:0301891253 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml | / | |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3345xg Max Capacity: 4x500ml Order No:0302850110 (Bucket not included) |
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order No: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml(conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7mlVaccum blood collection Tube 0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 |
| 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 | | 4x12x15ml (conical/round) 0304891582(conical) 0304891779(round) | ||
| 4x20x10ml 0304891077 |
| 4x31x5/7ml Vaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
Can be customized | |||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3500xg Max Capacity: 4x750ml Order No:0302891036 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight round bucket Order No: 0303891006 |
| 4x1x500ml (conical/flat) 0304891035(conical) 0304891036(flat) |
| 4x1x250ml (conical/flat) 0304891562(conical)0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml (conical/round) 0304891003(conical) 0304891004(round) |
| 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml (RIA tube)0304891166 |
| 4x56x1.5ml 0304891025 | ||
Rectangular Bucket Order No: 0303891002 |
| 4x9x50ml (conical/round) 0304891015(conical) 0304891016(round) |
| 4x19x15ml (conical/round) 0304891012(conical)0304891704(round) | |
| 4x30x10ml 0304891709 |
| 4x38x5/7ml Vaccum blood collection tube 0304891017 | ||
Microplate bucket Order No: 0303891147 | 4x2x96 Deep-well plate 4x4x96 Microplate Plate height in totals67mm | ||||
