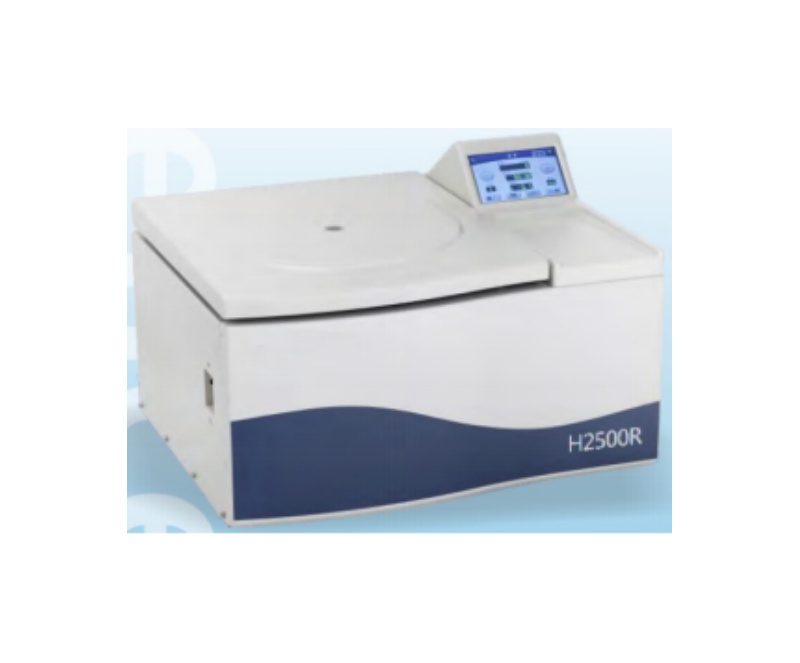

WME H2500R Benchtop High Speed Refrigerated Centrifuge
H2500R is a intelligent centrifuge with international advanced level.Rotors can be installed rapidly and dismantled without tools.with super strong and intelligent control system, it is the preferred product for molecular biology, protein, DNA, RNA, cell separation and clinical medicine
PRODUCT DETAILS
Product advantages
* Convenient installation of the rotor without the help of any tools,just put rotors on Rotor shaft without screw fixing or buttons operation.
* 7-inch HD touch screen ,easy operation and intuitive display.The setup and running parameters can be displayed simultaneously.
* Large capacity data storage can store several months' running datas,fault records,etc. it is convenient for tracking running information.Users can edit hundreds of self-defined running programs, and describe programs in detail.
* Super control system to offer the function of 5-steps gradient separation, booking start, sample ID,curve model, program mode and Chinese-English shift
* Strong safety performance, the user management function prevent programs from unexpected modification or deletion
* Safety and reliable centrifugation, max speed up to 25000rpm, and many rotors are available to choose from.
* The protective functions of rotor identification, imbalance, lid protection overtemperature and overspeed for safe operation.
* Featuring 10 ACC and 11 DEC rate to prevent second emulsion or turbid.
Technical parameter
Order NO | 0202170000 |
Max Speed | 25000r/min |
Max RCF | 50560xg |
Max Capacity | 6x100ml |
Speed Accuracy | ±10 r/min |
Time Setting Range | 1min~99h59min |
Timing mode | Start timing,Speed timing,Continuous timing |
Temperature Setting Range | -20~40°C |
Temperature Accuracy | ±1℃ |
Compressor Unit | Non-CFC unit(R404a) |
Noise | ≤62dB(A) |
Power supply | AC 220+22V 50Hz |
Power Consumption | 1500W |
Dimension (W*D*H) | 710x600x480(mm) |
Packing Dimension (W*D*H) | 1022x712x630(mm) |
Net Weight | 95kg |
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 12x1.5/2.2m Max Speed:25000r/min Max RCF: 44720xg Order No:0301811700 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity:12x15ml(conical) Max Speed: 14000r/min Max RCF: 21912xg Order No:0301811800 Adapter:5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x10ml Max Speed: 19000r/min Max RCF:36715xg Order No:0301811900 Adapter:1.5ml、5ml | | Rotor Type: Angle Rotor Max Capacity: 6x50ml Max Speed:16500r/min Max RCF:28854xg Order No:0301812000 Adapter:1.5ml、5ml、10ml、15ml、20ml.25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity:6x50ml(conical) 50ml round bottom adapter as gift Max Speed:15000r/min Max RCF: 24150xg Order No:0301811100 Adapter: 15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml Max Speed:16000r/min Max RCF:27762xg Order No: 0301811200 Adapter:1.5ml、5ml、10ml、15m、20m1、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 24x1.5/2.2ml Max Speed:23000r/min Max RCF:50560xg Order No:0301811300 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 48x1.5ml Max Speed: 19000r/min Max RCF:38987xg Order No:0301811400 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 6x100ml Max Speed: 13500r/min Max RCF:21800xg Order No:0301811500 Adapter:5ml、10ml、15ml(conical/round) 25ml、50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity:6x30ml Max Speed:20000r/min Max RCF:35328xg Order No:0301811600 Adapter:5ml、10ml |
