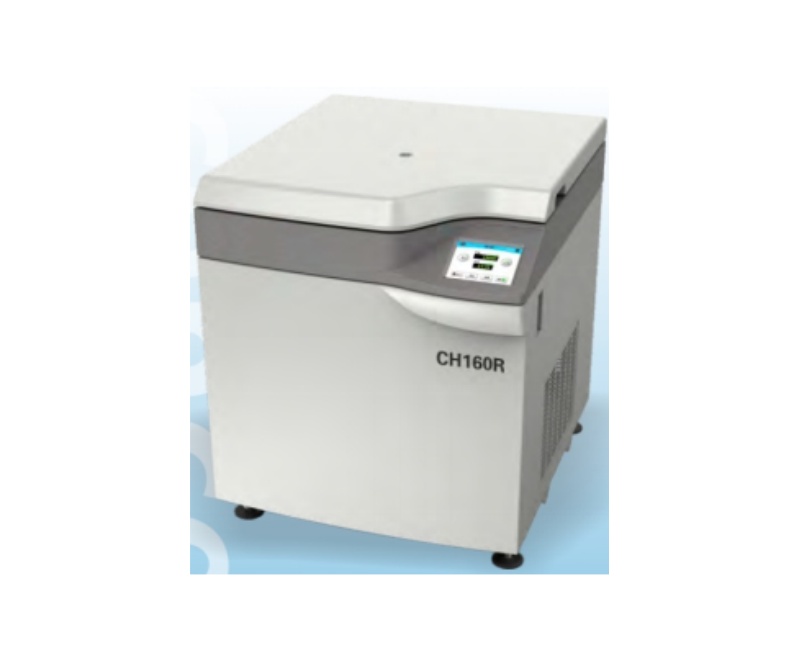

WME CH160R(new)Large Capacity High Speed Refrigerated Centrifuge
CH160R centrifuge is extremely versatile and powerful.Swing rotor 4x1000ml (rectangular bucket), it can spin up to 40x50ml conical tube,96x15mlconical tube and148x10ml, 196x5/7ml vacuum blood collection tube,20 PCS MTP in one cycle.So that a rotor can do multiple experiments without replacing the bucket. In addition, angle rotor 6x250ml and 8x50ml can realize high-speed centrifugation. It's a universal centrifuge for different lab application.
PRODUCT DETAILS
Product advantages
* High-throughput Sample Processing
Swing rotor: Multiple rotor and adapters available,max capacity 4x1000ml, it can spin up to 36x50ml conical tube or 196x5/7ml vacuum blood collection tube in once cycle.
Angle Rotor : 9 rotor options,such as 6 x250ml. 8 x50ml. 48 x1.5ml. Max RCF up to27650xg,suitable for 0.2-250ml high-speed centrifugation of molecular biology.
* Energy Saving ,Frequency conversion Technology
Frequency conversion dual channel control, refrigeration through frequency regulation,energy saving and high efficiency.According to the time interval of the experiment, the sleep time of the instrument can be set, which can ensure good refrigeration effect as well as save energy and increase the service life of the instrument.
* Built-in safety
Featuring multiple protection,Such as automatic rotor identification,imbalance protection,over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
* Reliable Material
The rotor adopt 7075-T6 aviation grade alloy aluminum and titanium alloy ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled.The flaw detection report ,tensile test report , chemical composition test report and processing test report can be provided.
* Extensible
The system adopts unified and standard Ethernet communication interface and provides key parameter point table, to facilitate system expansion and bring data into system monitoring.
* Programmable
Save up to 100 user-defined program. Users can name each program to distinguish it.Each program can be divided into 5 steps (set speed, time, temperature ),to meet the diversified experimental needs.
* ACC/DEC Rates
Featuring 10 acceleration and 1’ deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
* Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key
* Powerful System Setting Function
Powerful control system allows easy data capture, storage, and processing.
Technical parameter
Order NO | 0202240000 | |||
Max Speed | Angle Rotor | 16000r/min | Swing Rotor | 5700r/min |
Max RCF | Angle Rotor | 27648xg | Swing Rotor | 5103xg |
Max Capacity | Angle Rotor | 6x250ml | Swing Rotor | 4x1000ml |
Time Setting Range | two mode 1min-99h59min,1s-99min59s optional, default mode 1min-99h59min | |||
Timing mode | Start Timing after Spinning,Start Timing after Reach Setting Speed, Continuous Timing, Operation at an appointed Time | |||
Temperature Setting Range | -20℃~40℃,Setp 1'cajustable | |||
Temperature Accuracy | ±2℃ | |||
Speed Accuracy | ±10r/min | |||
Rotor Identification | Yes | |||
Imbalance Protection | Yes | |||
Pre-cooling function | Yes | |||
Computer Control | RS485 or RS232 | |||
Protection Function | Imbalance Protection,Rotor-identification, Door Lid Anti Pinch Protection, Motor Overheating Protection,Over-speed Protection,Over-temperature Protection | |||
Automatic Door Lid Opening | Yes | |||
Power supply | AC220+22V 50Hz | |||
Power Consumption | 3.5kW | |||
Noise | ≤65dB | |||
Dimension(W*D*H) | 590x730x850(mm) | |||
Packing Dimension(W*D*H) | 750x880x1200(mm) | |||
Net Weight | 180kg | |||
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 48x1.5m Max Speed: 16000r/min Max RCF:27648xg Order No:0301812820 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle Rotor Max Capacity: 12x15ml(conical) Max Speed:14000r/min Max RCF: 21913xg Order No:0301891242 Adapter: 5ml |
| Rotor Type: Angle Rotor Max Capacity: 20x10ml Max Speed: 14000r/min Max RCF: 21480xg Order No: 0301891195 Adapter:5ml |
| Rotor Type: Angle Rotor Max Capacity:6x250ml Max Speed: 10000r/min Max RCF: 15604xg Order No: 0301802260 Adapter:1.5ml、10ml、15ml(conical)50ml (conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity: 4x250ml Max Speed: 11000r/min Max RCF:18174xg Order No:0301891247 Adapter:1.5ml、10ml、15ml(conical) 50ml(conical/round)、100ml |
| Rotor Type: Angle Rotor Max Capacity: 6x100ml Max Speed: 14000r/min Max RCF:23450xg Order No: 0301891245 Adapter:1.5ml、10ml、15ml(conical)、 50ml(conical/round) |
| Rotor Type: Angle Rotor Max Capacity:12x30ml Max Speed:14000r/min Max RCF:24100xg Order No:0301891197 Adapter:15ml(conical) |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml Max Speed:15500r/min Max RCF:26050xg Order No: 0301891243 Adapter:1.5ml、5ml、10ml、15ml20ml、25ml、30ml |
| Rotor Type: Angle Rotor Max Capacity: 8x50ml(conical) 50ml round bottom adapter as gift Max Speed:14000r/min Max RCF:22790xg Order No:0301891199 Adapter:1.5ml、5ml、10ml、15ml、20ml、25ml、30ml | / | |
|
|
Rotor Type: swing Rotor Max Speed: 5700r/min Max RCF: 5103xg Max Capacity: 2x5Microplate Order No:0302891132 | Bucket Order No:0303891151 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200r/min Max RCF: 4122xg Max Capacity: 4x1000ml Order No:0302880880 (Bucket not included) | Rectangular Bucket Max Capacity: 4x1000ml Order No: 0303880882 |
| 4x7x100ml 0304891198 |
| 4x10x50ml(conical) 0304891020 |
| 4x24x15ml(conical) 0304891540 |
| 4x37x10ml 0304891748 | ||
| 4x49x5/7ml 0304891747 |
| 4x2x96 Deep-well plate 4x6x96 Microplate Height<90mm 0304891569 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4200 r/min Max RCF: 3860xgMax Capacity: 4x750ml Order No:0302851330 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight round bucket Order No: 0303891006 |
| 4x1x500ml (conical/flat) 0304891035(conical) 0304891036(flat) |
| 4x1x250ml (conical/flat) 0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml (conical/round) 0304891003(conical) 0304891004(round) | | 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7ml Vaccum blood collection tube 0304891728 | ||
| 4x37x5ml(RIA tube) 0304891166 |
| 4x56x1.5ml 0304891025 | ||
Rectangular Bucket Order NO: 0303891002 | | 4x9x50ml (conical/round) 0304891015(conical) 0304891016(round) |
| 4x19x15ml (conical/round) 0304891012(conical) 0304891704(round) | |
| 4x30x10ml 0304891709 |
| 4x38x5/7ml Vaccum blood collectiontube 0304891017 | ||
Microplate bucket Order No: 0303891147 | 4x2x96 Deep-well plate 4x4x96 Microplate Plate height in totals67mm | ||||
