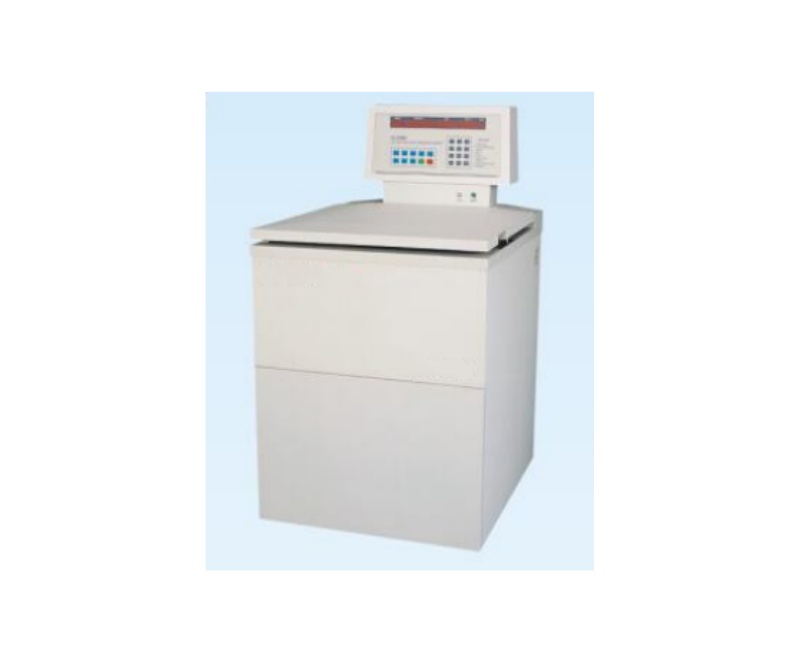

High Capacity Refrigerated Centrifuge WME GL-10MD
WME GL-10MD is specially designed for users who require high capacity and high speed.It can be widely used in the fields of bioengineering, genetic engineering and biopharmacy.
PRODUCT DETAILS
Features
| Max. Speed is 10000RPM and Max.RCF is 18300xg.
Microprocessor control,AC brushless motor,without carbon dust pollution,low noise and service life is long.
Touch screen and LED display. Users can set Acc/Dec speed time freely, calculate the RCF value automatically, and ensure person and machine safety. | The protective functions of electronic door interlock,imbalance, overtemperature and overspeed for safe operation. It is programmable and can store many programs.
The imported refrigerant is environmental and efficient. Many types of adaptors are available for4x1000ml swing rotor. |
Technical Parameters
Model | WME GL-10MD |
Order No. | 115000 |
Max. Speed | 10000rpm |
Max. RCF | 18300xg |
Max. Capacity | 6x1000ml |
Speed Accuracy | ±10rpm |
Time Setting Range | 1min to 23h:59min |
Temp Setting Range | −20℃ to 40℃ |
Temp Accuracy | ±1℃ |
Noise | <65dB(A) |
Power Supply | AC220V±22V 50Hz 30A |
Wattage | 5.5Kw |
Dimension (W x D x H) | 710x820x1200mm |
Package Dimension (W x D x H) | 920x1040x1520mm |
Net Weight | 310kg |

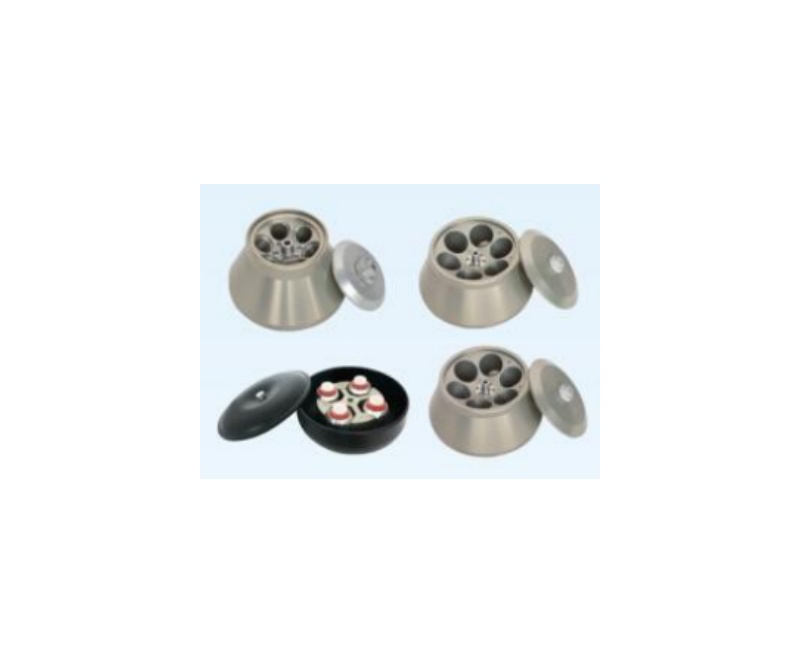

Angle Rotor
 | Order No.:802200 Max.Speed: 10000rpm Max.RCF:18300xg Rotor Capacity: 6x250ml Adaptor: 800609(9x1.5ml) 800608(5x10ml) 800607(5x15ml) conic 800606(50ml) 800605(100ml) |  | Order No.:802000 Max.Speed: 8000rpm Max.RCF:11620xg Rotor Capacity: 6x500ml Adaptor: 800705(250ml) 800706(100ml) 800707(50ml) 800708(7x15ml conical) 800709(13x1.5ml) 800710(10x5ml) 800711(50ml conical) 800712(2x50ml conical) 800713(7x10ml) |
 | Order No.:802100 Max.Speed: 7000rpm Max.RCF:11500xg Rotor Capacity: 6x1000ml Adaptor: 802105(4x50ml) 802106(4x50ml) conica 802110(250ml) 802111(500ml) |  | Order No.:536130 (high speed) Cap.:1000ml |
 | Order No.:536220 Cap.:500ml |
Angle Rotor
Order No.:850700 Max.Speed: 4000rpm Max.RCF:4050xg Cap.:4x1000ml(round bucket) |
850531 4x1000ml round bucket |
850514 4x500ml |
850515 4x300ml |
850516 4x3x100ml |
850517 4x5x50ml conical | ||
850518 4x5x50ml |
850519 4x14x15ml conical | ||
850520 4x14x15ml |
850522 4x37x7ml | ||
850525 4x24x5ml evacuated tube |
850526 4x28x1.5ml | ||
850527 4x200ml blood bag |
850535 4x250ml conical |
