High Capacity Refrigerated Centrifuge WME CL8R
WME CL8R high capacity refrigerated centrifuge is brand new intelligent centrifuge, which is developed jointly with the famous centrifuge manufacturer and national key university . It has passed the MCA test and rotor service life test by authoried institues in the United States. Max. capacity is 6x2400ml swing rotor, which is the preferred product in the fields of blood bank, pharmacy and biological products.
PRODUCT DETAILS
Features
| Through the USB port (setup by customer option) the operation data can be copied. At the same time the internal CF card can save 250 runs and 100 diagnostic records, which is easily accesable to customers. It also can be linked into the network to realize the local computer management system in bland bank and biopharmacy company by standard port 8inch HD touch screen control is convienent and visual for operation. The setup and running parameters can be displayed on the screen simultaneously. Blood bank: It can spin 12 x 400ml/500ml triple or quadruple blood bags, or 24 x 200ml triple blood bags. | The max. speed of angle rotor 6x1000ml is up to 8000rpm, which max. RCF is 14472xg.
Safe and reliable: The protective functions of rotor identification, imbalance, overtemperature and overspeed for safe operation. The whole machine unit has passed the MCA tess as well as the rotor has passed the sevice life tes tby the authorized institues in US.
The bottles and adaptors are made of high strength PP, which have long performance life and passed 480 cycles test without deformation. It is autoclavable. It can hold 6 x 2400ml bottles, and the total capacity would be 14400ml for one centrifugation |

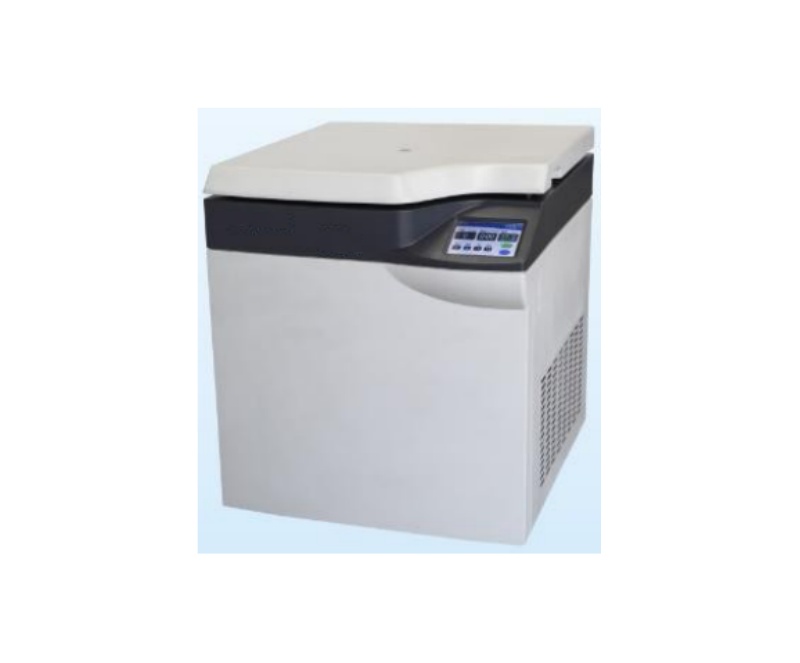

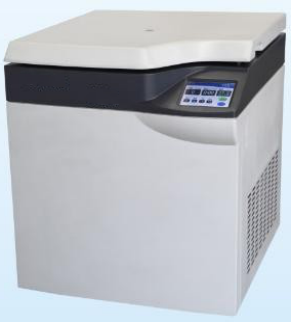

Product pictures

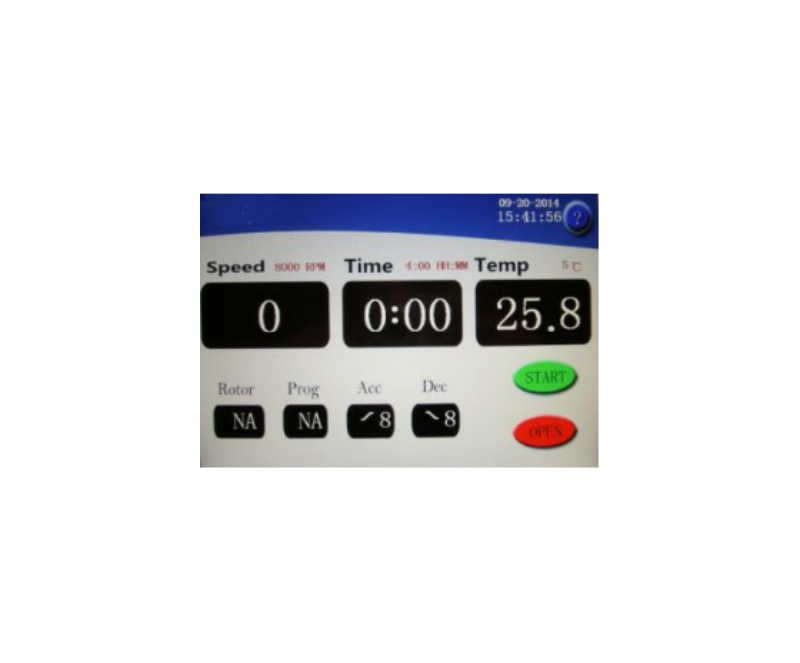

 | Control Screen
|
Technical Parameters
Model | WME CL8R | Temp Accuracy | ±1℃ |
Order No. | 258000 | Compressor Assembling Unit | Non-CFC (R404a) |
Max. Speed | 8000rpm | Noise Level | <65dB(A) |
Max. RCF | 14472xg | Power Supply | AC220V±22V 50Hz 50A |
Max. Capacity | 6x2400ml | Wattage | 7.5Kw |
Speed Accuracy | ±10rpm | Dimension (W x D x H) | 870x990x1000mm |
Time Setting Range | 1min to 99min59s | Package Dimension(W x D x H) | 1080x1310x1340mm |
Temp Setting Range | −20℃ to40℃ | Net Weight | 575kg |

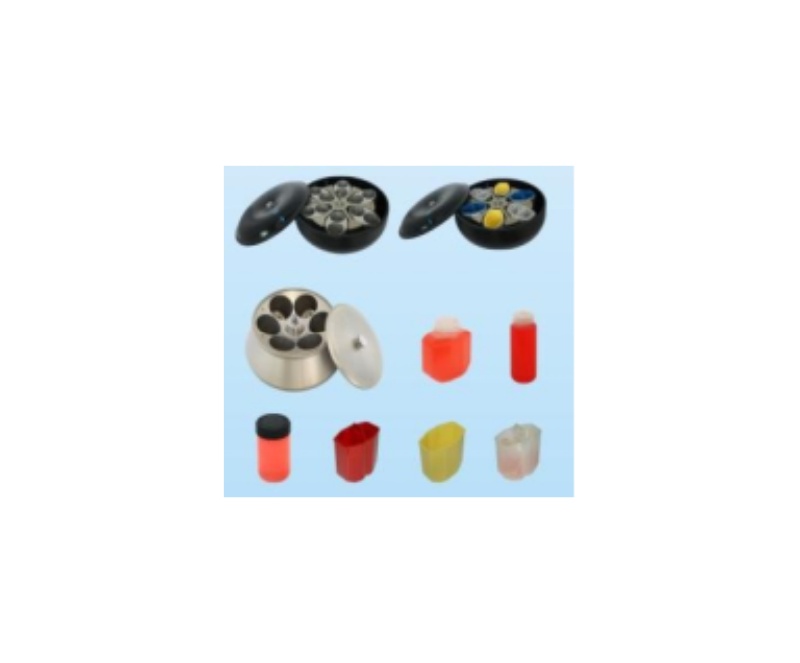

Rotor Options
NO.1
|  |  |  |
| Order No.:AX80100 Max.Speed: 8000rpm Max.RCF: 14472xg Rotor Capacity: 6x1000ml | 536130 1000ml bottle | AX80110 Adaptor 6 x 500ml | 536220 500ml bottle |
NO.2
|
AX80207 6*2400ml |
AX80233 6*2*450ml |
AX80234 6*3*300ml |
Order No.: AX80200 Max.Speed: 4500rpm Max.RCF: 6756xg Rotor Capacity: 6x2400ml |
AX80235 6*2*500ml |
536160 2400ml bottle | |
NO.3
|  |  | Adaptors can be customized |
Order No.: AX80200 Max. Speed: 4500rpm Max. RCF: 6315xg Rotor Capacity: 6x2x1000ml | AX80206 6 x 2 x 1000ml | 536190 1000ml bottle |
