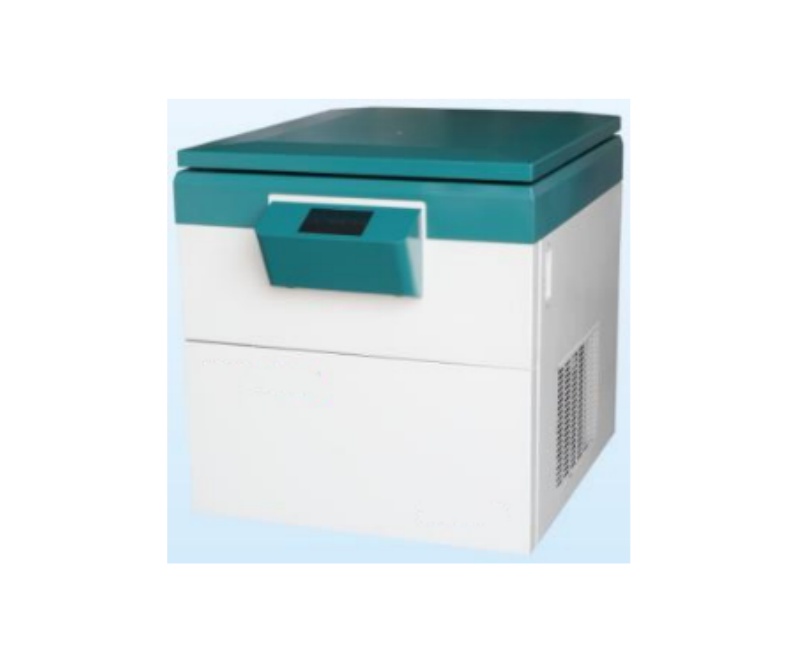

High Capacity Refrigerated Centrifuge WME L720R-3
WME L720R-3 is high capacity refrigerated centrifuge which is with advance technology and reliable performance. Large LCD screen display and accessable UI. Max. capacity is 6x2400ml swing rotor, which is the preferred product in the fields of blood bank, pharmacy and biological products.
PRODUCT DETAILS
Features
| Easy Operation Touch panel, microprocessor control and large LCD display. Displays the set value and the actual operation parameters simultaneously by Chinese/English operation system. Speed, RCF, temperature and time can be set freely. RCF value can be calculated automatically. It is programmable and can store 16 programs in memory. The parameters can be revised freely during a run. There are “0” to “9” Acc/Dec profiles to reach perfect centrifugation effect. It shows the curve sof speed rising and declining, integral and temperature. It also can be linked into the network to realize the local computer management system by standard port Long Service Life: Non-CFC refrigeration system (France Tecumseh Compressor Unit filled with R404a refrigerant) for the purpose of environment protection. Directly diriven by high torque and frequency- conversion motor without carbon dust pollution, which can prolong the service life. | Safety and Reliability: The protective functions of electronic door interlock, overtemperature and overspeed for safe operation. Three tiers protective sleeves for the safety of people and instrument.
Super Capacity: It can spin twelve 500ml triple or quadruple blood bags. This capacity for blood bag separation is the biggest one in domestic market. If it hold 2400ml bottle, the total capacity would be 14400ml. And 6×2×1000ml swing rotor can meet the request of biopharmacy. Wide Application: It can be widely used in the fields of pharmacy, biological products |
Technical Parameters
Model | WME L720R-3 |
Order No. | 180000 |
Max. Speed | 7200rpm |
Max. RCF | 12166xg |
Max. Capacity | 6x2400ml |
Speed Accuracy | ±10rpm |
Time Setting Range | 1min to 99min59s |
Temp Setting Range | −20℃ to 40℃ |
Temp Accuracy | ±1℃ |
Noise | <65dB(A) |
Power Supply | AC220V±22V 50/60Hz 50A |
Wattage | 7.5Kw |
Dimension (W x D x H) | 870x1020x970mm |
Package Dimension(W x D x H) | 1080x1310x1340mm |
Net Weight | 545kg |
Product pictures
 |  |

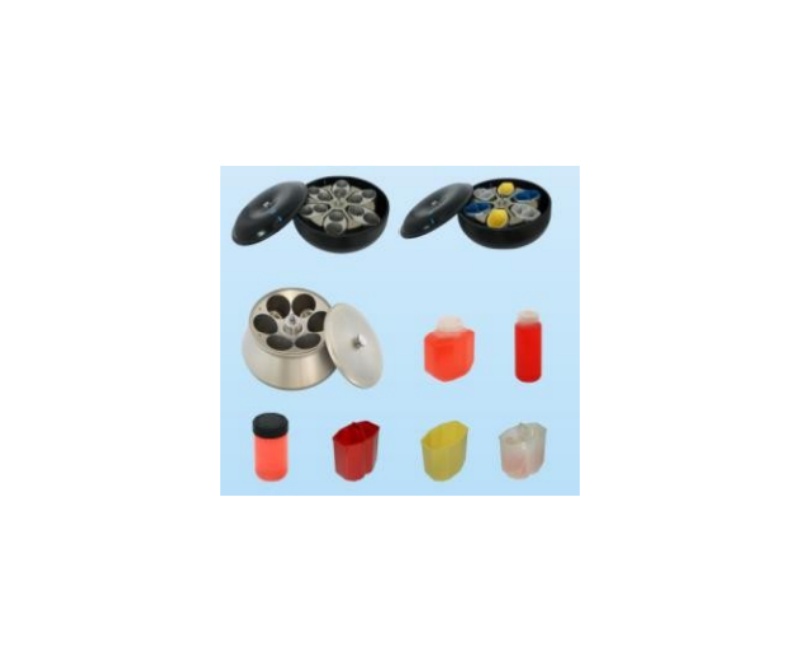

Angle Rotor
NO.1
|  |  |  |
| Order No.: AX80100 Max.Speed: 7200rpm Max.RCF: 12166xg Rotor Capacity: 6*1000ml | 536130 1000ml bottle | AX80110 Adaptor 6*500ml | 536220 500ml bottle |
Swing Rotor
NO.2
|
AX80207 6 x 2400ml |
AX80233 6 x 2 x 450ml |
AX80234 6 x 3 x 300ml |
Order No.: AX80200 Max.Speed: 4000rpm Max.RCF: 5600xg Rotor Capacity: 6x2400ml |
AX80235 6 x 2 x500ml |
536160 2400ml bottle | |
NO.3
|  |  | Adaptors can be customized |
Order No.: AX80200 Max. Speed: 4000rpm Max. RCF: 5000xg Rotor Capacity: 6x2x1000ml | AX80206 6 x 2 x 1000ml | 536190 1000ml bottle |
