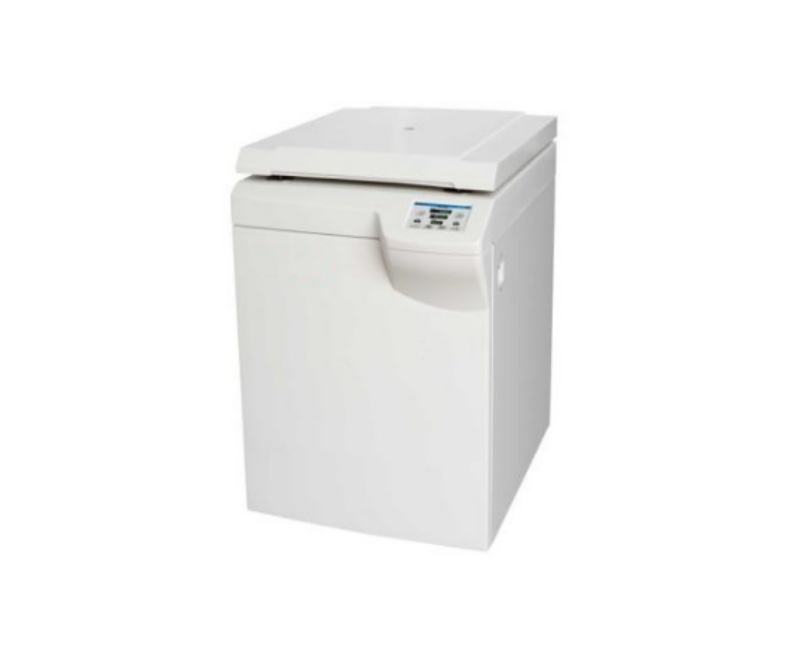

Large Capacity Refrigerated Centrifuge WME CL6R
WME CL6R is a newest model made by Wondcon, which is very advanced in China market. Swing rotor 6x1000ml(round bucket) and 6x1000ml(oval bucket) is the preferred instrument in the fields of biopharmacy, biological products and blood bank.
PRODUCT DETAILS
Features
It can spin six 400ml triple blood bags and from 1.5ml tubes to quadruple blood bags.
The refrigerant used meet the environmental requirements. The temprature setting range is −20℃ to 40℃. It can keep the temperature below −4℃ at max. speed. The protective functions of electronic door interlock, imbalance, overtemperature and overspeed for safe operation. | Low noise (less than 65dB) and vibration. It can store 99 programs and 100 records/fault information.Through the USB port (setup by customer option) the operation data can be copied.The setup and running parameters can be displayed on the screen simultaneously. |
Technical Parameters
Model | WME CL6R |
Order No. | 257000 |
Max. Speed | 6000rpm |
Max. RCF | 6680xg |
Max. Capacity | 6x1000ml |
Speed Accuracy | ±10rpm |
Time Setting Range | 1min to99h59min |
Temp Setting Range | −20℃ to 40℃ |
Temp Accuracy | ±1℃ |
Compressor Assembling Unit | Non-CFC unit(R404a) |
Noise | <65dB(A) |
Power Supply | AC220V±22V 50Hz 25A |
Wattage | 5.5Kw |
Dimension (W x D x H) | 730x930x960mm |
Package Dimension(W x D x H) | 920x1040x1560mm |
Net Weight | 260kg |

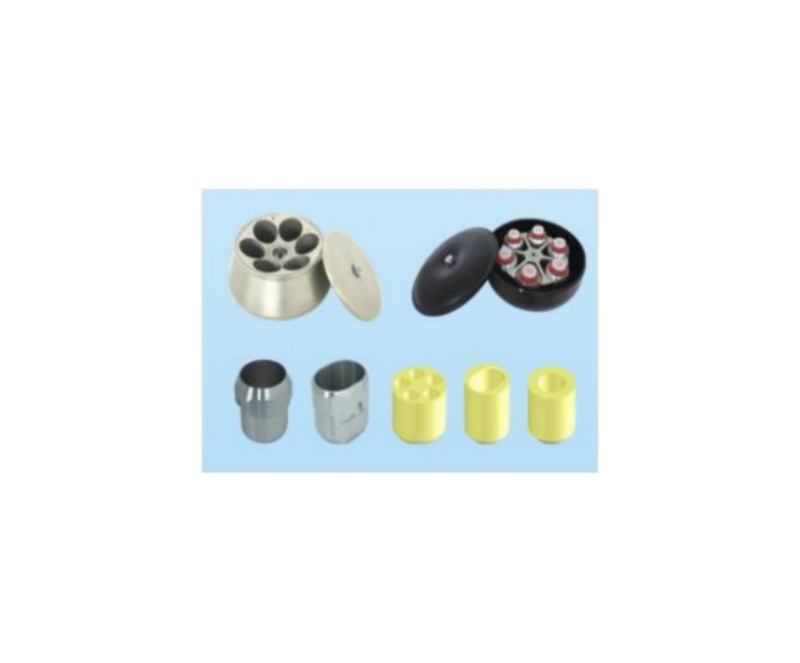

Rotor Options
NO.1
Order No.: 801900 Max.Speed: 6000rpm Max.RCF: 6680xg Rotor Capacity: 6x500ml |
800705 6 x 250ml |
800708 6 x 7 x15ml falcon |
800711 6 x 50ml falcon |
800706 6 x 100ml |
800710 6 x 10 x 5ml |
800713 6 x 7 x 10ml | |
800707 6 x 50ml | Adaptors can be customized | ||
NO.2
Order No.: 850500 Max.Speed: 4200rpm Max.RCF: 5100xg Rotor Capacity: 6x1000ml |
850530 6 x 1000ml |
850514 6 x 500ml |
850520 6 x 14 x 15ml |
850515 6 x 300ml |
850522 6 x 37 x 7ml | ||
850516 6 x 3 x 100ml |
850525 6 x 24 x 5ml | ||
850517 6 x 5 x 50ml falcon |
850526 6 x 28 x 1.5ml | ||
850518 6 x 5 x 50ml |
850527 6x 200ml blood bag | ||
850519 6x 14 x 15ml falcon |
850535 6 x 250ml falcon | ||
850610 6 x 1000ml |
850602 6 x 1000ml | Adaptors can be customized |
