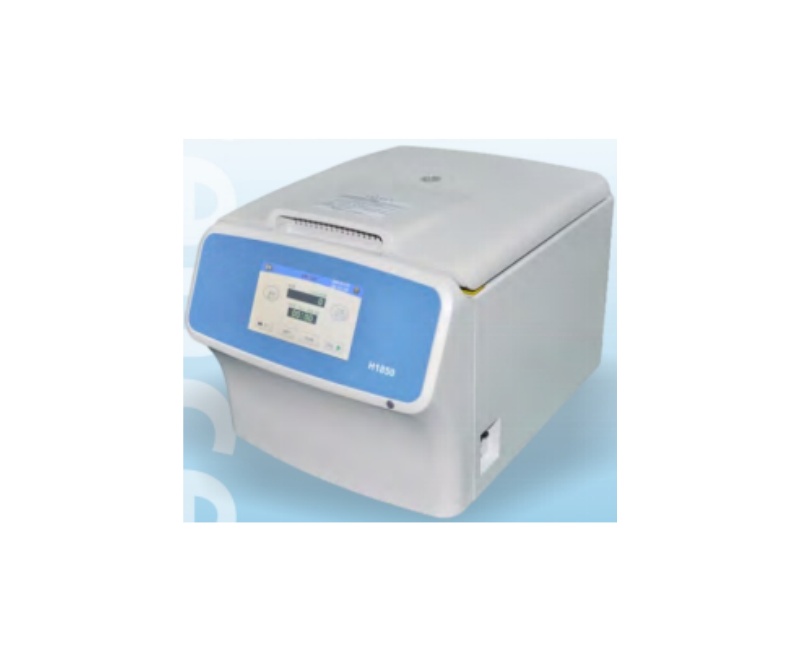

WME H1850 Benchtop High Speed Centrifuge
15 rotors and many kinds of adapters are available for H1850.6x50ml (round/conical)are widely used among them.It has high speed rotor(18500rpm)and high capacity rotor(4x100ml).The special wind deflectorcan keep the sample in a good state,and the damping system can reduce noise, ensure stable operation.
PRODUCT DETAILS
Product advantages
* Equipped with 7-inch full touch screen simple interface and all parameters at a glance. Stepless speed adjustment, automatic conversion of centrifugal force, display on the same screen.
* multiple program memories users can simply name each programs, which is more convenient to call programs when using.
* Automatic identification system for 15 magnetic rotors. it has 12x1.5/2ml angle rotor ( Max speed: 18500rpm), as well as4x100ml swing rotor ( different adapters available).
* 10 individual acceleration and 11 deceleration stages, and free parking time can be set.
* Providing multiple self-diagnostic protection functions against door interlock malfunction, over-speed operation, motor overheating, misoperation and communication fault etc. to ensure user's safety.
Technical parameter
Model | H1850 |
Order NO | 0203270008 |
Max Speed | 18500r/min |
Max RCF | 23797xg |
Max Capacity | 4x100ml |
Speed Accuracy | ±10r/min |
Time Setting Range | 1sec~99min 59secor1min~99h59min |
Noise | ≤65dB(A) |
Power supply | AC220V 50/60Hz |
Power Consumption | 700W |
Dimension (W*D*H) | 380x505x360(mm) |
Packing Dimension (W*D*H) | 480x780x460(mm) |
Net Weight | 36kg |
Rotor parameters
| Rotor Type: Angle rotor Max Capacity:24x1.5/2.0ml Max Speed:15000r/min Max RCF: 21532xg Order No:0301805520 |
| Rotor Type: Angle rotor Max Capacity:12x5ml Max Speed: 15000r/min Max RCF: 15840xg Order No:0301806110 Adapter: 0.5ml、1.5ml |
| Rotor Type: Angle rotor Max Capacity: 12x10ml Max Speed: 13000r/min Max RCF:17370xg Order No:0301805310 Adapter:1.5ml、5ml |
| Rotor Type: Angle rotor Max Capacity: 12x10ml Max Speed: 13000r/min Max RCF:17370xg Order No:0301805310 Adapter:1.5ml、5ml |
| Rotor Type: Angle rotor Max Capacity:6x50ml (conical) 50ml round bottom adapter as gift Max Speed:12000r/min Max RCF: 15292xg Order No:0301805930 Adapter:15ml(conical) |
| Rotor Type: Angle rotor Max Capacity:4x100ml Max Speed:10000r/min Max RCF: 10744xg Order No:0301805710 Adapter:5ml、10ml、15ml(conical/round)25ml、50ml(conical/round) |
| Rotor Type: Angle rotor Max Capacity: 30x1.5/2.0ml Max Speed:14000r/min Max RCF: 22140xg Order No:0301812510 |
| Rotor Type: Angle rotor Max Capacity: 48x1.5/2.0ml Max Speed:13000r/min Max RCF:18525xg Order No:0301812830 Adapter:0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity:6x8x0.2ml (PCR tube) Max Speed:13000r/min Max RCF: 16020xg Order No: 0301812210 | | Rotor Type: Hematocrit rotor Max Capacity:24Hematocrit Max Speed: 13000r/min Max RCF: 17369xg Order No:0301856310 |
| Rotor Type: Swing Rotor Max Capacity: 24x1.5/2.2ml Max Speed:13000r/min Max RCF: 16816xg Order No:0302857500 Adapter: 0.2ml、0.5ml |
| Rotor Type: Angle rotor Max Capacity: 8x15ml(conical) Max Speed: 12000r/min Max RCF: 13200xg Order No:0301806220 Adapter:5ml |
| Rotor Type: Angle rotor Max Capacity: 12x1.5/2.2m Max Speed: 18500r/min Max RCF:23797x9 Order No:0301805020 Adapter:0.2ml、0.5ml | / | |
Rotor | Bucket | Adaptor | Capacity/Order No | Adaptor | Capacity/Order No |
Rotor Type: Swing Rotor Max Capacity: 4x100ml Max Speed: 5000r/min Max RCF: 3773xg Order No:0302891038 |
Bucket Order No:0303891029 |
| 4x3x10mlBlood collection tube0304852409 |
| 4x1x15ml 0304891119 |
| 4x1x15ml(conical) 0304891118 |
| 4x1x50(conical) 0304891114 | ||
| 4x1x50ml 0304891116 | / | |||
Max Speed: 4000r/min Max RCF:2200xg Max Capacity: 2x2x96well Order No:0302852310 |
Microplate bucket Order NO:0303852351 | 2x6 ELISA microplate | 2x6x96 | can be customized |
2x2 Deep-well plate | 2x2x96 | |||
2x1 Filter plate reagent kit | 2x1x96 |
