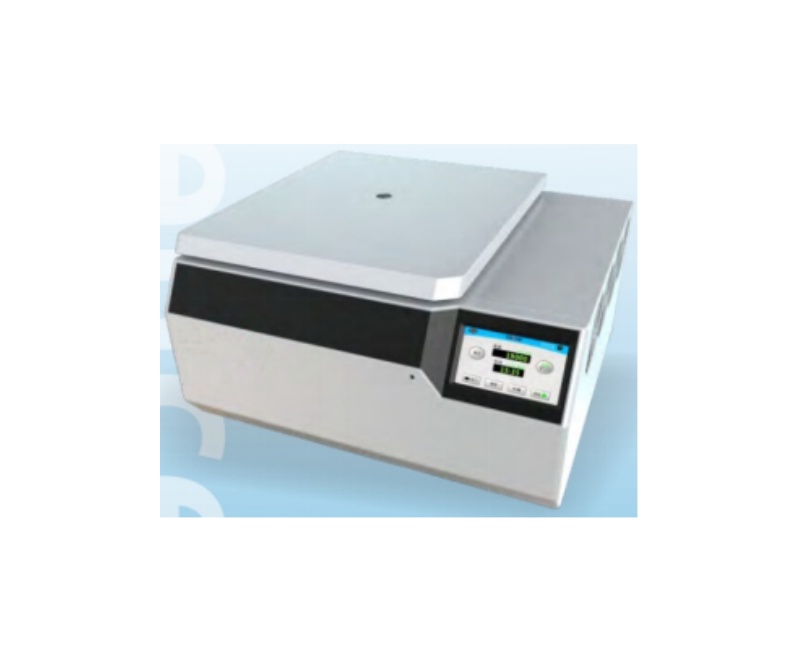

WME CLT55R/CLT55 Large Capacity Low Speed Refrigerated/Non-refrigerated Centrifuge
CLT55R/CLT55 can be matched with a variety of test tubes/bottles and micro plate,which greatly improves the universality of the experiment. Various aerosol-tight bucket ensures centrifugal safety.The airflow guiding design maintains the centrifuge chamber temperature in low level for protection of temperature sensitive samples.The buckets and adapters can be autoclaved.It is an ideal product for clinical medicine,molecular biology,cell culture
and other industries.
PRODUCT DETAILS
Product advantages
* Equipped with 7-inch full touch screen( can be directly operated with gloves), simple interface and all parameters at a glance
* Touch interface for super-fast parameter setting compared with the traditional push-button operation.
* RCF and Speed can be automatically switched for touch the key.
* Two time setting ranges for optional :1s-99min 59s and 1min to 99h59min
* Three Timing modes for optional : start timing , speed timing and continuous timing
* Each program can be divided into 5 steps , and different rpm and time setting for each step.
* Save up to 100 user-defined programs.
* 11 acceleration and 12 deceleration stages. And free parking time can be set.
* According to the time interval of the experiment, the sleep time of the instrument ca be set ( the default value is 15 minutes ) which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument
* CLT55R : Pre-cooling function available. pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance, so the experiment can be carried out once entering the laboratory to save time
* ICLT55R refrigerated centrifuge adopts VF compressor with PID dynamic intelligent temperature control technology (Patent NOZL201922274761.7 ) and dual channel refrigeration system (Patent NO: ZL201922269242.1 ), for optimized cooling performance.
* The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
* AC frequency conversion motor is maintenance free and no carbon pollution with long service life and accurate speed accuracy (less than 10rpm).
* Max Capacity 4x750ml, which can be equipped with the aerosol-tight bucket to ensure the safety of centrifugation and no pollution.
* 0.5ml-750ml adapter available. Capable of offering superior capacity of up to 36 x 50ml conical tubes, 88x15ml conical tubes,168x7ml vaccum blood collection tubes , which is an ideal choice for clinical examination and laboratory analysis.
Technical parameter
Model | CLT55R | CLT55 |
Order NO | 0204260029 | 0205255026 |
Max Speed | 5500r/min | 5500r/min |
Max RCF | 4904xg | 4904xg |
Max Capacity | 4x750ml | 4x750ml |
Speed Accuracy | ±10r/min | ±10r/min |
Time Setting Range | 1s~99min59s、1min~99h59min | 1s~99min59s、1min~99h59min |
Timing mode | start timing ,speed timing and continuous timing. | start timing ,speed timing and continuous timing |
Temperature Setting Range | -20~40° | / |
Temperature Accuracy | ±0.5°℃ | / |
Pre-cooling function | yes | / |
Compressor Unit | High performance compressor unit ,Environment-friendly refrigerant (134a) | / |
Noise | ≤65dB(A) | ≤65dB(A) |
Short Spinning | yes | yes |
Rotor Identification | yes | yes |
Power Supply | AC 220+22V 50/60Hz | AC 220+22V 50/60Hz |
Power Consumption | 1.6kW | 900W |
Dimension | 713x681x398(mm) | 510x635x398(mm) |
Packing Dimension | 860x810x620(mm) | 660x770x450(mm) |
Net Weight | 95kg | 76kg |
Rotor parameters
| Rotor Type: Angle Rotor Max Capacity: 40x15ml Max Speed: 5500r/min Max RCF: 4904xg Order No:0301891144 | can be customized |
|
|
|
Rotor Type: swing Rotor (Automatic de-capping ) Max Speed: 4000r/min Max RCF:3370xg Max Capacity:120pcs(13x75/100mm) Order No:0302891036 | Brackets Order No:0303891059 | Adapter Specification: 13x75/100mm tube Order NO:0304854020 |
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3345xg Max Capacity: 4x500ml Order No:0302850110 (Bucket not included) |
Round Bucket Order No: 0303891022
Aerosol-tight round bucket Order NO: 0303891077 |
| 4x1x250ml 0304891142 |
| 4x2x100ml 0304891009 |
| 4x4x50ml (conical/round) 0304891008 |
| 4x7x20ml 0304851485 | ||
| 4x9x15ml (conical/round) 0304891083 |
| 4x11x15ml(conical) (Cap≤21.5mm) 0304891508 | ||
| 4x14x10ml 0304891705 |
| 4x19x5/7mlVaccum blood collection tube0304851450 | ||
| 4x36x1.5ml 0304891677 | / | |||
Rectangular Bucket Order No: 0303851421
Rectangular bucket with sealing cover Order No: 0303891016 |
| 4x1x250ml 0304891041 | | 4x3x100ml 0304891744 | |
| 4x6x50ml (conical/round) 0304891014 |
| 4x12x15ml (conical/round) 0304891582(conical) 0304891779(round) | ||
| 4x20x10ml 0304891077 |
| 4x31x5/7mlVaccum blood collection tube 0304891782 | ||
| 4x56x1.5ml 0304891603 | / | |||
can be customized | |||||
Rotor | Bucket | Adaptor | Capacity/Order NO | Adaptor | Capacity/Order NO |
Rotor Type: Swing Rotor Max Speed: 4000r/min Max RCF: 3500xg Max Capacity:4x750m Order No:0302891036 (Bucket not included) |
Round Bucket Order No: 0303891025
Aerosol-tight round bucket Order No: 0303891006 |
| 4x1x500ml(conical/flat) 0304891035(conical) 0304891036(flat) |
| 4x1x250ml(conical/flat) 0304891562(conical) 0304891039(flat) |
| 4x4x100ml 0304891006 |
| 4x5x50ml (Self-standing tube) 0304891024 | ||
| 4x7x50ml(conical/round) 0304891003(conical) 0304891004(round) |
| 4x10x20ml 0304891163 | ||
| 4x15x15ml(conical) 0304891005 |
| 4x19x10ml (Self-standing tube) 0304891732 | ||
| 4x21x10ml 0304891730 |
| 4x27x5/7mlVaccum blood collection tube 0304891728 | ||
| 4x37x5ml(RIA tube) 0304891166 |
| 4x56x1.5ml 0304891025 | ||
Round Bucket Order No: 0303891025 |
| 4x9x50ml(conical/round) 0304891015(conical) 0304891016(round) |
| 4x19x15ml (conical/round) 0304891012(conical) 0304891704(round) | |
| 4x30x10ml 0304891709 |
| 4x38x5/7mlVaccum blood collection tube 0304891017 | ||
Microplate bucket Order No: 0303891147 | 4x2x96Deep-well plate 4x4x96Microplate Plate height in total≤67mm | ||||
