Veterinary Blood Gas & Electrolyte Analyzer
The Veterinary Blood Gas & Electrolyte Analyzer Veterinary Blood Gas & Electrolyte Analyzer is a state-of-the-art, handheld diagnostic solution engineered to deliver lab-quality results for blood gases, electrolytes, and essential biochemistry. Whether you are in a high-traffic emergency hospital or out in the field, this portable system bridges the gap between patient symptoms and life-saving decisions.
PRODUCT DETAILS
The Veterinary Blood Gas & Electrolyte Analyzer is an easy-to-use handheld veterinary analyzer with accurate blood gas, electrolyte,and critical
care biochemistry results in just a few minutes, and allows you to do the diagnosis anywhere.
Clinical Applications
Emergency & ICU: Rapidly assess acid-base status and electrolyte shifts in trauma or shock cases.
Anesthesia Monitoring: Real-time monitoring of ventilation and oxygenation during high-risk surgeries.
Equine/Large Animal Medicine: Robust enough for stall-side testing and remote field diagnostics.
General Practice: Expand your in-house diagnostic capabilities and improve client satisfaction with immediate answers.
Advantages:
Easy operation
Testing can be performed in 3 simple steps with only 2 or 3 drops of whole blood.
Multi-parameter card
Single-use test card offer a broad menu of tests on a single, portable platform. Each test card has a unique combination of biosensors to suit a wide range of clinical needs.
Patient care
Get accurate results in 4 minutes at the patient's side to enable rapid decision-making, and optimize patient-care.
Handheld portability
Lightweight with a built-in battery allowing diagnosis at the point of care,patient side, out in the field, or exam room.

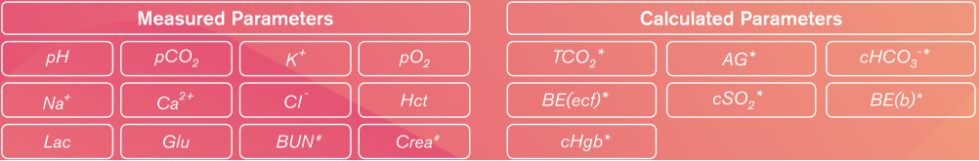

Test Card:
SPECIFICATIONS
| Sample | Arterial or venous whole blood | Sample volume | 100 uL |
| Bar code | QR code | QC & calibrate | IQC (Intelligent Quality Control) |
| Display | 4.3 IPS touch screen | Connectors | Type-c |
| Power | 5V2A | Battery | 3.7V, 5000mAh |
| Printer | Built-in thermal printer | Operating | Temperature: 5 - 32 °C; |
| Weight | 600g | temperature | Relative humidity ≤85%; |
FAQ: Frequently Asked Questions
Q1: How often does the analyzer require calibration?
A: The system features automated internal calibration for every test card. This eliminates the need for manual calibration cycles and ensures the highest level of accuracy for every individual patient.
Q2: What is the shelf life and storage requirement for the test cards?
A: Our multi-parameter cards are designed for stability. Most cards require refrigeration (2-8°C), but they can be brought to room temperature quickly before use. Please refer to the specific card packaging for exact expiration dates.
Q3: Can the results be integrated into our Practice Management Software (PIMS)?
A: Yes. The analyzer supports seamless data transmission via Wi-Fi or USB, allowing you to sync patient results directly into their electronic medical records for better tracking and billing.
Q4: Is the device suitable for very small animals?
A: Absolutely. Because the analyzer requires only a few drops (approx. 100μL) of whole blood, it is ideal for exotic pets, kittens, puppies, and other patients where blood conservation is a priority.
Q5: What maintenance is required?
A: As a dry-chemistry/biosensor-based system, there are no internal fluidics or reagent tubes to clean. Maintenance is minimal, primarily involving keeping the exterior and card slot free of dust.
