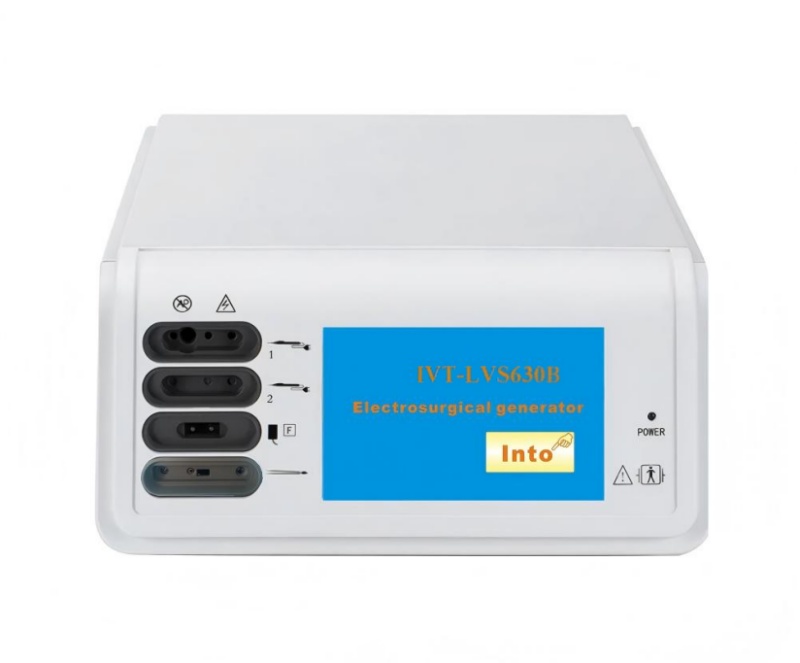

IVT-LVS630B(200W) Ligasure Electrosurgical Unit

Technical Features:

Intelligent Device---7 INCH LCD TOUCH SCREEN

--The intuitive design and user-friendly set-up of Electrosurgical Unit in the modern operating room,

--Monopolar and bipolar functions, It can satisfy all the surgeries demands, with safety, flexibility, reliability and convenience.

--With a wide TFT LCD touch screen (7 inch), clean and sharper image quality, which provides the user with easy access to all functions. The settings or modes of operation are changed by touching icons on the screen to ensure maximum ease of operation.

REM (Return Electrode Monitoring)

The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Automatic Self-Test

Once switched on, Electrosurgical Systems perform a comprehensive internal test

Real-time Monitoring and Instance Response System for Tissue Density

This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue

 type

Vessel Sealing

The machine enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation..

Technical Specification

Main Frequency: 512 KHz Power Supply: 100-240V/50-60Hz

Weight and Dimension:

Weight:8.00KG Dimension: 47*34*17

High Frequency Leakage:

Monopolar: < 150mA; Bipolar <60mA

Low Frequency Leakage:

Normal Polarity, Intact Chassis Ground: <10μA

Normal Polarity, Ground open< 50μA

Reverse Polarity, Ground Open< 50μA

Sink Current, 140V Applied, All inputs < 50μA

Technical Specification
