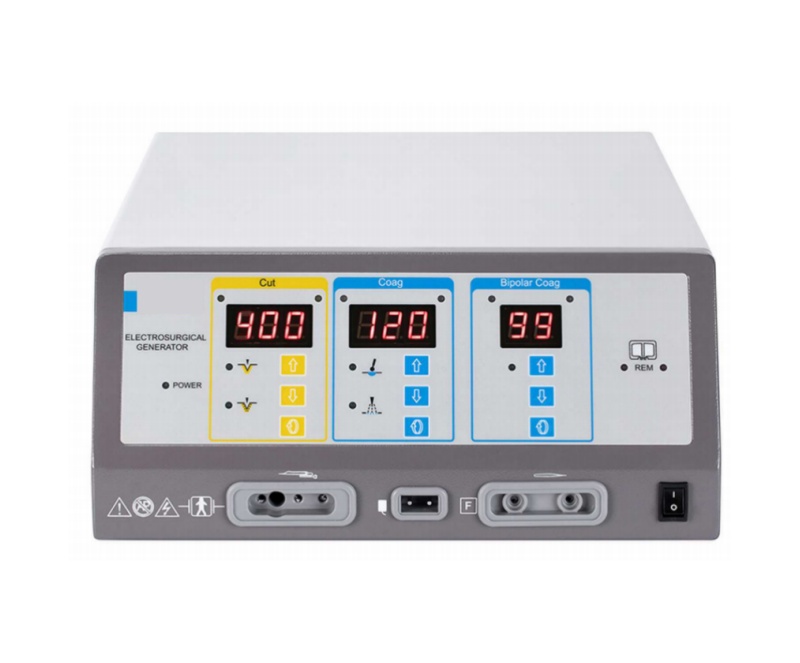

IVT-630D(400W) Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Multi-language Available:

Language options: English, Spanish, Portuguese, Turkish and etc

Application of Use

General Surgery; Gastroenterology Dermatology; Vascular Surgery; Obstetrics and Gynecology Heart/ Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI) Cerebral surgery Neurosurgery, Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc.

Versatile system that is uniquely compatible with other, including:

Under water cut socket (Endo cut) HV argon coagulation system

Optimum Smoke Evacuation System-Clean air in the operation theatre

Low Frequency Leakage:

Normal Polarity, Intact Chassis Ground: <10μA

Normal Polarity, Ground open< 50μA

Reverse Polarity, Ground Open< 50μA

Sink Current, 140V Applied, All inputs < 50μA

Technical Specification

Main Frequency: 512 KHz Power Supply: 110V/60Hz；220V/50Hz

Weight and Dimension:

Weight: 8.00KG Dimension: 34*16*47

High Frequency Leakage:

Monopolar: < 150mA; Bipolar <60mA

Technical Specification
