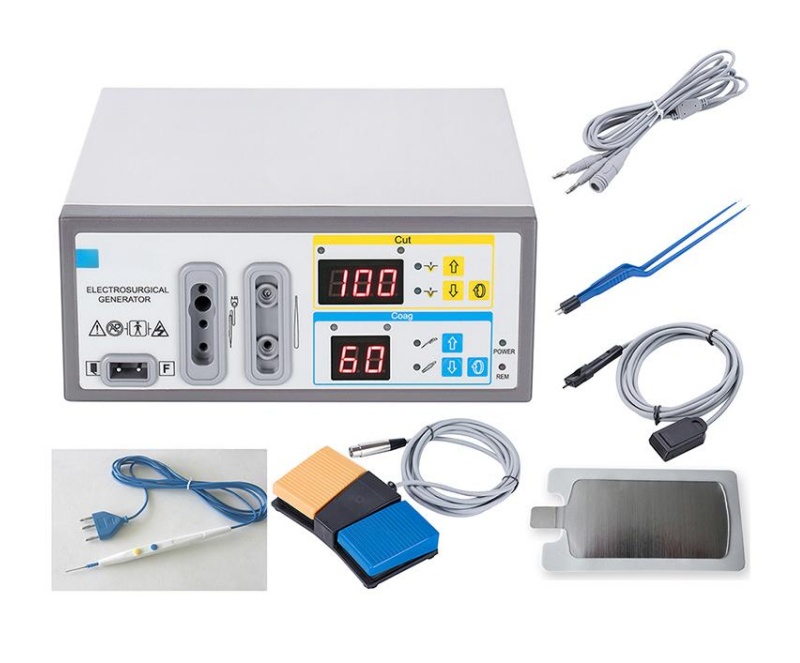

IVT-630A(100W) Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents

Compatible with Other Equipment:

Optimum Smoke Evacuation System

Multi-language Available:

Language options: English, Spanish, Portuguese, Turkish and etc

Application of Use

General Surgery; Dermatology; Vascular Surgery; Obstetrics and Gynecology ORL/ENT; Minimally Invasive Surgery (MSI) Cerebral surgery；Neurosurgery, Orthopedics & Plastic Surgery.

Low Frequency Leakage:

Normal Polarity, Intact Chassis Ground: <10μA

Normal Polarity, Ground open< 50μA

Reverse Polarity, Ground Open< 50μA

Sink Current, 140V Applied, All inputs < 50μA

Power Readouts

Agree with actual power into rated to within ±20% or 5W, whichever is greater, Dosage Error monitor.

Technical Specification

Main Frequency: 512 KHz Power Supply: 110V/60Hz；220V/50Hz

Weight and Dimension:

Weight: 4.00KG Dimension: 25*24*10

High Frequency Leakage:

Monopolar: < 150mA; Bipolar <60mA

Technical Specification
