Veterinary Surgical Lamp
LED vet surgical operating light, single/double dome ceiling lamp with LCD touch screen, adjustable brightness & color temperature, HD camera optional for animal surgery clinic.
PRODUCT DETAILS
All our veterinary surgical lamps adopt high-quality Osram LED chips with over 50,000 hours service life. Equipped with 4.3-inch IPS LCD touch control panel, supporting 10-speed brightness & color temperature adjustment, R9 red-green mode and Endo mode for animal surgery. Multiple single-head & double-head ceiling models available, optional HD camera recording system for teaching & remote consultation. Widely used in pet hospitals, veterinary clinics and animal operating rooms.
Product Advantages
1. Light Source: Original Osram LED beads, lifespan over 50,000 hours
2. Stable Constant Current Drive, effectively extend lamp service life
3. PMMA optical lens with exclusive focusing technology, high luminous efficiency & low power consumption
4. 4.3-inch HD IPS sensitive touch screen, smooth operation, long service life
5. Intuitive simple UI, one tap to adjust all lighting parameters
6. 10 levels adjustable central illuminance, 10 levels adjustable color temperature (3500K–5000K)
7. Special R9 red-green mode & Endo mode for complex animal operations
8. Optional upgrade: HD central camera or external independent camera system
Specification
| Installation Method | Diameter | LED Quantity | Center Illuminance | Color Temperature | Color Renderindex | Average Bulb Life | Control Panel | Core Function | Optional Configuration |

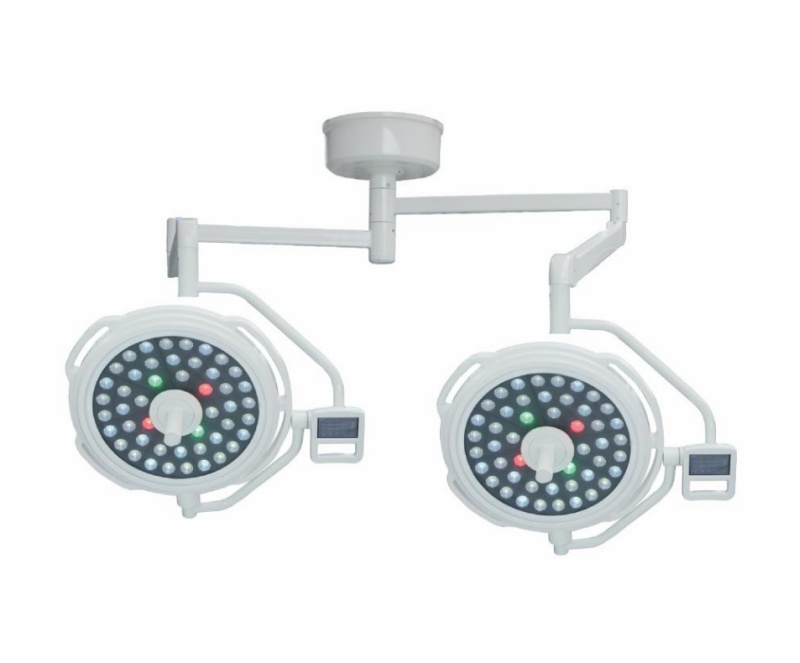

| Best-Selling Double-headed Ceiling mounted | 700mm/500mm | 80/48 | 40-160klx | 3500K-5000K | ≥95 | ＞50000h | 4.3 Inch LCD Touch Screen Controller | R9(Red-Green)mode | High-definition central camera / external independent camera system |

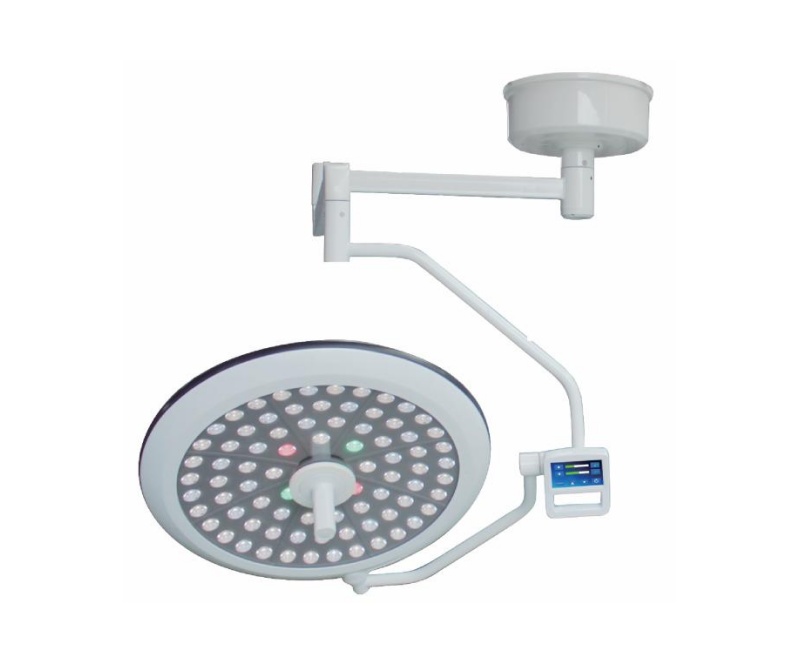

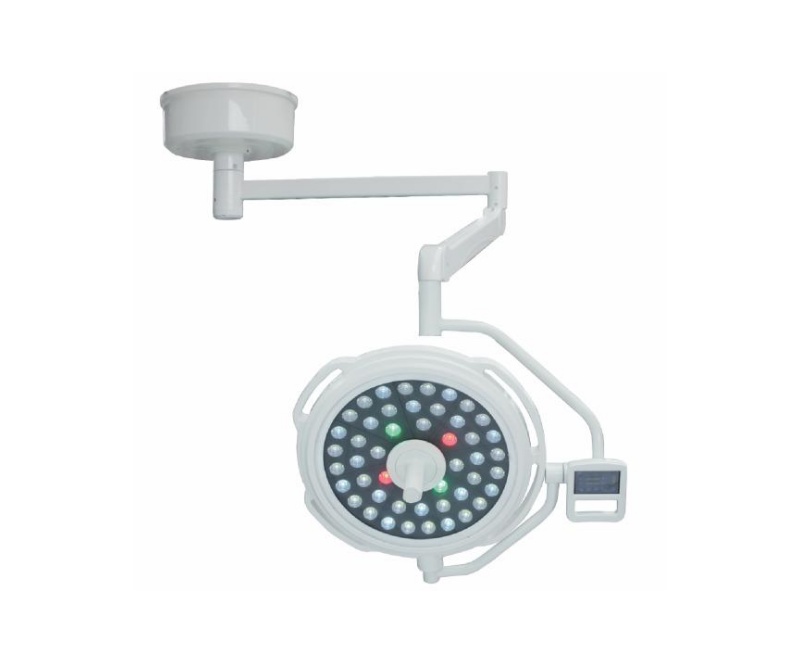

| Best-Selling Single-headed Ceiling mounted | 700mm | 80 | - | ||||||
| 500mm | 48 | ≥92 | |||||||
| Best-Selling Double-headed Ceiling mounted | 550mm/550mm | 48/48 | ≥95 | ||||||
| Best-Selling Single-headed Ceiling mounted | 550mm | 48 | |||||||
| 500mm | 48 | ||||||||
| Best-Selling Double-headed Ceiling mounted | 700mm/500mm | 80/48 | Sony IMX122 5 megapixel 30x zoom camera, 24 inch 1080P display, video recorder, supports remote consultation and surgery live broadcast. | ||||||
| Best-Selling Single-headed Ceiling mounted | 260mm | 75 | 40-180klx | 3500K-5500K | - | 80000h | The depth of the light spot is 50-20 cm, and the installation height is 2200- 3200 mm. |
FAQ
Q1：How to pick the right model for my clinic?
A: Small animal clinics (dogs & cats): Single head LED-500 / LED-550.
Mixed small & large animal hospital: Double head LED-700/500 or LED-550/550.
Vet teaching hospital / referral center with endoscopic surgery: LED-700/500-TV with HD camera recording system.
All are ceiling-mounted, space-saving for standard operating rooms.
Q2: What’s the advantage of Osram LED beads?
A: Long service life over 50,000 hours, stable luminous efficiency, low light decay, low heat output. Constant current drive keeps brightness consistent during long surgery, no frequent replacement needed.
Q3: What does R9 red-green mode & Endo mode do?
A: R9 mode enhances red & green tissue contrast, easy to distinguish blood, muscle and organ boundaries; Endo mode soft anti-glare light for laparoscopy & endoscopic surgery, avoid screen reflection.
Q4: Can brightness and color temperature be adjusted?
A: Yes. 10-level adjustable illuminance & 10-level color temperature 3500K–5000K via 4.3-inch IPS touch screen, easy one-click operation during surgery.
Q5: What’s the meaning of Ra≥95?
A: High color rendering restores real tissue color, reduce eye strain after long-hour operation, help vets accurately judge inflammation, bleeding and lesion of pets & livestock.
Q6: What’s the specification of the camera system?
A: SONY IMX122 CMOS sensor, 5 million pixels, 30x optical zoom, anti-shake & noise reduction. Support photo, video recording, HDMI/VGA output for 24-inch monitor, realize live broadcast, remote consultation and vet teaching.
Q7: Is the camera optional for regular lamp models?
A: Yes. We support optional central camera on lamp panel or independent external camera for single/double head standard lamps.
Q8: Only ceiling-mounted? Do you have mobile stand type?

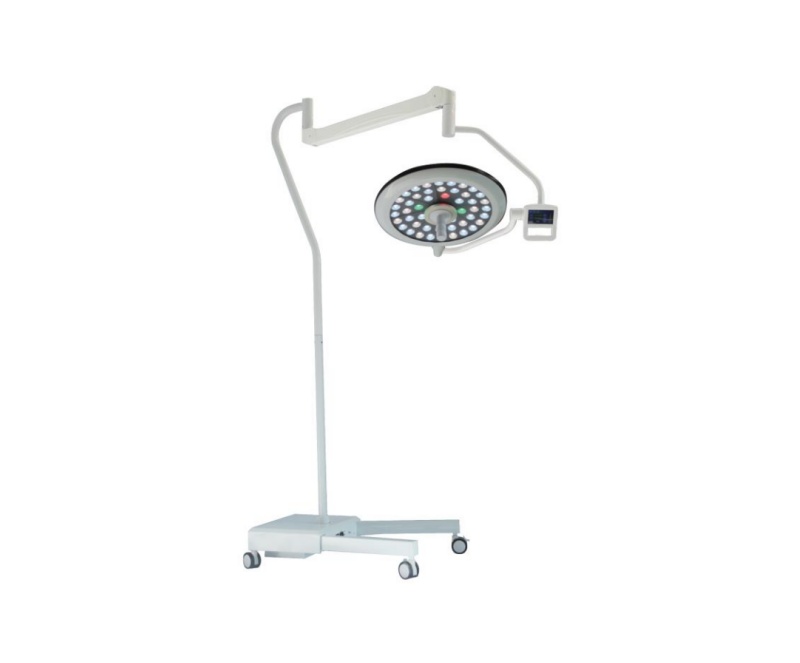

A: Our listed models are ceiling-mounted. Mobile vertical stand surgical lamp IVT-LED5 is available separately.
Q9: Is the lamp easy to clean & disinfect?

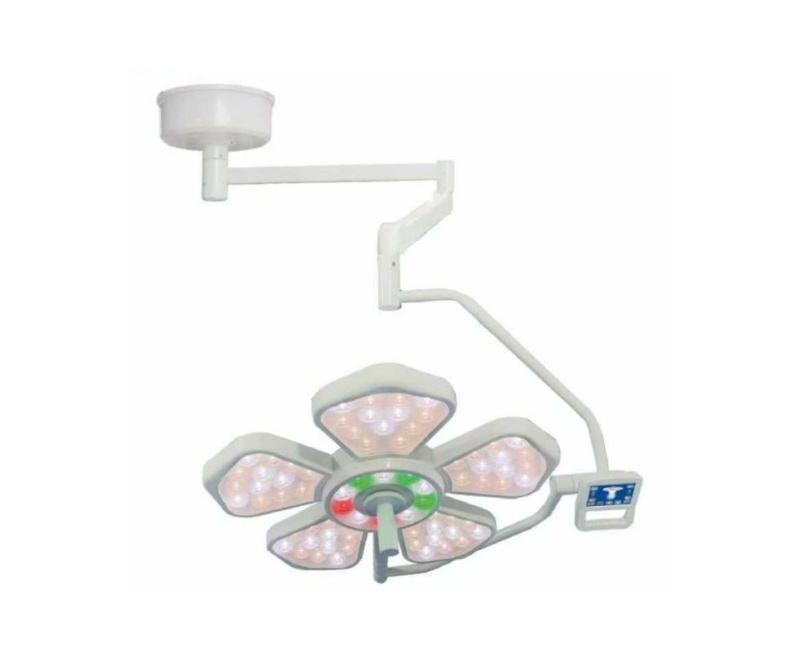

A: Smooth integrated lamp head, waterproof & dustproof surface, resistant to common medical disinfectant, convenient daily cleaning after surgery. Petal hollow design ensures smooth laminar air flow to keep sterile surgical field.
