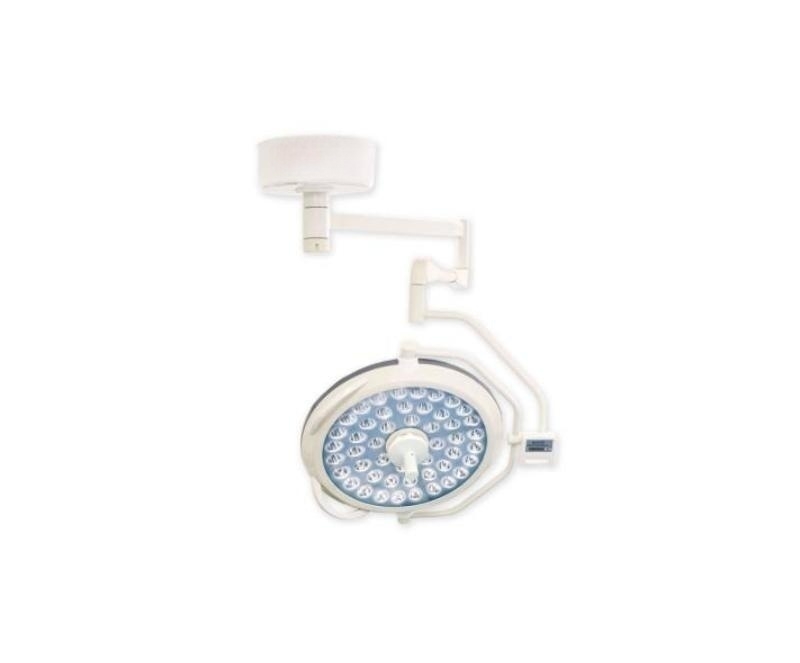

LED720 (Economic Model) Shadowless Operating Lamp
LED Surgical lamp,Economic Model--Cheapest model,meet for basic requirement.(3 Watt big LEDs,China made round spring arm)
Share:
PRODUCT DETAILS
Disposition detailed list
* 1 LED720 light head
* 1 revolving arthrosis(revolving arm)
* 1 balanced arthrosises(spring arm)
* 1 plastic(PE) covers
* 4 fuses (RT1-32 2A；RT1-32 8A)
* 4 installation bolts(M12×50)
* 1 sterilization handles
* 1 control panel with knob
| Technical parameters | LED720 |
| Illuminance(lux) | 160,000 |
| Color Temperature (Kelvin) | 4,300 |
| Adjustable Color Temperature (Kevn)(Optional) | 3600-5600 |
| Color Rendering Index (CRI) | 96 |
| Red Color Index (R9) | 96 |
| Light brightness control | standard |
| Brightness control range | 10—100% |
| Temp rise (Surgeon head)(C) | 0.5 |
| Temp rise (surgical field)( ℃) | 2 |
| Effective Focusing Depth (cm) | 60-150 |
| Total Irradiance Ee (W/m2) | 530 |
| Radiant Power Ee/ Ec(mW/m2lux) | 3.3 |
| Lighting Spot Size (mm) | 100-260 |
| Bulb Type | LED |
| Average Bulb Life (hours) | 60,000 |
| Bulb Quantity | 48LEDS(main bulb) |
| +96LEDS(auxiliary bulb) | |
| Depth of illumination L1+L2(cm) | ≥130 |
| Power Consumption (W) | 70 |
| Height adjustment (cm) | 118 |
| Power Input | 100-240VAC,50/60Hz |
Dimensions and weight
Packing Measures (cm) | GW (kg) | NW (kg) | |
1 LED720 light head | 101×96×27 | 30 | 15 |
1 revolving arthrosis(revolving arm) | 111×46×44 | 45 | 30 |
