Veterinary Infusion Pump
Veterinary Infusion Pumps: High-precision Veterinary Infusion Pump for Vet Clinics.
• Universal Use: For cats, dogs, neonates, exotic pets and livestock infusion.
• Smart Design: Fluid warming, bubble detection, multi occlusion alarms.
• High Performance: Wide flow range, accurate for transfusion & anesthesia.
• Application: Vet clinics, animal hospitals, emergency & mobile services.
PRODUCT DETAILS

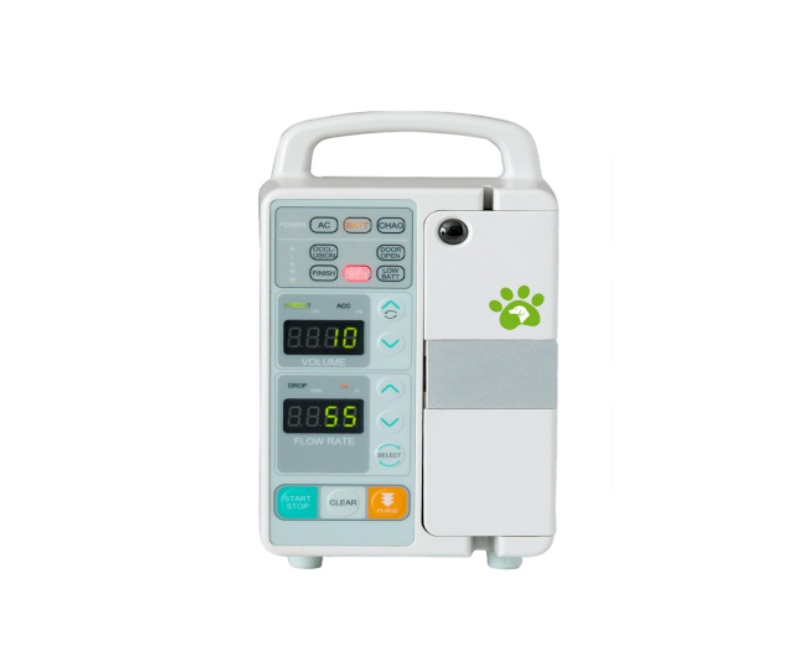

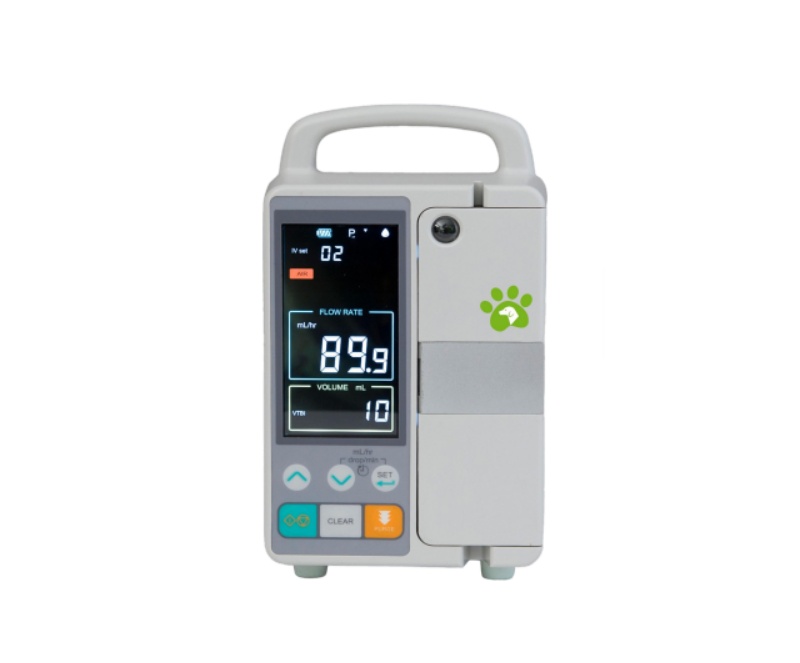

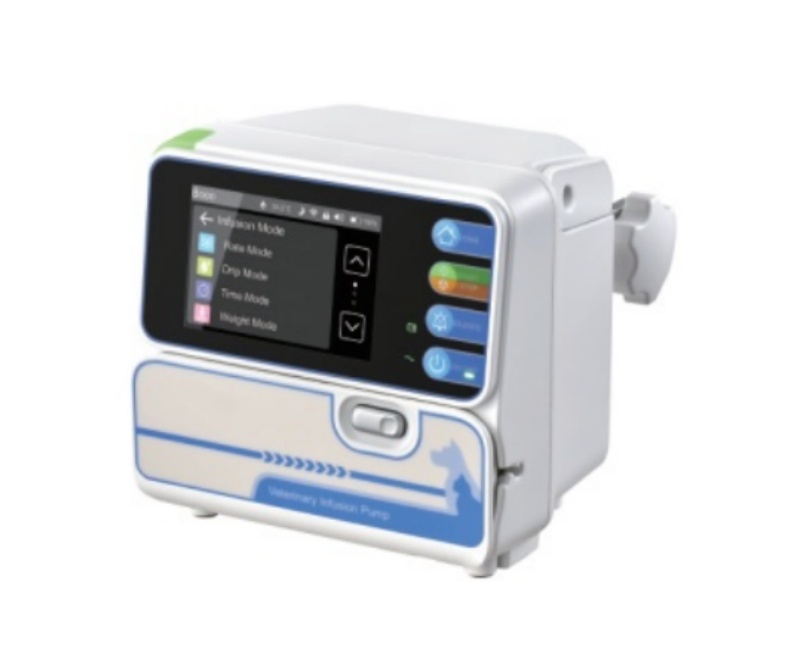

IVT-200 series veterinary infusion pumps include 3 models: entry-level IVT-200A, upgraded button model IVT-200B, high-end touch screen intelligent IVT-200E. All adopt curvilinear peristaltic drive, built-in adjustable liquid warming system, full ultrasonic air bubble & occlusion detection, complete audible & visual alarm system, dual AC/rechargeable battery power supply, lightweight portable design, suitable for neonatal pets, adult cats, dogs, rodents and livestock fluid therapy in animal hospitals, vet clinics and mobile veterinary services.
Product Advantages
1. Veterinary-oriented design, warm liquid infusion avoids vein stimulation for pets
2. Multi-layer safety protection: ultrasonic bubble detection, adjustable occlusion pressure, dual CPU for IVT-200E, anti-free-flow
3. Full flow coverage: micro-infusion for neonates to high-volume fluid replacement for large animals
4. Dual power supply: mains power + rechargeable lithium battery, support outdoor mobile vet service
5. Expandable optional accessories: WIFI monitoring, hanging pole clamp, heating strip, drip sensor
6. Two operation modes: button / touch screen, parameter memory, massive clinical record storage
Specification
| Parameter Item | IVT-200A | IVT-200B | IVT-200E |
| Display | Digital segment screen | Digital LCD screen | 3.5 Inches Color Touch Screen |
| Flow Rate Range | 1–1100 ml/h Step:1ml/h | 0.1–1500 ml/h Step:0.1ml/h | 0.10–2000.00 ml/h Step:0.01ml/h |
| Infusion Modes | ml/h, drop/min | ml/h, drop/min, time-based | Rate / Time / Weight / Intermittent / Drip / Drug Library |
| Infusion Accuracy | ±3% | ±3% | ±5% |
| VTBI Total Volume | 1–9999 ml | 1–9999 ml | 0.10–9999.99 ml |
| KVO Rate | Fixed 4ml/h | 0.1–5ml/h adjustable | 0.10–5.00ml/h adjustable |
| Bolus Function | Fixed 700ml/h | 100–1500ml/h, bolus vol 1–20ml | 0.10–2000ml/h full adjustable |
| Occlusion Sensitivity | 5 levels | High/Medium/Low | 13 adjustable levels |
| Air Bubble Detection | Ultrasonic detector | Ultrasonic detector | Ultrasonic, 6 levels (25μl–800μl) |
| Built-in Heating | 30–45℃ built-in adjustable | 30–45℃ built-in adjustable | Optional external heating strip |
| Power Supply | AC 110/230V 50/60Hz | AC 110/230V 50/60Hz | AC 100–240V, DC12V |
| Dimension (mm) | 174x126x215 | 174x126x215 | 145x103x137 (without pole clamp ) |
| Net Weight | 2.5kg | 2.5kg | ~1.6kg |
| Waterproof | N/A | N/A | IP44 |
| Core Extra Features | Mute key, purge, memory | Key lock, adjust flow without stop pump | Double CPU, 50000 records, WIFI optional, drug library, anti-free-flow |
| Safety Classification | Class Ⅰ, Type CF | Class Ⅰ, Type CF | Class Ⅰ, Type CF |
FAQ
Q1: What animals can this pump be used for?
A: Fits cats, dogs, neonatal pets, rodents and livestock. IVT-200B/E support micro flow for tiny animals.
Q2: What’s the difference between IVT-200A / 200B / 200E?
A: • IVT-200A: Basic cost-effective button model
• IVT-200B: Upgraded button pump with adjustable KVO & key lock
• IVT-200E: Touch screen premium model, IP44 waterproof, dual CPU, drug library & WIFI optional
Q3: Does the pump heat infusion liquid?
A: IVT-200A/B built-in 30-45℃ heater; IVT-200E uses optional external heating strip.
Q4: How long is battery life?
A: A/B: 5h @30ml/h; E: 12h @25ml/h.
Q5: Is IVT-200E waterproof & support wireless monitoring?
A: IVT-200E is IP44 dustproof & splash-proof; WIFI monitoring is optional.
Q6: Warranty & OEM service?
A: 1-year warranty, OEM logo & package customization available.
