PRODUCT DETAILS
Technical Features:

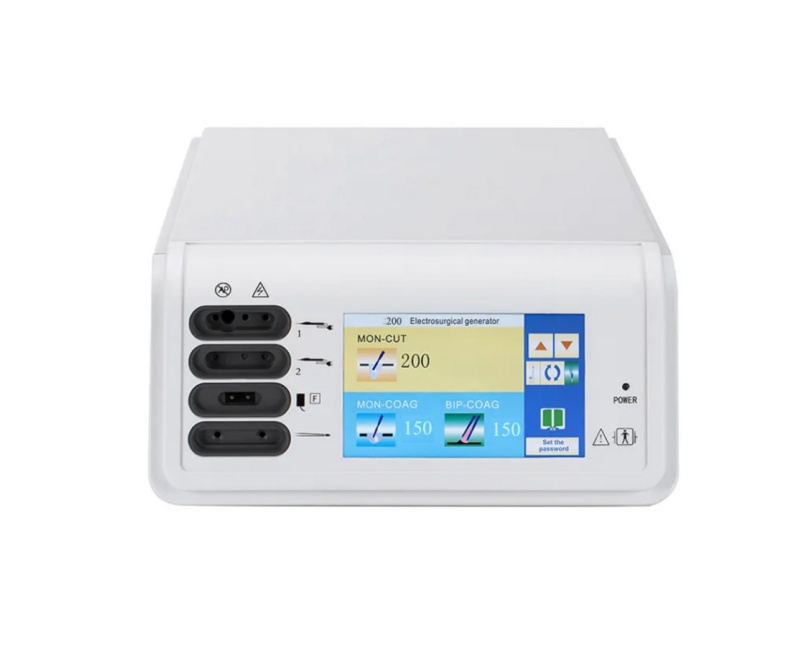

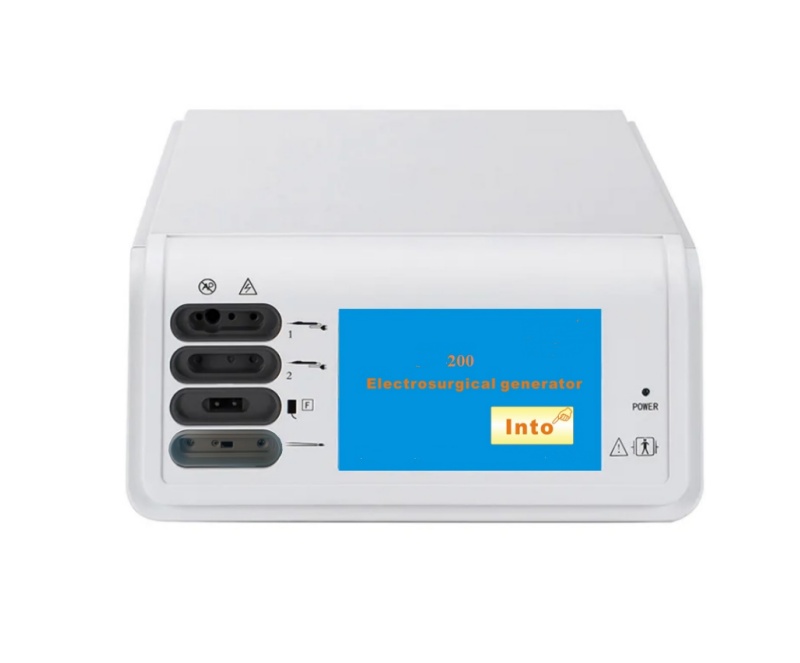

Intelligent Device ---7 INCH LCD TOUCH SCREEN
--The intuitive design and user-friendly set-up of AHANVOS Electrosurgical Unit in the modern operating room,
--Monopolar and bipolar functions, It can satisfy all the surgeries demands, with safety, flexibility, reliability and convenience.
--With a wide TFT LCD touch screen (7 inch), clean and sharper image quality, which provides the user with easy access to all functions. The settings or modes of operation are changed by touching icons on the screen to ensure maximum ease of operation.
REM (Return Electrode Monitoring)
The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Automatic Self-Test---Once switched on, AHANVOS systems perform a comprehensive internal test
Memory Records Features
Memory program that allows customize settings for different interventions and surgeons. Now total from 0-99 memory
locations can be available for user- defined settings, which make AHANVOS a versatile, indispensable companion in HF surgery.
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately - ensuring that only the precise voltage needed is safely delivered to each tissue type
Vessel Sealing
The machine enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation...
Technical Specification
Technical Parameters | High Frequency Leakage | Low Frequency Leakage | |
Main Frequency: Power Supply: Dimension: Weight: | 512 KHz 100-240V/50-60Hz 47*34*17cm 6KGS | Monopolar: < 150mA
Bipolar: < 60mA | Normal Polarity,Intact Chassis Ground: <10μA Normal Polarity, Ground open< 50μA Reverse Polarity, Ground Open< 50μA Sink Current, 140V Applied, All inputs < 50μA |
Working Mode | Max.output power | Rated Load | |
Monopolar Cut | Pure Cut | 200W | 500Ω |
Blend Cut Ⅰ | 180W | 500Ω | |
Blend Cut Ⅱ | 150W | 500Ω | |
Monopolar Coagulation | Soft Coagulation | 150W | 500Ω |
Fulgurate Coagulation | 120W | 500Ω | |
Spray Coagulation | 100W | 500Ω | |
Bipolar Coagulation | Standard Coagulation | 150W | 100Ω |
Precise Coagulation | 60W | 100Ω | |
Ligasure (Vessel Sealing) | 200W | 25Ω | |
Accessories
|
|
Disposable ESU Pencils | Disposable ESU Plate |
|
|
Reusable Plate Cable | Two Button Foot switch |
|
|
Bipolar Forceps | Bipolar Forceps Cable |
 | Instrument: Straight --- 37cm/10mm 20cm/10mm Small Jaw---19cm/16.5mm
The above Iigasure instruments can be selected optional one as a free standard accessory. We also have other types available for purchase.
(IVT-200 can be compatible with Valleylab Instruments |
 |
