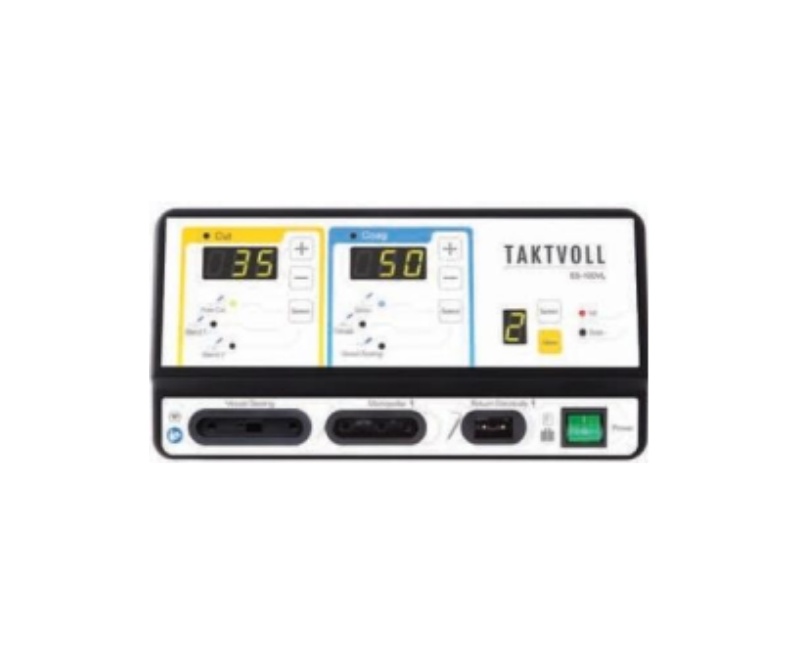

High Cost-Effective Electrosurgical Unit
Capable of most monopolar and bipolar surgical procedures and packed withdependable safety features, the High Cost-Effective Electrosurgical Unit satisfies the veterinarian's demands with precision, safety, and reliability.
PRODUCT DETAILS
Main Feature
| - 3 Monopolar Cut: Pure Cut, Blend 1,Blend 2 - 2 Coag: Spray, Forced - 1 Bipolar Output: Standard - CQM Contact Quality Monitoring System | - Electrosurgical Pens and Foot Switch Control - Recently Mode, Power and Other Parameters - Quick Adjustment of Power and Volume - Cut and Coag in an Intermittent Manner |
Product Specifications
Mode | Max Output Power(W) | Load Impedance(n2) | Modulation Frequency(kHz) | Max Output Voltage (V) | Crest Factor | ||
Monopolar | Cut | Pure Cut | 100 | 500 | -- | 1300 | 1.8 |
Blend 1 | 100 | 500 | 20 | 1400 | 2.0 | ||
Blend 2 | 100 | 500 | 20 | 1300 | 2.0 | ||
Coag | Spray | 90 | 500 | 12-24 | 4800 | 6.3 | |
Forced | 60 | 500 | 25 | 4800 | 6.2 | ||
Bipolar | Standard | 60 | 100 | 20 | 700 | 1.9 | |
Ordering Information
Model | Description | |
WMV630D |
| Electrosurgical Unit |
JBW-200 |
| Monopolar Foot-Switch |
HX-(B1)S |
| Hand-Switch Pencil, Disposable |
38813 |
| Patient Return Electrode Rods(10mm)With Cable, Reusable |
HX-(D)P |
| Bipolar Forceps,Reusable, Connecting Cable |
