Veterinary Electrocardiograph
Portable 3/6Channel Veterinary Electrocardiograph for Cat Dog Cattle Livestock.
Two versions optional: 3CH entry model & 6CH touch professional model
Standard 7-lead synchronous acquisition for cat, dog, cattle and all livestock
Built-in thermal printer, instant print ECG waveform & analysis report
Multi digital anti-interference filters + automatic baseline adjustment
PRODUCT DETAILS

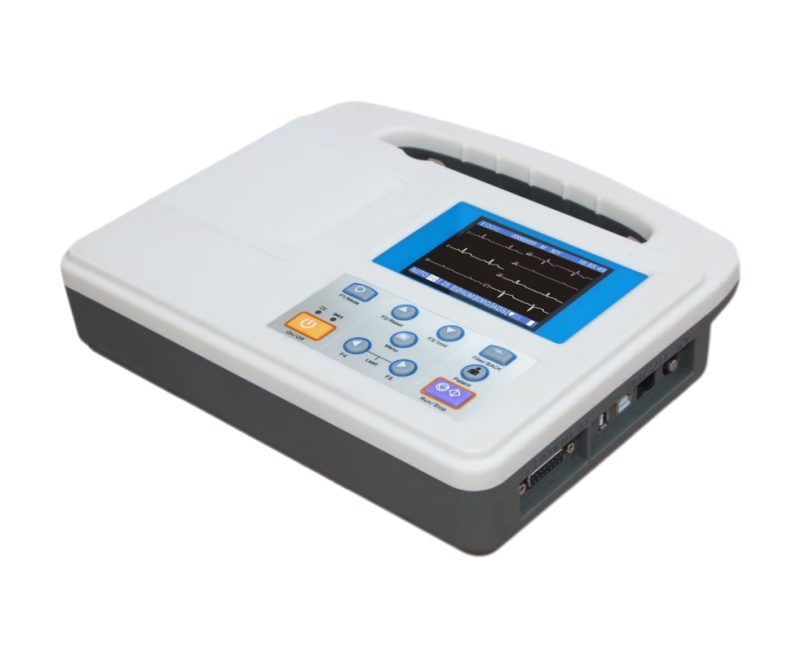

Two models of veterinary electrocardiograph for cats, dogs, cattle and all kinds of small, medium and large animals. IVT-660A is entry-level 3-channel model with compact size and cost-effective price; IVT-660B upgraded 6-channel touch screen version with wider printing width and larger display screen. Both support 7-lead synchronous acquisition, automatic ECG analysis, built-in rechargeable lithium battery and data export function.
Product Advantages
1. Specially developed for cats, dogs, cattle and other small/medium/large animals, 7-lead synchronous acquisition matches animal cardiac examination standards, built-in dedicated veterinary ECG automatic interpretation algorithm.
2. Multi-layer digital filtering (AC/EMG/Anti-drift filter) + automatic baseline adjustment, effectively eliminate muscle shaking, power frequency interference caused by restless animals, output clear and stable ECG waveforms.
3. Lightweight portable body with handle design, built-in rechargeable lithium battery, continuous working up to 9 hours, perfect for in-clinic diagnosis and outdoor farm on-site inspection.
4. Store up to 250 groups of animal ECG records, optional SD card for capacity expansion; USB/UART dual ports support U-disk export and external laser printer connection. Optional PC analysis software for report editing and data archiving.
5. AC 110-230V wide voltage power supply, adapts to mains electricity standards of all countries, no transformer needed for cross-border use.
6. Floating isolation input circuit with defibrillation protection, high CMRR ≥120dB, ultra-low leakage current, safe for all kinds of animals.
7. Manual printing / Auto printing / R-R rhythm analysis / Data storage, flexible to operate for different inspection demands.
Specification
| Item | IVT-660A (3CH) | IVT-660B (6CH) |
| Model | IVT-660A | IVT-660B |
| Print Channel | 3 Channel | 6 Channel |
| Screen | 3.5 inches Color LCD, 320×240, Button operation | 7 inches Touch Color LCD, 800×480, Touch operation |
| Print Format | 1ch+, 3ch, 3ch+ | 3ch+, 3ch+++, 6ch |
| Thermal Paper | 80mm × 20m roll paper | 112mm × 27m roll paper |
| Dimension | 260mm×217mm×58mm | 300mm×230mm×75mm |
| Weight | 1.4kg | 2.8kg |
| Storage Capacity | 250 ECG cases (Optional SD card) | 250 ECG cases (Optional SD card) |
| Battery Working Time | Up to 9 hours | Up to 9 hours |
| Communication Port | USB + UART | USB + UART |
| Applicable Animals | Small pets (cat), Medium animals (dog), Large livestock (cattle) | Small pets (cat), Medium animals (dog), Large livestock (cattle) |
Standard Package
Main unit | 1 unit | Recording paper | 1 pc ( 112mmx27m ) |
Veterinary patient cable with electrodes | 1 unit
| Fuse
| 2 pcs
|
Grounding cable | 1 unit | Power cord | 1 pc |
Paper axis | 1 unit | Operation manual | 1 pc |
| | |
|
|
Patient Cable & Electrodes | Thermal Paper & Paper Axis | Adapter & Power Cord | Grounding Cable | Optional PC ECG Software |
FAQ
Q1: Can both models print ECG reports directly?
A: Yes, both IVT-660A and IVT-660B come with built-in thermal printing systems, supporting instant printing of ECG waveforms and auto-analysis results without an external printer.
• IVT-660A: 3-channel print, 80mm thermal paper
• IVT-660B: 6-channel print, 112mm wide thermal paper
Additionally, both support connecting external laser printers via USB/UART ports to print stored cases.
Q2: What animals are these ECG machines suitable for?
A: Standard 7-lead veterinary design, applicable to small animals (cats), medium animals (dogs), large livestock (cattle, sheep, pigs, horses). Fit pet hospitals, livestock farms and veterinary clinics.
Q3: How many ECG records can the device store? Can storage be expanded?
A: Both models store up to 250 ECG cases by default. An optional internal SD card can expand storage capacity. Data can be exported to U disk for backup.
Q4: Is the battery removable? How long is the continuous working time?
A: Built-in rechargeable lithium-ion battery, non-detachable. Full charge supports up to 9 hours continuous operation without mains power.
Q5: Does it come with software for PC analysis?
A: PC ECG management software is optional, not included in standard package. The software supports waveform viewing, report editing, data archiving and batch printing on computer.
Q6: What anti-interference functions does the machine have?
A: Equipped with multi digital filters: 50/60Hz AC filter, 25/45Hz EMG muscle filter, adaptive 0.15Hz anti-drift filter, plus automatic baseline adjustment. Effectively reduce interference caused by moving animals.
