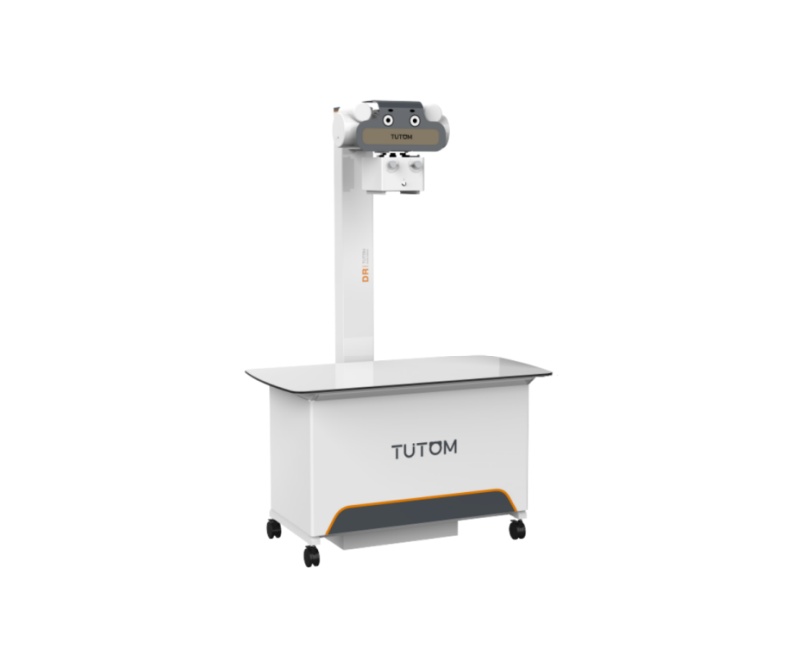

WMV-TUTOM100E-32S(32KW)Veterinary Digital Diagnostic Radiography System
Share:
PRODUCT DETAILS
Large-size Flat Panel Detector
Self-developed 17 x 17 inch flat panel detector, covering a wider Shooting range for superior imaging.
Built-in Design of Energy-storage High Voltage Generator
Supports single-phase input voltage, and saves floor
Split Design of Rack and Table;Space Saving and Easy to Install
Adopts split design of rack and table, facilitating easy movements and saving space.
Integrated Console (Standard)
The easy-to-use console can realize startup, shutdown and manual exposure.
| Item | Technology Parameter | |
| Generator | Model | TUTOM50-MHG P32 |
| Power source condition | Single phase, 220VAC | |
| Output power | 32KW | |
| Tube voltage | 40~125KV | |
| Tube current | 10mA~400mA | |
| Loading time | 1~6300ms | |
| Current time product | 0.1~80mAs | |
| Nominal output power | 32KW(100kV,320mA,0.1s) | |
| Instantaneous power | 2.5KVA | |
| Tube | Model | Toshiba E7239X |
| Maximum X-ray Tube Voltage | 125KV | |
| Nominal focal spot value | Small Focus 1.0mm Large Focus 2.0mm | |
| Rotation speed | 2700rpm@50Hz 3200rpm@60Hz | |
| Target anode angle | 16° | |
| Permanent Filtration | 0.9 mm Al@75kV | |
| Anode Heat Content | 100 kJ (140 kHU) | |
| X-ray Tube Assembly Heat Content | 900 kJ (1250 kHU) | |
| Weight | 16 kg | |
| Detector | Model | SONTU50-4343S-C |
| Scintillator | Csi | |
| Image Sensor | a-Si(Amorphous Silicon) TFT | |
| Active area size | 428×428mm (17"×17") | |
| Active area pixel | 3072×3072 Pixels | |
| Pixel size | 140 μm | |
| Spatial resolution | 3.4 Lp/mm | |
| A/D Conversion | 16bits | |
| DQE | ≥62% | |
| Imaging time | 5 S | |
| Preview time | 3 S | |
| Ingress protection | IPX4 | |
| Workstation Computer | CPU | I3 |
| RAM | 4G | |
| Hardware Drive | 1 TB | |
| OS | Windows 10 professional edition | |
| Screen size | 23 inches | |
| Resolution | 1920×1080 | |
| DROC Software | Imaging Processing | Exposure dose display&adjustment |
| Zoom in/out, Rotation and Mirror | ||
| Image Stitching | ||
| Support VHS, TTA, TPLO and HD function | ||
| Data interface and transmit | DICOM 3.0 standard | |
| Support export PNG format Image | ||
| Table | Column Height | 1920mm ± 5% |
| SID | 1050mm ± 5% | |
| Table size (length * width) | 1200*650mm | |
| Height of table to the ground | 730mm | |
| Load bearing | 60kg | |
| Table movement | Separable movement of the table. Four casters with pedal brake. | |
| Pedal Exposure Break | Optional | |
| Exposure Control Box | Standard | |
