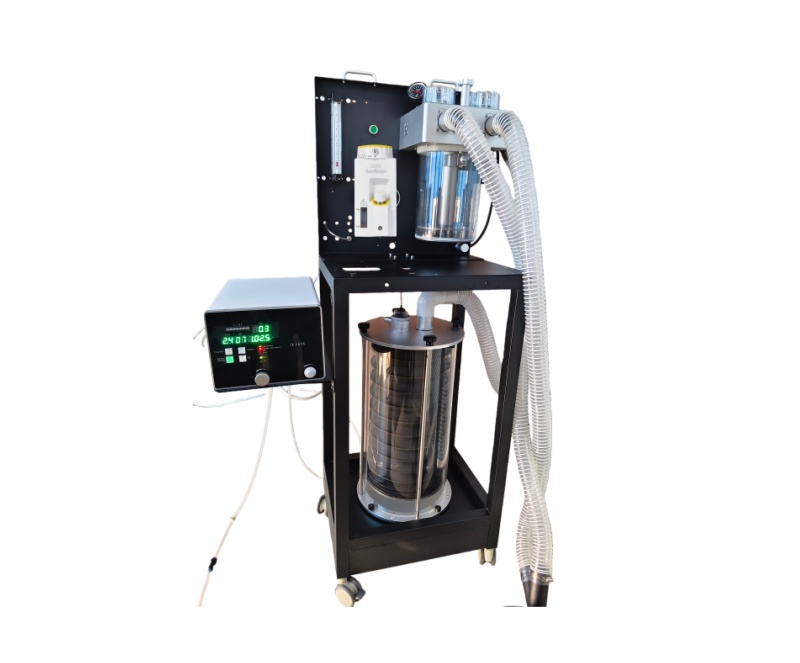

Large Vet Anesthesia Machine with Ventilator Model:IVT-7900A/IVT-560G
PRODUCT DETAILS
Anesthesia Machine IVT-7900A

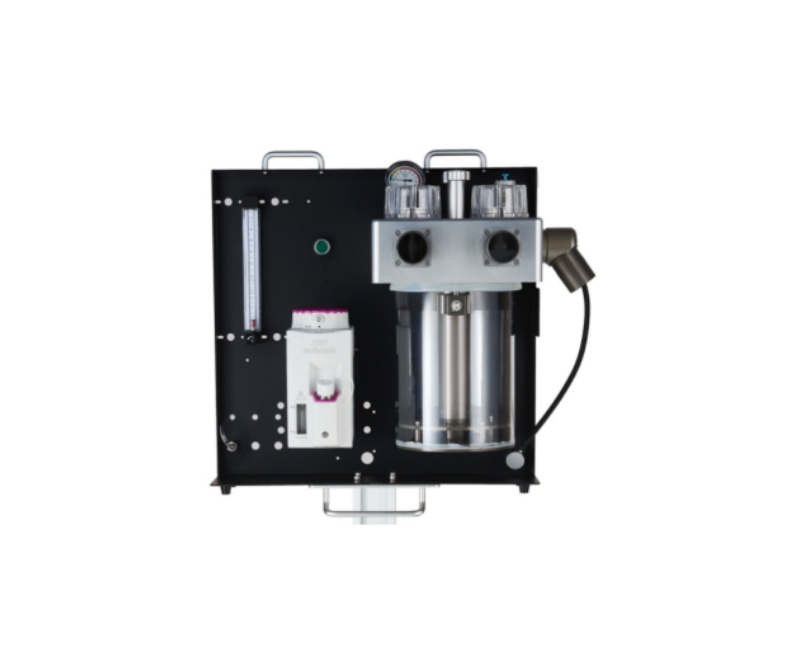

IVT-7900A Large Animal Anesthesia Machine
IVT-7900A model is the first large animal anesthesia machine designed and produced from China. In China, only our company research, design and produce this type machine now.
JX7900A model is an excellent large animal anesthesia machine. It is specially used for large animal, like horse, cow, tiger, pig etc. It can be used in farm, zoo, wild animal zoo, forest park, animal research center and so on.
Technology Specification:
Inspiration mode: open mode, closed mode, semi-open and semi-closed mode
Gas source:O2,0.3--0.4Mpa
O2 Flush valve:25L/min--75L/min
Flow meter: high precision O2 flow meter, 0 --10L/min, O2&N2O or O2&N2O two tubes flow meter is option.
CO2 circle absorber: with soda lime chamber, Pop off valve, airway pressure gauge, inspiration valve and expiration valve, the inspiration and expiration valve is demo-type and visible.
Airway pressure gauge: -20cmH2O--100cmH2O &-2Kpa--10Kpa
Soda lime chamber:8Liter, it is easy to change soda lime and used for over 1000kg animal.
Bains connector: it is used for open breath circuit, connect with Jackson breath circuit or bains breath circuit.
Anesthesia vaporizer: TEC3 vaporizer. Enflurane, Isoflurane,Halothane,Sevoflurane, one vaporizer with selectatec compatiable mounting bar, Cage mounting vaporizer is compatiable.
A handle on the top
Standard configuration:
Anesthesia machine, one unit X60 anesthesia vaporizer, one set breath circuit, one unit 30L airbag, one unit O2 gas source pipeline. Trolley is optional.
Packing information:
Main unit with X60 anesthesia vaporizer:68*68*70cm, gross weight:48kg
Trolley: 133cm*56cm*18cm, gross weight:30kg

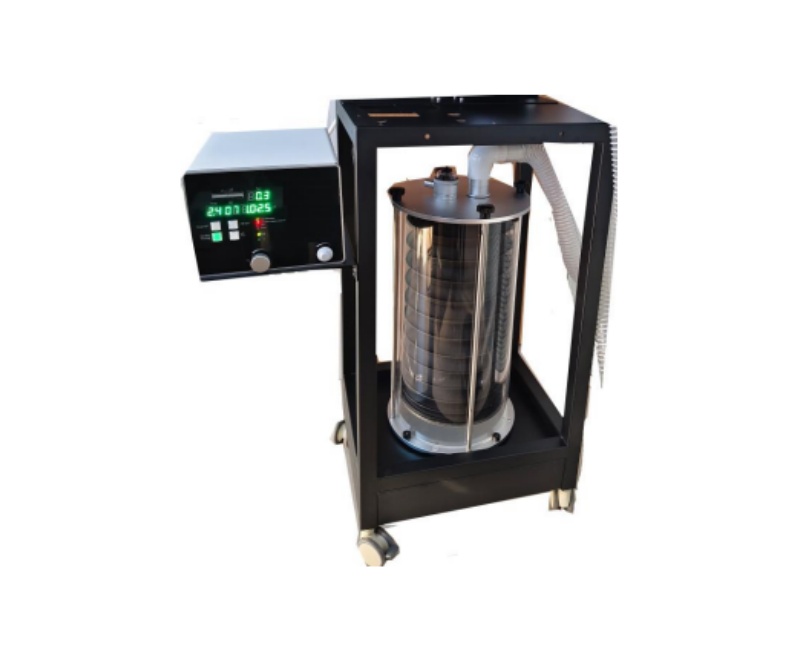

Anesthesia Ventilator IVT-560G
IVT-560G anesthesia ventilator is a pneumatic and electrically controlled device mainly used for larger animals.

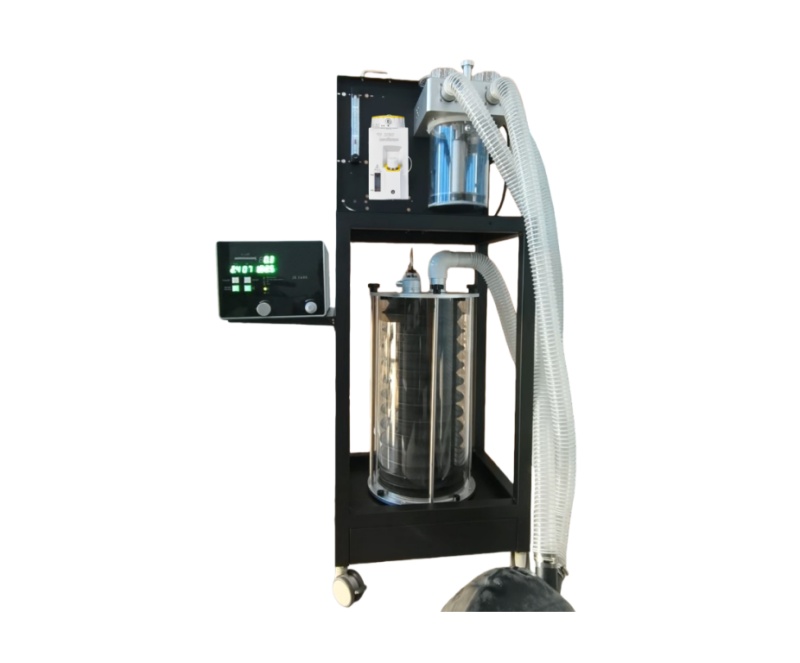

This device can be used in conjunction with an anesthesia machine to form an anesthesia workstation, which can provide mechanical ventilation support during the anesthesia process of larger animal surgeries.
This device is expected to be used in conjunction with an anesthesia machine to form a simple anesthesia workstation that can provide mechanical ventilation support for animals during surgery.
The expected weight range for animals that can be used with this device is 60-1000kg.
Operator: Trained professional animal anesthesia medical personnel.
Work environment: Operating rooms in animal hospitals, laboratories of related research institutions, and other places.
Contraindications: There are no clear contraindications for this device.
This device consists of a main body, a bellows, and a ventilator.
The main body is the main supporting component of the equipment, used for installing ventilators and bellows.
The bellows of this device is a high-capacity bellows designed for large animals, with a capacity of up to 20L, which can provide anesthesia and respiratory support for most animals.
The ventilator part of this device is a device used to provide mechanical ventilation control. The ventilator is of pneumatic and electronic control type, and the tidal volume can be adjusted within a range of 1-20L.
Specification
| Item | Specification |
| Storage and Transportation Environmental Specifications | |
| Temperature | -10~60℃ |
| Humidity | 10%~95% RH, non-condensing |
| Atmospheric Pressure | 50~106kPa |
| Operating Environmental Specifications | |
| Temperature | 10~40℃ |
| Humidity | 15%~95% RH, non-condensing |
| Atmospheric Pressure | 70~106kPa |
| Electrical Specifications | |
| Input power of equipment | 100~240VAC |
| Power | ＜100VA |
| Battery | lithium battery，DC12V，2600mAh； ≥90 minutes (powered by new fully-charged battery under the typical condition) |
| Pneumatic Specifications | |
| Driving Type | Pneumatic electronic control |
| Gas supply | 0.35~0.6MPa |
| Peak flow | ≥400L/min@0.35MPa |
| Mode | IPPV |
| Tinsp Setting | 0.2~10s |
| Respiratory Rate Setting | 2~80 /min |
| Tidal Volume adjusting | 1~20L |
| Paw | 0~99cmH2O |
| PEEP | When the PEEP is greater than or equal to 5cmH2O, the POPOFF valve releases pressure |
| Bellows | 20L |
| Alarm Specification | |
| Low gas supply pressure | When the gas supply pressure is lower than 0.35MPa |
| AC fault alarm | When AC power is not connected or AC power fails |
| Inverse ratio ventilation alarm | When the setting of I:E is inverse ratio ventilation, the inverse ratio ventilation indicator light is on |
| Low battery level alarm | When battery level is low |
| Device specification | |
| Size | 22×27×48（cm）（Only ventilator） 110×85×45（cm）（The ventilator is located on the left side+bellows） 127×55×45（cm）（The ventilator is located at the upper part+bellows） |
 |  |  |
| Anesthesia Vaporizer | Reusable breath circuit | Reusable breathing bag 15L or 30L |
