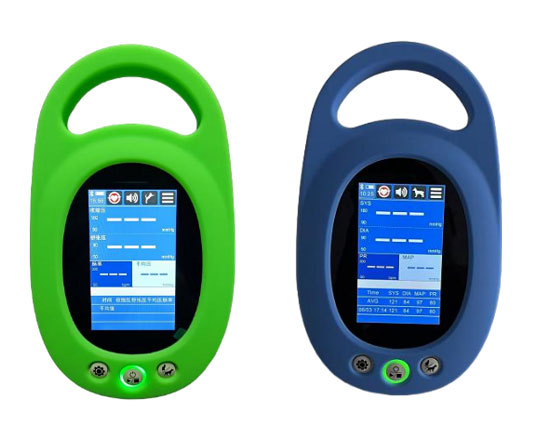

Electronic Sphygmomanometer
This is an Electronic Sphygmomanometer that can measure blood pressure for animals.The device features in full-automatic measurement,high-definition color LCD displav and strona visibility.
It has inlegrated parameter measure. display and record output in one device, and it adoots data review interface such as "data list", "trend chart", "big font" with easy and simple operation. It can be applied to routine test of family pets, animal hospital, clinic and farm, etc.
PRODUCT DETAILS
Features:
● High-definition color LCD display, strong visibility.
● Data storage function, up to 100 groups of data can be stored, by which measured data can be reviewed.
● One-touch operation, automatic BP measurement, adopts
Oscillometric multistep deflation measurement method,
good repeatability. When measurement error happens, device will prompt error message.
● Physiological alarm function, alarm limits can be set the alarm limits.When blood pressure is higher than the high limit or lower than the low limit, the alarm will occur. Alarm switch can be set.
● Supply two kinds of units: Kpa/mmHg, which can be set as user’s need. Audial and visual prompt when power is low.
With short-time power storage function, when replacing the battery, the clock time function can't be affected.
● Three cuff mode: large, medium, small. User can choose corresponding cuff and cuff mode according to different body type of animals.
● Store measured results with date and time.
● Function of automatic power-off.
Performance
BP:
● Measurement method: Oscillometric method
● Measurement range: 0kPa (0mmHg) ~ 38.67kPa(290mmHg)
● Resolution: 1mmHg
● Accuracy: Static pressure: ±0.4kPa(±3mmHg)
● Inflation: automatic inflation by force pump
● Deflation: automatic multistep deflation
Display: 2.8* color LCD screen
Power: four “AA” batteries/5V or 6V power adapter
Safety: class Il device type BF applied part
Accessories
● Cuff (optional size)
● User manual
● Power adapter (optional)
Storage environment
● Temperature:-20℃~+55℃
● Relative humidity:≤95%
● Atmospheric pressure:700hPa-1060hPa
Physical characteristic
● Dimension: 130mm(L) x110mm(W)x 80mm(H)
● Weight:300g (without battery)
Operational environment
● Temperature:5℃-40℃
● Relative humidity:15%-80%
● Atmospheric pressure:700hPa1060hPa
SPECIFICATIONS
FAQ:
Q1: What species is the Electronic Sphygmomanometer compatible with?
The monitor is versatile and optimized for a wide range of species. It features dedicated software modes for small animals (like cats and toy breeds) and large animals (such as large dogs or livestock), ensuring the cuff inflation and measurement sensitivity are perfectly tuned for each patient.
Q2: Can the device be used for long-term monitoring in the ICU?
Yes. Unlike standard spot-check devices, the Electronic Sphygmomanometer supports a dedicated "Monitor Mode" specifically designed for continuous blood pressure tracking in ICU and emergency treatment scenarios.
Q3: How does the device alert staff to abnormal readings?
The monitor is equipped with both integrated visual and audio alarms. If a patient's blood pressure or pulse rate falls outside the preset safe range, the system will immediately alert clinical staff for intervention.
Q4: Is it easy to transfer data for patient records?
Absolutely. We offer three flexible ways to export data: USB connection, Bluetooth, or WiFi. This allows your clinic to go paperless and maintain accurate electronic medical records (EMR) for up to 50 different patients.
Q5: How portable is the unit for field use?
The unit is exceptionally lightweight at just 0.59kg and features a built-in rechargeable battery. This makes it an ideal tool for mobile vets or for moving quickly between different exam rooms in a large hospital.
Q6: What is included for device protection?
Every Electronic Sphygmomanometer comes with a high-quality, detachable rubber case. This case provides impact resistance and is available in multiple colors, allowing clinics to color-code equipment or match their brand aesthetic.
