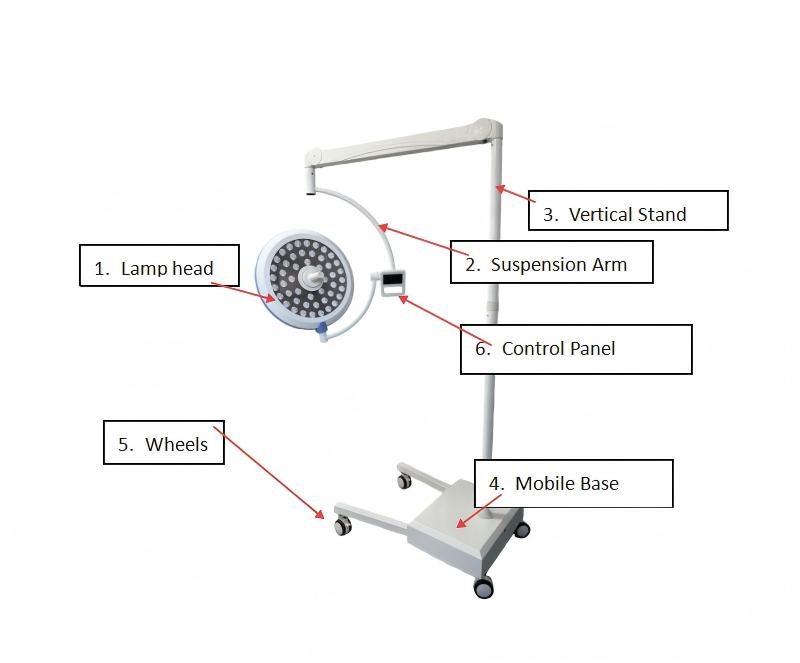

What is Veterinary Surgical Lamp?
1. Lamp Head (Light Dome)
The large circular top portion that houses the LED light source. It provides focused, shadow-free illumination over the surgical field.
2. Support Column (Vertical Stand)
The main vertical structure that supports the entire lamp system. It provides height stability and structural balance.
3. Spring Arm / Suspension Arm
The adjustable arm connecting the lamp head to the main support. It allows smooth vertical and horizontal movement while maintaining stable positioning.
4. Control Panel / Touch Controller
This is where users adjust brightness, color temperature, and modes (e.g., R9 mode).
5. Casters (Wheels)
Located under the base. These allow easy movement of the lamp and with locking mechanisms to secure the lamp in place during use.
6. Mobile Base
The bottom platform that supports the entire unit. Designed for stability and mobility within operating rooms.
| Diameter:500mm |
| LED Quantity: 48 |
| Center Illuminance: 40-160klx |
| Color Temperature 3500K-5000K |
| Color Render index: Ra≥95 |
| Average Bulb Life: > 50000 hours |
| 4.3 Inch LCD Touch Screen Controller |
| 10 level adjustable illuminance |
| 10-level adjustable color temperature |
| R9（Red-Green) mode |
| Endo Mode |
Veterinary Surgical Lamp Advantages
1. Generous Illumination Diameter
Designed with a broad 500 mm diameter, this surgical LED lamp provides extensive coverage over the operating field, ensuring uniform lighting with minimal shadows. Surgeons can rely on consistent visibility for precise, high-stakes procedures.
2. High-Performance LED Array
Equipped with 48 imported high-efficiency LED beads, the lamp delivers bright, stable, and even illumination. The multiple LED sources ensure no dark spots, enhancing surgical accuracy and reducing eye fatigue.
3. Light Source
The lamp uses LED cold light, meaning it produces minimal heat, which is safer for surgical areas. Imported Osram LEDs ensure high reliability, energy efficiency, and a long lifespan.
4. Long-Lasting Performance
The durable LED light source provides over 50,000 hours continuous use, reducing maintenance costs and downtime. Reliable performance ensures consistent operation for years of surgical procedures.
5. Direct Lens Irradiation
The lamp’s light passes directly through a lens rather than reflecting off a mirror. This design reduces light loss, ensures a uniform beam, and avoids multiple reflections that can cause glare or uneven lighting.
6. Lamp Shell Material
The lamp shell is made of aluminum alloy, which is excellent for heat dissipation. The eco-friendly powder coating prevents corrosion, ensures durability, and maintains a clean, professional appearance.
7. Immediate Response
The lamp turns on immediately without requiring a warm-up period. This feature ensures readiness for emergency surgeries or sudden lighting adjustments.
8. Suspension System
The lamp is mounted on a lightweight balance arm suspension system that allows smooth movement and stable positioning. The 540° design enables adjustment to any height or angle required during surgery.
9. Intuitive Touchscreen Control
4.3-Inch LCD Touch Controller. A sleek 4.3-inch LCD touchscreen offers user-friendly operation. Surgeons and staff can effortlessly adjust brightness, color temperature, and specialized modes, ensuring optimal lighting with minimal distraction.
10. Multi-Level Illuminance Adjustment
Level Brightness Control 40,000 – 160,000 Lux The lamp offers ten brightness settings, enabling fine-tuned control of illumination for different surgical needs. This precision reduces eye strain and enhances clarity under all operating conditions.
11. Advanced Color Temperature Selection
10-Level Adjustable Color Temperature 3500K – 5000K Multiple temperature levels allow surgeons to match lighting to specific tissues or surgical preferences. This feature improves visual contrast and comfort, making long procedures more manageable.
12. One-Key Endoscopy Function
The lamp can instantly switch to endoscopic lighting mode with one button. This feature provides specialized illumination for endoscopic procedures without additional equipment, improving efficiency in the operating room.
13. Enhanced Tissue Visualization
The R9 mode emphasizes red and green tones, providing enhanced differentiation of blood vessels, muscles, and tissues. This improves critical visual cues, aiding surgical precision and safety.
